74406 (ZX 440) - Toro 44" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

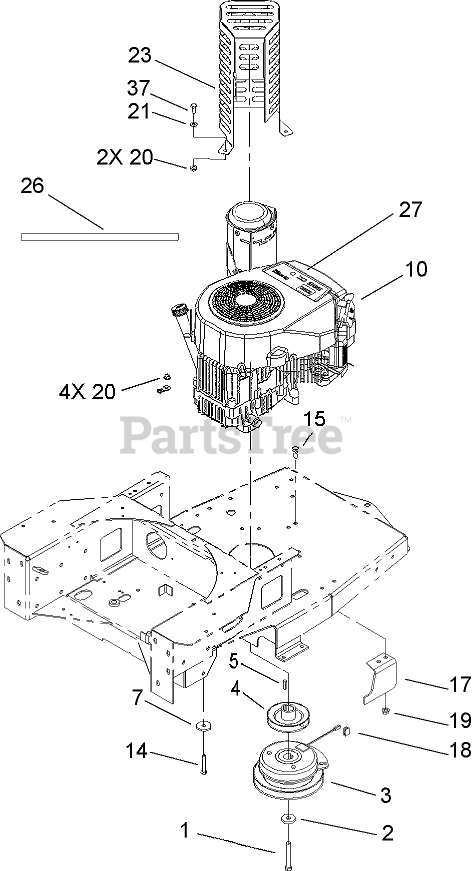

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-12

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

2

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

3

Toro 108-9512

CLUTCH-PTO, ELECTRIC

$

$

Not available

4

Toro 100-7314

PUMP DRIVE PULLEY ASM

$192.99

$

Usually ships in 3-6 days

0

5

Toro 5-7280

KEY

$5.49

$

In Stock, only 1 left!

0

7

Toro 62-7190

SPACER-STEEL

$4.99

$

Usually ships in 3-6 days

0

10

ENGINE-KAWASAKI, FH541V-CS50

Note: Not serviced separately

$

$

Not available

10

ENGINE-KAWASAKI, FH541V-CS50

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

14

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

15

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

17

Toro 104-3613-03

STOP-CLUTCH

$

$

Not available

18

Toro 98-5023

BUMPER

$6.99

$

Usually ships in 3-6 days

0

19

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 110-1886-03

MUFFLER GUARD ASM

$

$

Not available

26

Toro 106-7022

TUBE-DRAIN, OIL

$8.99

$

In Stock, only 1 left!

0

27

Toro 107-9246

DECAL

$

$

Not available

37

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
