74406 (ZX 440) - Toro 44" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) 44IN DECK ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

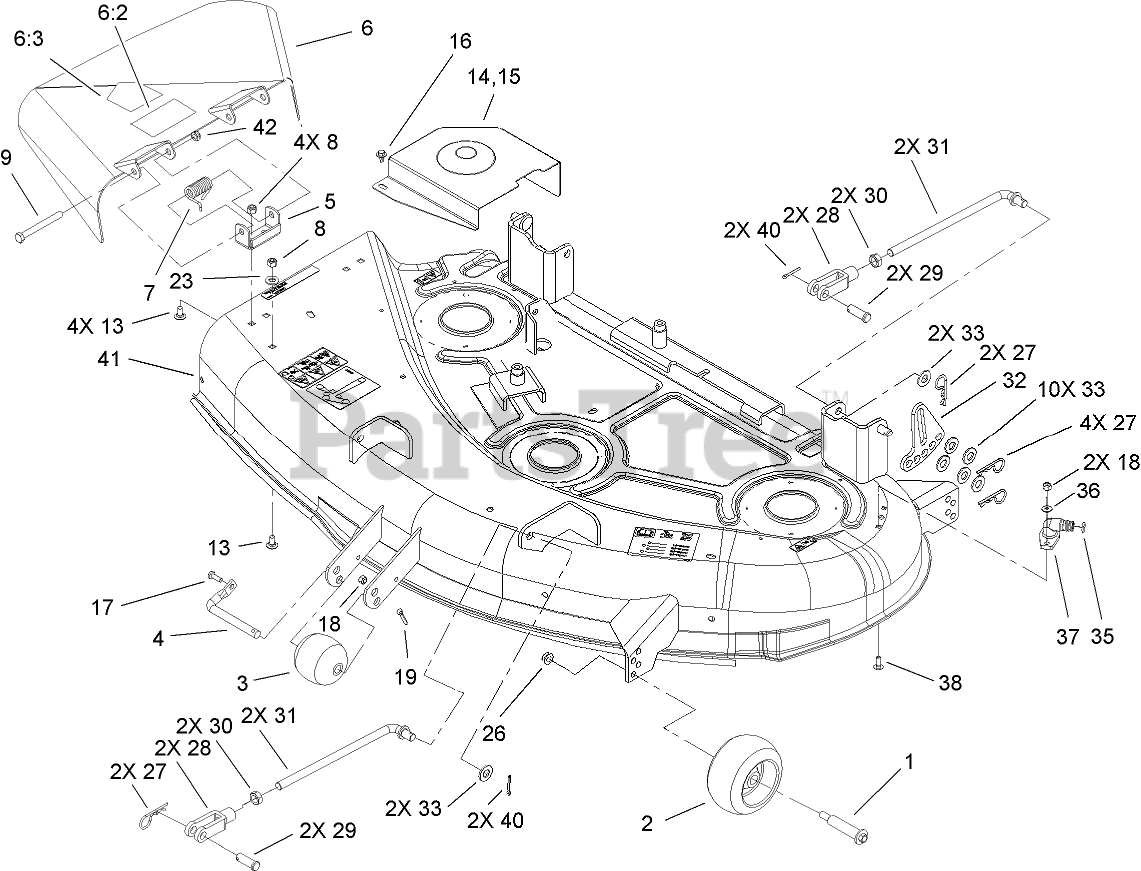

44IN DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

2

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

3

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

4

Toro 118960-03

Shaft-Roller

$43.99

$

In Stock, only 3 left!

0

5

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

6

Toro 98-5049

DEFLECTOR ASM

$

$

Not available

6:2

Toro 93-7317

DECAL-DANGER

$

$

Not available

6:3

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

7

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

13

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

14

Toro 108-9561-03

COVER-BELT, LH

Note: Not illustrated

$

$

Not available

15

Toro 108-9560-03

COVER-BELT, RH

$

$

Not available

16

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

19

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

27

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

28

Toro 100-7338

CLEVIS

$60.99

$

In Stock, only 3 left!

0

29

Toro 104-3634

PIN-CLEVIS

$20.99

$

In Stock, only 2 left!

0

30

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

31

Toro 104-8047

ROD-TRUNION
(Superseded to 131-3945)

$43.99

$

In Stock, only 2 left!

0

32

Toro 104-3699-01

LINK-HOC, ADJUSTING

$72.99

$

In Stock, only 2 left!

0

33

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

36

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

38

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

40

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

41

Toro 112-9833

44 INCH DECK ASM

$

$

Not available

42

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0
