74406 (ZX 440) - Toro 44" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) MAIN FRAME ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

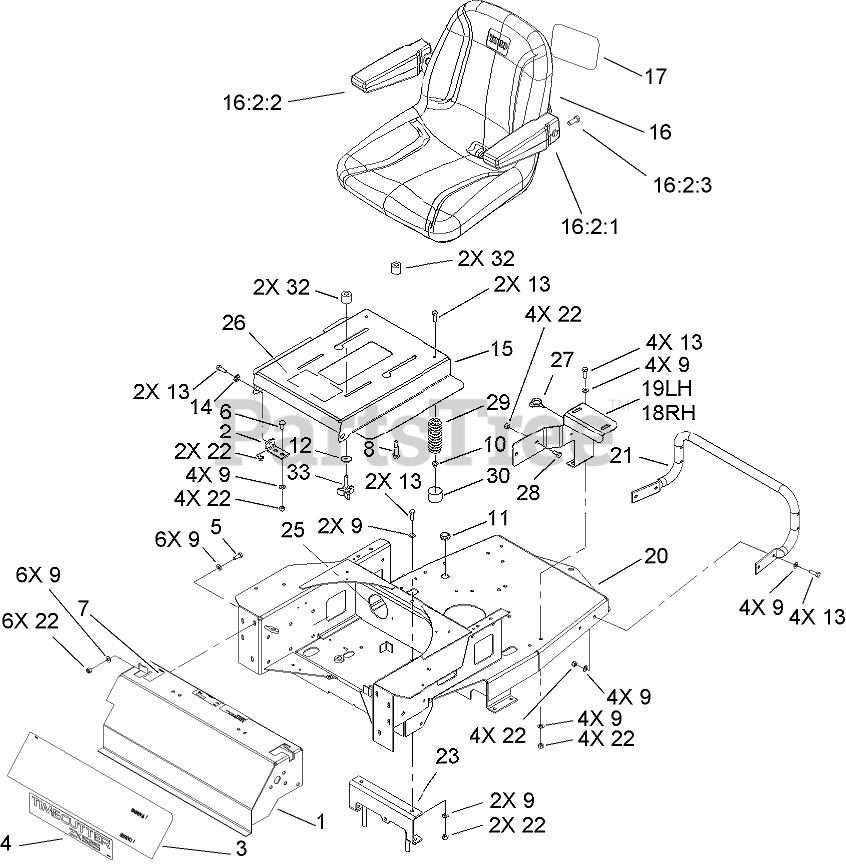

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8040-03

CONSOLE

$562.99

$

Usually ships in 3-6 days

0

2

Toro 104-8057-03

BRACKET-PIVOT

$

$

Not available

3

Toro 107-2482

DECAL-DANGER

$

$

Not available

4

Toro 108-7130

DECAL

$

$

Not available

5

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Toro 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

8

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

11

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

12

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

15

Toro 108-9572-03

SEAT PAN ASM

$391.99

$

Usually ships in 3-6 days

0

16

Toro 106-6447

SEAT (WITH ARM RESTS)

$757.99

$

In Stock, only 1 left!

0

16:2:1

Toro 108-6177

LH ARMREST ASM
(Superseded to 108-6163)

$

$

Not available

16:2:2

Toro 108-6178

RH ARMREST ASM
(Superseded to 108-6163)

$

$

Not available

16:2:3

Toro 108-6179

SCREW-HSBH

$13.99

$

Usually ships in 3-6 days

0

16:1

Toro 108-2329

SEAT
(Superseded to 119-8829)

Note: Not illustrated

$360.99

$

Usually ships in 3-6 days

0

16:2

ARMREST KIT

Note: Not serviced separately

$

$

Not available

17

Toro 93-7340

DECAL

$55.99

$

Usually ships in 3-6 days

0

18

Toro 100-7376-01

BRACKET-RH

Note: Not illustrated

$

$

Not available

19

Toro 100-7368-01

BRACKET-LH

$

$

Not available

20

Toro 108-2310-01

REAR FRAME ASM

$

$

Not available

21

Toro 100-7332-03

ROD-SUPPORT, REAR

$159.99

$

Usually ships in 3-6 days

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 105-6987-03

BRACKET

$

$

Not available

25

Toro 105-1854

COVER-CONDUIT

$

$

Not available

26

Toro 107-2474

DECAL-SERVICE

$

$

Not available

27

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

29

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

30

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

32

Toro 108-2327

SPACER

$2.49

$

Usually ships in 3-6 days

0

33

Toro 108-2356

KNOB

$21.99

$

Usually ships in 3-6 days

0
