74406 (ZX 440) - Toro 44" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) 44IN DECK BELT DRIVE ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

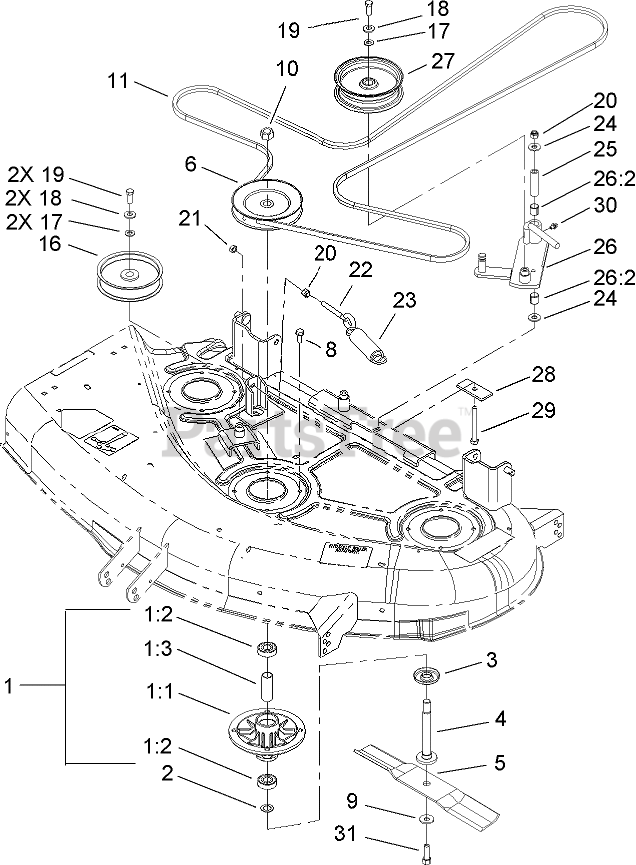

44IN DECK BELT DRIVE ASSEMBLY Parts Diagram

  • Title
1

Spindle ASM

Note: Not serviced separately

$

$

Not available

1:1

Toro 88-4510

HOUSING-SPINDLE

$106.99

$

In Stock, Qty 7

0

1:2

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

1:3

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 15

0

2

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 12

0

3

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

4

Toro 80-4341

SHAFT-SPINDLE

$50.99

$

In Stock, only 1 left!

0

5

Toro 92-7952-03

BLADE-RECYCLER

$37.99

$

In Stock, only 1 left!

0

6

Toro 105-6973

Pulley ASM

$124.99

$

In Stock, only 1 left!

0

8

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

9

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

11

Toro 105-6977

BELT V

$227.99

$

Usually ships in 3-6 days

0

16

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 6

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

18

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

19

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

21

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

22

Toro 94-2547

BOLT-EYE

$27.99

$

Usually ships in 3-6 days

0

23

Toro 105-6992

SPRING-EXTENSION

$31.99

$

Usually ships in 3-6 days

0

24

Toro 1-809107

WASHER-HARDENED

$5.49

$

In Stock, only 2 left!

0

25

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

26

Toro 105-7010

IDLER ARM ASM

$

$

Not available

26:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

27

Toro 99-8912

PULLEY-IDLER, FLAT
(Superseded to 116-4669)

$79.99

$

In Stock, Qty 5

0

28

Toro 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

29

Toro 104-8037-03

PLATE-BOLT, RETAINER

$6.49

$

Usually ships in 3-6 days

0

30

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

31

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0
