74405 FR (18-52 ZX) - Toro 52" TimeCutter Zero-Turn Mower (SN: 240010001 - 240999999) (2004) 52 INCH DECK ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

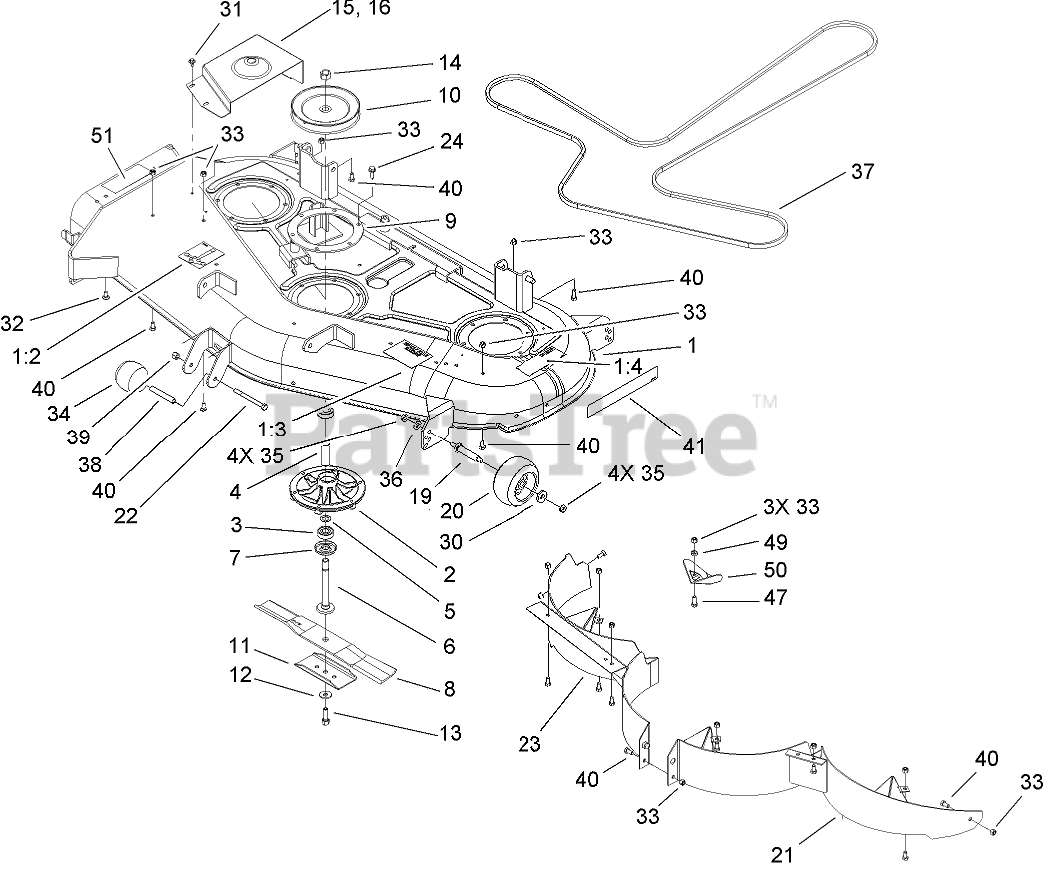

52 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 106-7021

Deck ASM
(Superseded to 108-8573)

$

$

Not available

1:2

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 1 left!

0

1:3

Toro 99-8939

DECAL-ANTI SCALP

$25.99

$

Usually ships in 3-6 days

0

1:4

Toro 93-7317

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

2

Toro 107-1739

HOUSING-SPINDLE

$80.99

$

In Stock, only 1 left!

0

3

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

4

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 15

0

5

Toro 80-4380

SPACER

$6.49

$

In Stock, Qty 12

0

6

Toro 80-4341

SHAFT-SPINDLE

$47.99

$

In Stock, only 1 left!

0

7

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

8

Toro 107-1742-03

BLADE-RECYCLER

$42.99

$

In Stock, only 1 left!

0

9

Toro 107-1743-03

RING-SUPPORT, DECK

$26.99

$

Usually ships in 3-6 days

0

10

Toro 107-1740

PULLEY AND HUB ASM

$135.99

$

In Stock, only 1 left!

0

11

Toro 80-0510-03

STIFFENER-BLADE

$17.99

$

In Stock, Qty 7

0

12

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

14

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

15

Toro 108-8532

COVER-BELT, LH

$

$

Currently unavailable

16

Toro 108-8531

COVER-BELT, RH

$

$

Currently unavailable

19

Toro 99-2842

SPACER
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 7

0

20

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

21

Toro 94-2505-03

LEFT BAFFLE ASM

$

$

Not available

22

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

23

Toro 94-2504-03

RIGHT BAFFLE ASM

$634.99

$

Usually ships in 3-6 days

0

24

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

30

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

31

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

32

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

37

Toro 106-2217

BELT-V

$137.99

$

Usually ships in 3-6 days

0

38

Toro 94-2500

TUBE-SPACER, WHEEL

$4.49

$

Usually ships in 3-6 days

0

39

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

40

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

41

Toro 107-1716

Decal-Deck

$

$

Not available

47

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

49

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

50

Toro 84-5760

PLATE-KICKER

$13.99

$

Usually ships in 3-6 days

0

51

Toro 108-8712

DECAL-DANGER, RIDER

$

$

Not available
