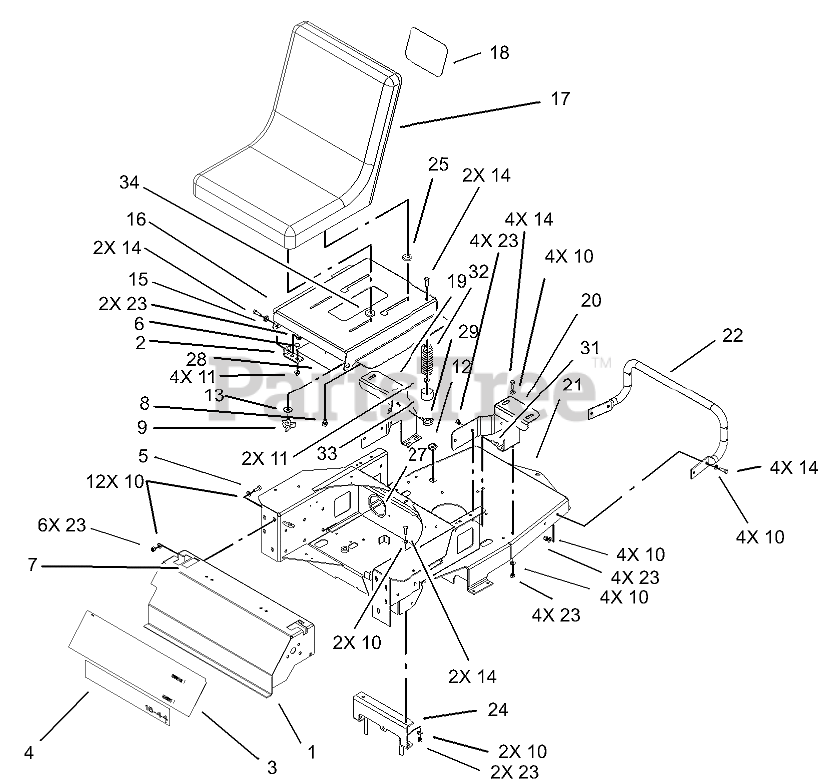

74405 (18-52 ZX) - Toro 52" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) MAIN FRAME AND SEAT ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

MAIN FRAME AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8040-03

CONSOLE

$590.99

$

Usually ships in 3-6 days

0

2

Toro 104-8057-03

BRACKET-PIVOT

$

$

Not available

3

Toro 104-8064

Decal-Console International
(Superseded to 107-2482)

$

$

Not available

4

Toro 106-2208

Decal

$

$

Not available

5

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 104-8049

SCREW-CARR

$

$

Not available

7

Toro 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 1 left!

0

8

Toro 92-6986

BOLT-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

9

Toro 106-2240

KNOB

$13.99

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 32128-25

NUT-HF

$3.49

$

In Stock, only 3 left!

0

12

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

13

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

14

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

16

Toro 104-8058-03

PAN-SEAT
(Superseded to 108-9572-03)

$411.99

$

Usually ships in 3-6 days

0

17

Toro 105-6962

SEAT
(Superseded to 119-8829)

$318.99

$

Usually ships in 3-6 days

0

18

Toro 93-7340

DECAL

$55.99

$

Usually ships in 3-6 days

0

19

Toro 100-7376-01

BRACKET-RH

$

$

Not available

20

Toro 100-7368-01

BRACKET-LH

$

$

Not available

21

Toro 105-7018-01

Frame-Rear
(Superseded to 107-2549-01)

$

$

Not available

22

Toro 100-7332-03

ROD-SUPPORT, REAR

$166.99

$

Usually ships in 3-6 days

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 105-6987-03

BRACKET

$

$

Not available

25

Toro 92-6750

SPACER-NYLON

$17.99

$

Usually ships in 3-6 days

0

27

Toro 105-1854

COVER-CONDUIT

$

$

Not available

28

Toro 104-8086

Decal-Services International

$

$

Not available

29

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

31

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 8

0

33

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 13

0

34

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0
