74403 (16-42 Z) - Toro 42" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) GOVERNOR ASSEMBLY BRIGGS AND STRATTON 286H77-0165-E1 Parts Diagram

42" TimeCutter Zero-Turn Mower

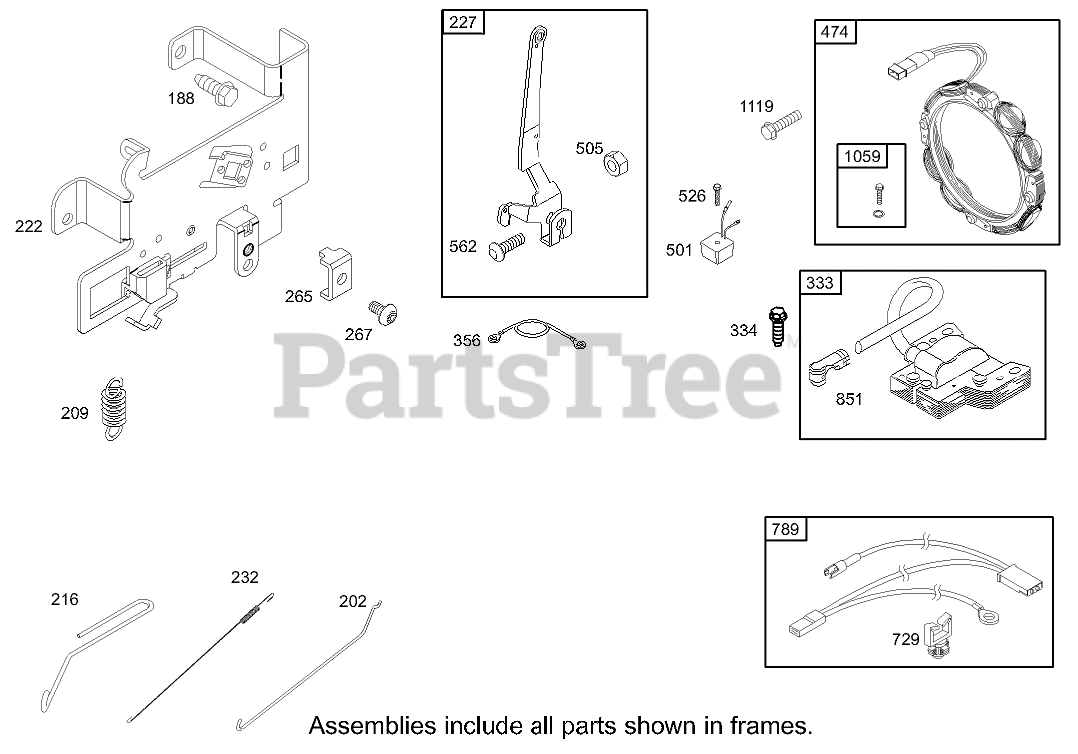

GOVERNOR ASSEMBLY BRIGGS AND STRATTON 286H77-0165-E1 Parts Diagram

  • Title

188

Briggs & Stratton 691693

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 9

0

202

Briggs & Stratton 691841

Link-Governor, Mechanical

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 17

0

209

Briggs & Stratton 692208

Spring-Governor
(Superseded to 796260)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 15

0

216

Briggs & Stratton 691840

Link-Choke

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

Spring-Link, Governor

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

Clamp-Casing

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 695134

Screw
(Superseded to 792629)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 697089

Stop-Wire

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 696457

Alternator
(Superseded to 592829)

Note: Obtain parts from www.briggsandstratton.com

$102.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

Note: Obtain parts from www.briggsandstratton.com

$101.99

$

In Stock, Qty 20+

0

501

Briggs & Stratton 691188

Regulator
(Superseded to 794360)

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

In Stock, only 2 left!

0

Briggs & Stratton 691185

Regulator
(Superseded to 845907)

Note: Obtain parts from www.briggsandstratton.com

$61.99

$

In Stock, Qty 20+

0

505

Briggs & Stratton 691251

Nut

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

526

Briggs & Stratton 697348

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 691119

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 17

0

729

Briggs & Stratton 691335

Clip?Wire

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 692037

Wiring-Harness

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 692424

Terminal?Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 13

0

1059

Briggs & Stratton 698516

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0
