74403 (16-42 Z) - Toro 42" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 286H77-0165-E1 Parts Diagram

42" TimeCutter Zero-Turn Mower

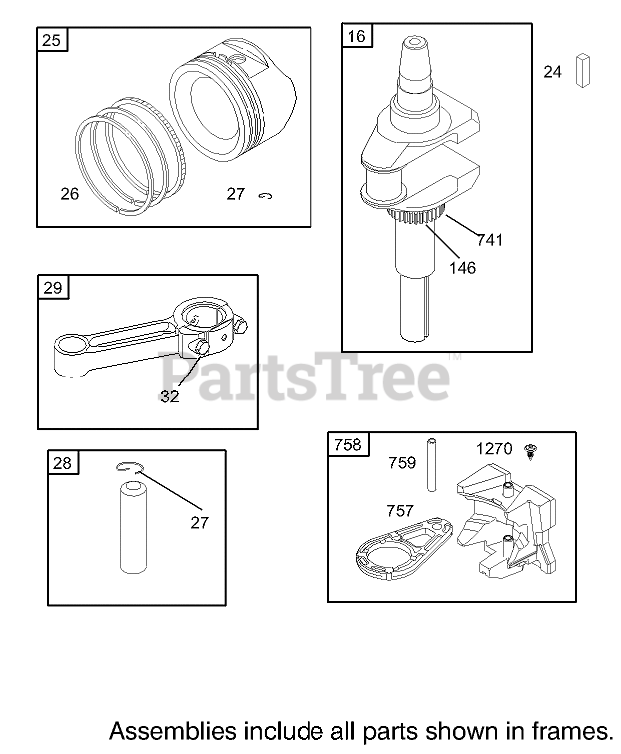

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 286H77-0165-E1 Parts Diagram

  • Title

16

Briggs & Stratton 697127

Crankshaft
(Superseded to 595339)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 697114

Piston ASM (Standard)
(Superseded to 792307)

Note: Obtain parts from www.briggsandstratton.com

$172.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 697116

Piston Assembly (.010in Oversize)

Note: Obtain parts from www.briggsandstratton.com

$75.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 697117

Piston ASM (.020in Oversize)
(Superseded to 792728)

Note: Obtain parts from www.briggsandstratton.com

$278.99

$

Usually ships in 2-12 days

0

Toro 697118

Piston Assembly (.030in Oversize)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

26

Briggs & Stratton 697115

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$56.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 697119

Ring Set (.010" Oversize)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 697120

Ring Set (.020in Oversize)

Note: Obtain parts from www.briggsandstratton.com

$255.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 697121

Ring Set (.030" Oversize)

Note: Obtain parts from www.briggsandstratton.com

$50.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 698469

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 13

0

28

Briggs & Stratton 697099

Pin-Piston (Std)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 697126

Rod?Connecting (Standard)
(Superseded to 794122)

Note: Obtain parts from www.briggsandstratton.com

$78.99

$

In Stock, only 3 left!

0

Briggs & Stratton 697263

Rod-Connecting (.020in Undersize)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

32

Briggs & Stratton 692852

Screw
(Superseded to 791118)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

146

Briggs & Stratton 691639

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 697128

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, only 1 left!

0

757

Briggs & Stratton 697607

Link-Counterweight
(Superseded to 793242)

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 697134

Counterweight
(Superseded to 793763)

Note: Obtain parts from www.briggsandstratton.com

$128.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 697392

Pin-Counterweight

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

1270

Briggs & Stratton 697156

Plug-Counterweight, AVS
(Superseded to 793243)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 4 left!

0
