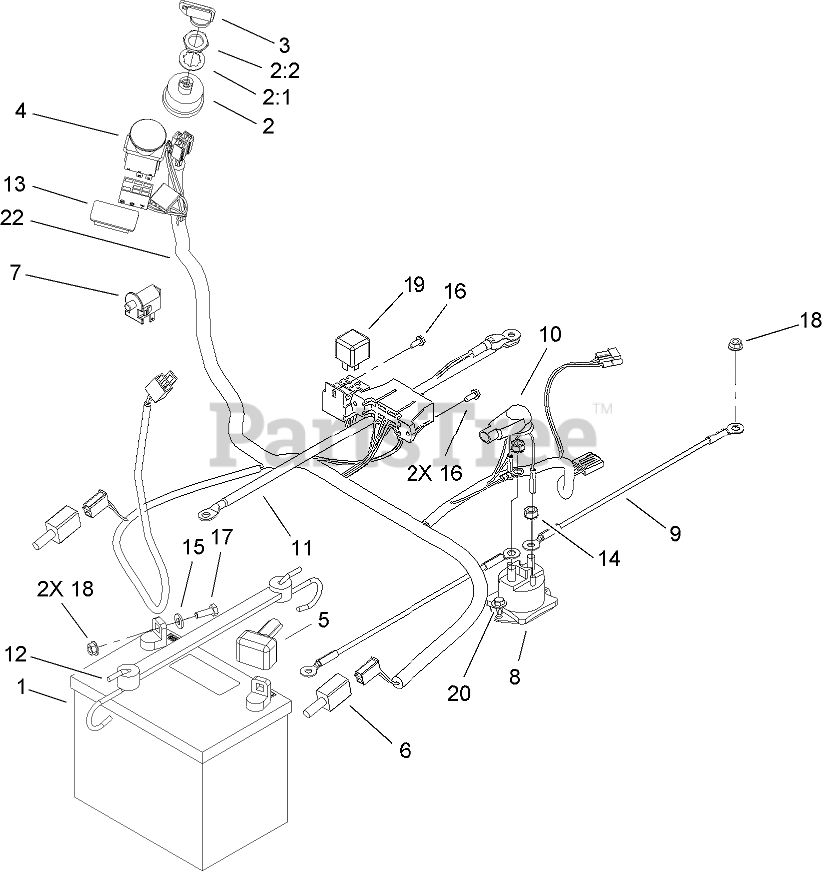

74402 (Z 380) - Toro 38" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) ELECTRICAL ASSEMBLY Parts Diagram

38" TimeCutter Zero-Turn Mower

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2491

BATTERY
(Superseded to 104-8162)

$

$

Not available

2

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 7

0

2:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

2:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

3

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 15

0

4

Toro 95-7489

SWITCH-PTO

$40.99

$

In Stock, only 1 left!

0

5

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

6

Toro 106-2216

SWITCH

$19.99

$

In Stock, only 2 left!

0

7

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

8

Toro 106-8245

SOLENOID-STARTER

$109.99

$

In Stock, only 1 left!

0

9

Toro 56-7670

WIRE ASM

$31.99

$

In Stock, only 2 left!

0

10

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$7.99

$

Usually ships in 3-6 days

0

11

Toro 95-7654

CABLE-NEGATIVE, BLACK

$51.99

$

Usually ships in 3-6 days

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

13

Toro 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

14

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, only 2 left!

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

19

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 6

0

20

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

22

Toro 108-8586

HARNESS-WIRING

$

$

Not available
