74402 (14-38 Z) - Toro 38" TimeCutter Zero-Turn Mower (SN: 240000001 - 240999999) (2004) HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

38" TimeCutter Zero-Turn Mower

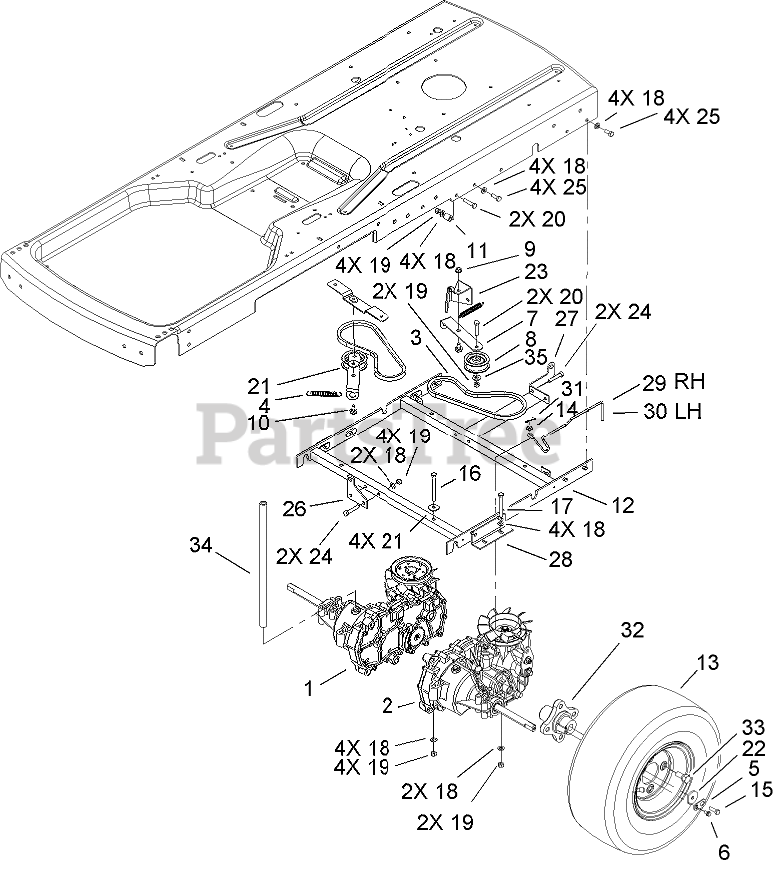

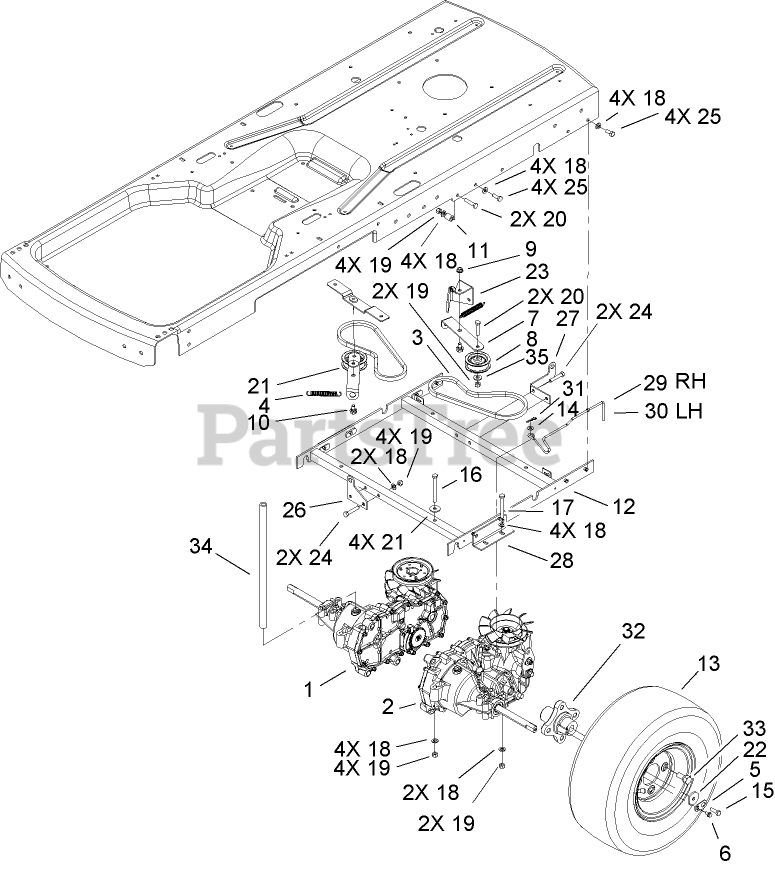

HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 107-2466

RH HYDROSTAT ASM
(Superseded to 114-8520)

$2336.99

$

Usually ships in 3-6 days

0

2

Toro 107-2465

LH HYDROSTAT ASM
(Superseded to 114-8521)

$2362.99

$

Usually ships in 3-6 days

0

3

Toro 106-2174

V-BELT

$22.99

$

In Stock, Qty 12

0

4

Toro 95-3805

SPRING

$15.99

$

In Stock, Qty 5

0

5

Toro 105-3438

TAB-LOCKING

$5.49

$

Usually ships in 3-6 days

0

6

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

7

Toro 105-7047

ARM-IDLER

$16.99

$

In Stock, only 2 left!

0

8

Toro 106-2176

PULLEY-IDLER

$33.99

$

In Stock, Qty 20+

0

9

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 7

0

10

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

11

Toro 105-1941

SPACER

$

$

Not available

12

Toro 107-2462-03

HYDRO MOUNT ASM

$

$

Not available

13

Toro 106-7003

REAR WHEEL ASM

$

$

Not available

13:99

Toro 107-2491

TUBE-TIRE

Note: Not illustrated

$88.99

$

In Stock, only 2 left!

0

14

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3210-5

SCREW-HH

$4.49

$

In Stock, Qty 5

0

16

Toro 322-20

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

17

Toro 322-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

22

106-7001

WASHER-WHEEL

$

$

Not available

23

Toro 107-1734

STOP-CLUTCH

$

$

Not available

24

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 105-7049

BRACKET-SPRING

$

$

Not available

27

Toro 105-7046

BRACKET-SPRING

$

$

Not available

28

Toro 105-7039-03

SUPPORT-HYDRO

$

$

Not available

29

Toro 107-2463

ARM-BYPASS, LH

$

$

Not available

30

Toro 107-2464

ARM-BYPASS, RH

$

$

Not available

31

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

32

Toro 106-6987-03

HUB-MACHINED
(Superseded to 108-9533)

$201.99

$

Usually ships in 3-6 days

0

33

Toro 71-4450

BOLT-LUG

$3.99

$

In Stock, only 2 left!

0

34

Toro 106-7002

VENT HOSE ASM

$79.99

$

In Stock, only 1 left!

0

35

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
