74402 (14-38 Z) - Toro 38" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) HOUSING ASSEMBLY LH HYDROSTAT NO. 105-3492 Parts Diagram

38" TimeCutter Zero-Turn Mower

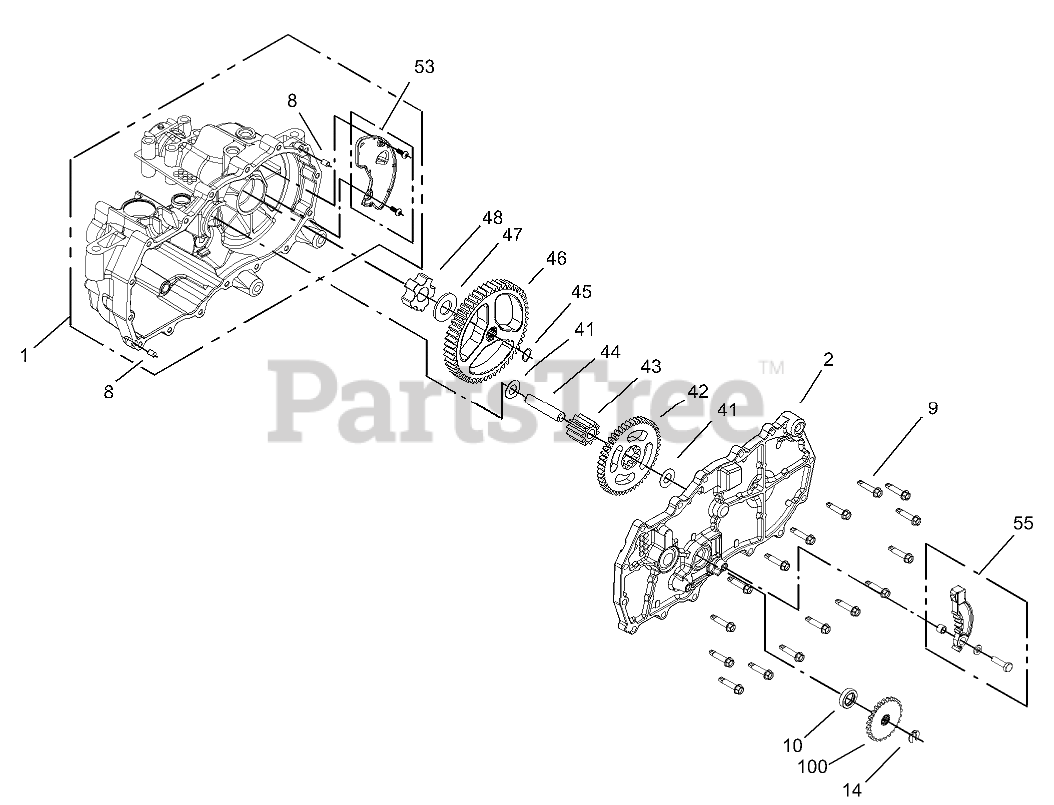

HOUSING ASSEMBLY LH HYDROSTAT NO. 105-3492 Parts Diagram

  • Title

1

Toro 106-8695

MAIN HOUSING ASM

$962.99

$

Usually ships in 3-6 days

0

2

Toro 106-8696

SIDE ASM

$678.99

$

Usually ships in 3-6 days

0

8

Toro 9004800-2506

PIN-HYDROGEAR
(Superseded to 104-2170)

$8.99

$

Usually ships in 3-6 days

0

9

Toro 104-5305

SCREW-HHF
(Superseded to 117-5359)

$3.49

$

Usually ships in 3-6 days

0

10

Toro 104-5347

SEAL-OIL

$21.99

$

Usually ships in 3-6 days

0

41

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

42

Toro 104-5317

GEAR-10T/48T

$192.99

$

Usually ships in 3-6 days

0

43

Toro 104-5318

GEAR-JACKSHAFT, 10T

$87.99

$

Usually ships in 3-6 days

0

44

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

45

Toro 104-5328

RING-RETAINING, SPIRAL

$11.99

$

Usually ships in 3-6 days

0

46

Toro 106-8684

GEAR-BULL, 52T

$

$

Not available

47

Toro 94-1943

WASHER

$6.99

$

Usually ships in 3-6 days

0

48

Toro 104-5320

BEARING-SLEEVE

$38.99

$

Usually ships in 3-6 days

0

52

Toro 106-8686

SEAL KIT

Note: Not illustrated

$195.99

$

Usually ships in 3-6 days

0

53

Toro 106-8697

EXPANSION PLATE KIT

$71.99

$

Usually ships in 3-6 days

0

55

Toro 106-8688

BRAKE ARM KIT

$41.99

$

In Stock, Qty 20+

0

58

Toro 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

100

Toro 106-8694

DISC-BRAKE, COG

$60.99

$

In Stock, Qty 14

0
