74402 (14-38 Z) - Toro 38" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) FAN AND PULLEY ASSEMBLY LH HYDROSTAT NO. 105-3492 Parts Diagram

38" TimeCutter Zero-Turn Mower

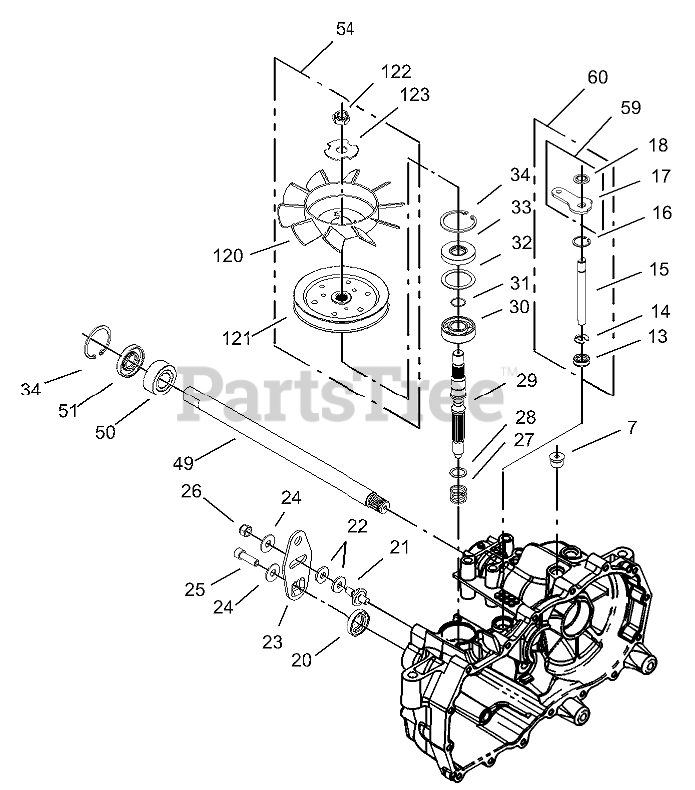

FAN AND PULLEY ASSEMBLY LH HYDROSTAT NO. 105-3492 Parts Diagram

  • Title

7

Toro 104-2189

PLUG-THREAD, STRAIGHT

$27.99

$

In Stock, only 1 left!

0

13

Toro 106-8676

SEAL-LIP
(Superseded to 139-7497)

$7.49

$

Usually ships in 3-6 days

0

14

Toro 106-8677

RING-RETAINING, EXTERNAL

$9.49

$

In Stock, only 2 left!

0

15

Toro 106-8678

ROD-BYPASS

$59.99

$

Usually ships in 3-6 days

0

16

Toro 106-8679

RING-RETAINING, INTERNAL

$10.99

$

Usually ships in 3-6 days

0

17

Toro 106-8680

Arm-Bypass

$20.99

$

Usually ships in 3-6 days

0

18

Toro 106-8681

RING-RETAINING, EXTERNAL

$9.49

$

Usually ships in 3-6 days

0

20

Toro 104-5313

SEAL-LIP

$26.99

$

In Stock, Qty 7

0

21

Toro 104-2116

STUD

$41.99

$

Usually ships in 3-6 days

0

22

Toro 105-1873

PUCK-FRICTION

$8.99

$

In Stock, only 2 left!

0

23

Toro 106-8747

ARM-CONTROL

$39.99

$

Usually ships in 3-6 days

0

24

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

25

Toro 106-8682

Screw-Sh

$9.49

$

Usually ships in 3-6 days

0

26

Toro 105-1872

NUT

$14.99

$

Usually ships in 3-6 days

0

27

Toro 106-8747

ARM-CONTROL

$39.99

$

Usually ships in 3-6 days

0

28

Toro 94-1937

WASHER-THRUST

$6.99

$

Usually ships in 3-6 days

0

29

Toro 104-5306

SHAFT-INPUT

$392.99

$

Usually ships in 3-6 days

0

30

Toro 104-5311

BEARING-BALL

$46.99

$

In Stock, Qty 5

0

31

Toro 104-5307

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

32

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

33

Toro 104-5310

SEAL-LIP

$38.99

$

In Stock, only 2 left!

0

34

Toro 104-5309

RING-RETAINING

$13.99

$

In Stock, only 2 left!

0

49

Toro 106-8685

AXLE
(Superseded to 115-5039)

$571.99

$

Usually ships in 3-6 days

0

50

Toro 104-5321

BEARING-SLEEVE, OUTBOARD

$43.99

$

Usually ships in 3-6 days

0

51

Toro 104-5322

SEAL-LIP

$40.99

$

Usually ships in 3-6 days

0

54

Toro 106-8698

Fan Pulley Kit

$138.99

$

Usually ships in 3-6 days

0

59

Toro 106-8691

Bypass Arm Kit

$

$

Not available

60

Toro 106-8692

Bypass Arm/Rod Kit

$

$

Currently unavailable

120

Toro 110-8566

FAN-6 INCH, 10 BLADE

$93.99

$

Usually ships in 3-6 days

0

121

Toro 104-1754

PULLEY

$95.99

$

In Stock, only 1 left!

0

122

Toro 105-1875

NUT-LOCK

$8.49

$

Usually ships in 3-6 days

0

123

Toro 104-2120

SCREW

$8.49

$

In Stock, only 1 left!

0
