74402 (14-38 Z) - Toro 38" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) CONTROL ASSEMBLY Parts Diagram

38" TimeCutter Zero-Turn Mower

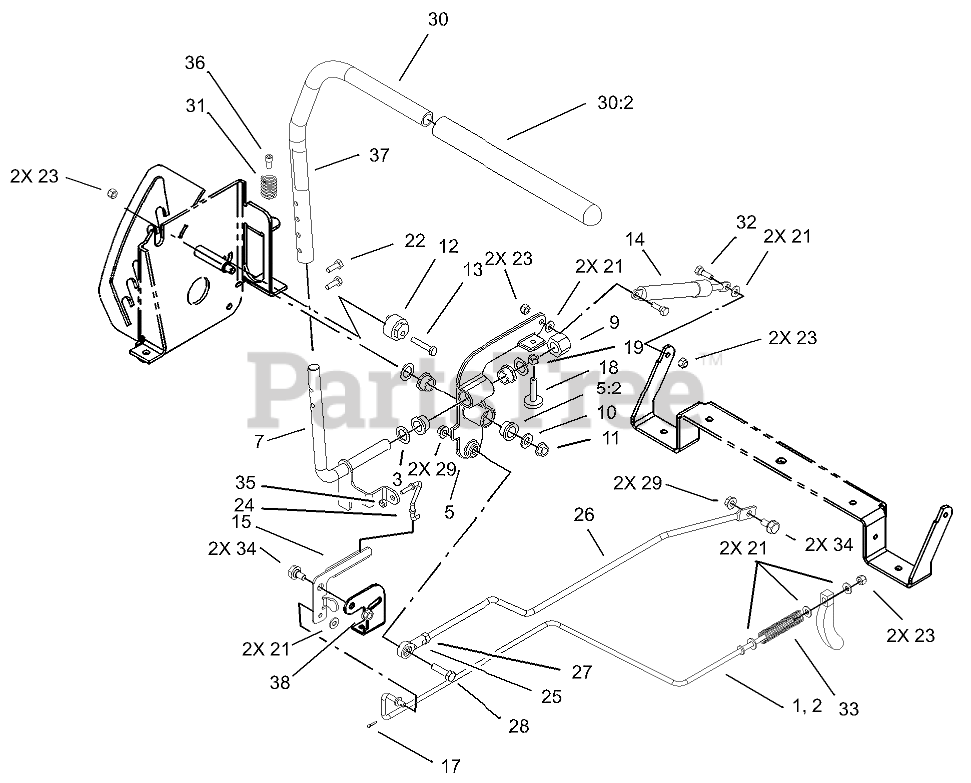

CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 105-7045

ROD-BRAKE, LH

$31.99

$

Usually ships in 3-6 days

0

2

Toro 105-7044

ROD-BRAKE, RH

$31.99

$

Usually ships in 3-6 days

0

3

Toro 105-3481

WASHER-THRUST

$1.99

$

Usually ships in 3-6 days

0

5

Toro 106-8671

RH ACTUATOR ARM W/BUSHING ASM

$

$

Not available

5:2

Toro 105-3455

BUSHING

$3.49

$

In Stock, only 4 left!

0

6:2

Toro 105-3455

BUSHING

Note: Not illustrated

$3.49

$

In Stock, only 4 left!

0

6

Toro 106-8672

LH ACTUATOR ARM W/BUSHING ASM
(Superseded to 110-1869)

Note: Not illustrated

$

$

Not available

7

Toro 105-3488

LH PIVOT SHAFT ASM

$90.99

$

Usually ships in 3-6 days

0

8

Toro 105-3487

RH PIVOT SHAFT ASM

Note: Not illustrated

$90.99

$

Usually ships in 3-6 days

0

9

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

11

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Toro 105-3485

BUSHING-ECCENTRIC
(Superseded to 107-4874)

$15.99

$

Usually ships in 3-6 days

0

13

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

14

Toro 103-2913

Damper-Control, Motion
(Superseded to 109-2339)

$76.99

$

In Stock, only 3 left!

0

15

Toro 106-2181

BELLCRANK

$16.99

$

Usually ships in 3-6 days

0

17

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

18

Toro 105-3486

STOP-ADJUSTMENT

$25.99

$

Usually ships in 3-6 days

0

19

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

24

Toro 106-2179

LINK-BRAKE

$25.99

$

Usually ships in 3-6 days

0

25

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

26

Toro 105-7048

ROD-HYDRO

$25.99

$

Usually ships in 3-6 days

0

27

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

28

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 106-2242

HANDLE ASM

$

$

Not available

30:2

Toro 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0

31

Toro 105-3469

SPRING-COMPRESSION

$10.99

$

Usually ships in 3-6 days

0

32

Toro 106-2214

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

33

Toro 105-3465

SPRING-COMPRESSION

$19.99

$

Usually ships in 3-6 days

0

34

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

35

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 3274-52

SCREW-HSH

$3.49

$

Usually ships in 3-6 days

0

37

$

$

Not available

38

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0
