74402 (14-38 Z) - Toro 38" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) 38IN DECK ASSEMBLY Parts Diagram

38" TimeCutter Zero-Turn Mower

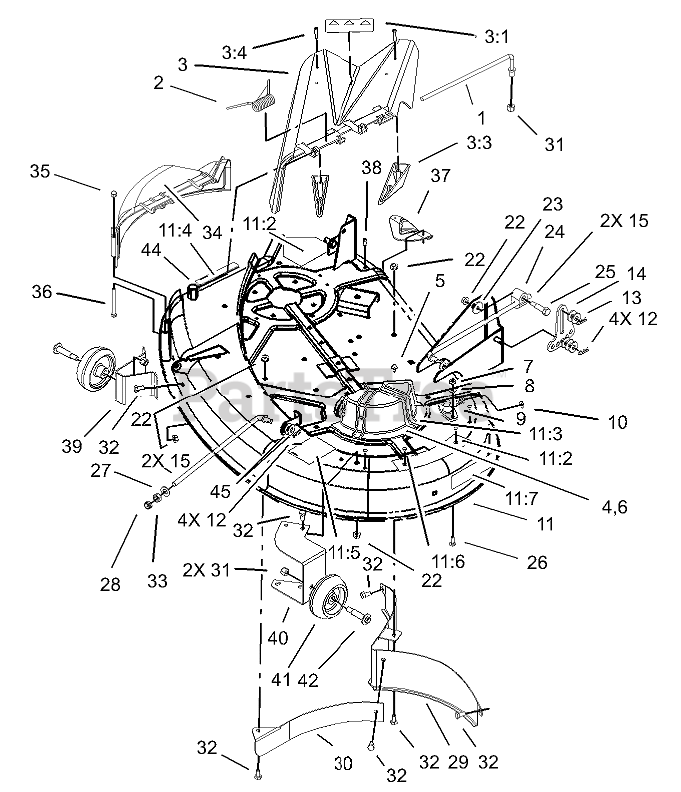

38IN DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 95-1661

ROD-PIVOT

$20.99

$

In Stock, only 1 left!

0

2

Toro 57-6950

SPRING

$25.99

$

In Stock, only 1 left!

0

3

Toro 93-7695

DEFLECTOR ASM

$82.99

$

In Stock, only 2 left!

0

3:1

Toro 93-7010

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

3:3

Toro 93-7696

KICKER

$14.99

$

In Stock, only 3 left!

0

3:4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

4

Toro 88-4030

GUIDE-BELT, LH

$35.99

$

In Stock, only 1 left!

0

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 88-4020

GUIDE-BELT, RH

$35.99

$

In Stock, only 1 left!

0

7

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

10

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

11

Toro 106-8732

38IN DECK ASM
(Superseded to 107-9139)

$1170.99

$

Usually ships in 3-6 days

0

11:2

Toro 93-7010

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

11:3

Toro 93-6677

DECAL-DANGER, SHIELD

$

$

Not available

11:4

Toro 93-7009

DECAL-DANGER

$6.49

$

In Stock, only 1 left!

0

11:5

Toro 105-7015

DECAL-ROUTING, BELT

$5.49

$

In Stock, Qty 16

0

11:6

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

11:7

Toro 106-6407

DECAL

$

$

Not available

12

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

13

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 14

0

14

Toro 88-5570-03

LINK-ADJUSTING, HOC

$13.99

$

Usually ships in 3-6 days

0

15

Toro 105-3437

ROD-HANGER

$31.99

$

In Stock, only 4 left!

0

22

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

23

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

24

Toro 88-4230

TRUNNION-HOC

$13.99

$

In Stock, only 3 left!

0

25

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

26

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

27

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

28

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

29

Toro 106-7030-03

BAFFLE-REAR

$109.99

$

Usually ships in 3-6 days

0

30

Toro 106-7032-03

EXTENSION-BAFFLE

$95.99

$

Usually ships in 3-6 days

0

31

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

32

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

33

Toro 3219-4

NUT-HEX

$3.49

$

Usually ships in 3-6 days

0

34

Toro 88-4520

COVER-DISCHARGE, DECK

$

$

Not available

35

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

36

Toro 321-55

SCREW-HH

$24.99

$

Usually ships in 3-6 days

0

37

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

38

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

39

Toro 106-8704-01

BRACKET-WHEEL, GAGE (FRONT, RH)

$57.99

$

Usually ships in 3-6 days

0

40

Toro 107-1717-01

BRACKET-WHEEL, GAGE (FRONT, LH)

$75.99

$

Usually ships in 3-6 days

0

41

Toro 701756

WHEEL-GAGE

$7.99

$

In Stock, Qty 14

0

42

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 3 left!

0

44

Toro 106-8745

O-RING

$1.99

$

In Stock, only 2 left!

0

45

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
