74401 (Z 17-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) STARTER ASSEMBLY KAWASAKI FH500V-AS36 Parts Diagram

44" TimeCutter Zero-Turn Mower

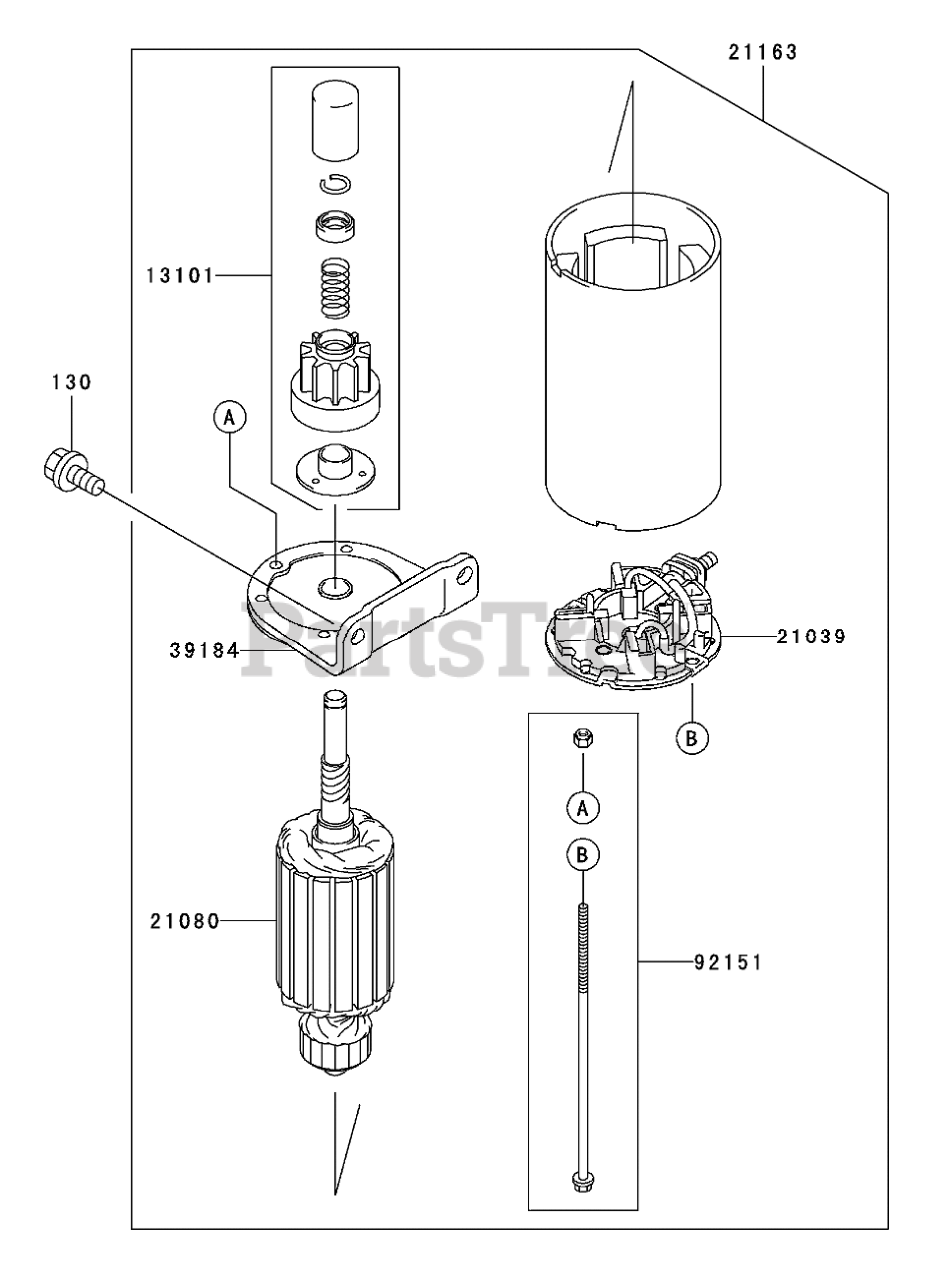

STARTER ASSEMBLY KAWASAKI FH500V-AS36 Parts Diagram

13101

Gear ASM

(Superseded to 13101-7003) 

Note: Obtain Parts From Kawasaki

$118.99

In Stock, only 1 left!

21039

Brush

(Superseded to 21039-7004) 

Note: Obtain Parts From Kawasaki

$258.99

In Stock, Qty 17

21080

Armature

(Superseded to 21080-7005) 

Note: Obtain Parts From Kawasaki

$213.99

Usually ships in 2-5 days

21163

Starter-Electric

Note: Obtain Parts From Kawasaki

Currently unavailable 

39184

Bracket ASM

(Superseded to 39184-7004) 

Note: Obtain Parts From Kawasaki

$29.99

Usually ships in 2-5 days

92151

Bolt

Note: Obtain Parts From Kawasaki

Not available 

130

Bolt-Flanged (8X16)

(Superseded to 130AA0816) 

Note: Obtain Parts From Kawasaki

$0.99

In Stock, Qty 20+
