74401 (17-44 ZX) - Toro 44" TimeCutter Zero-Turn Mower (SN: 240000001 - 240999999) (2004) PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FH500V-BS36 Parts Diagram

44" TimeCutter Zero-Turn Mower

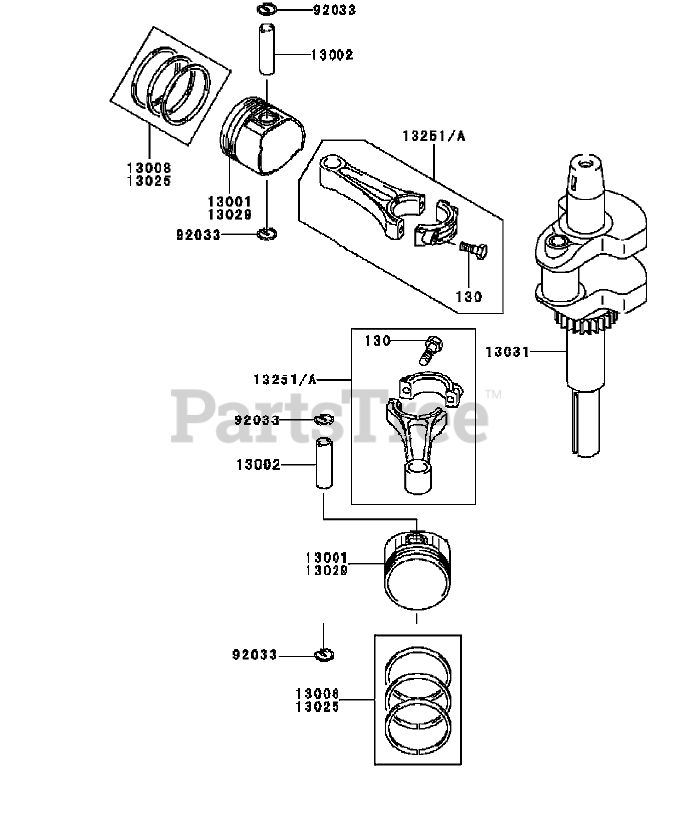

PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FH500V-BS36 Parts Diagram

  • Title

13001

Kawasaki 13001-7008

Piston-Engine
(Superseded to 13001-7001)

Note: Obtain parts from your local Kawasaki dealer.

$74.99

$

In Stock, only 2 left!

0

13002

Kawasaki 13002-7001

Pin-Piston

Note: Obtain parts from your local Kawasaki dealer.

$4.99

$

In Stock, Qty 12

0

13008

Kawasaki 13008-6055

Ring-Set-Piston

Note: Obtain parts from your local Kawasaki dealer.

$60.99

$

In Stock, Qty 14

0

13025

Kawasaki 13025-7001

Ring-Set-Piston L, 0.5

Note: Obtain parts from your local Kawasaki dealer.

$39.99

$

Usually ships in 2-5 days

0

13029

Kawasaki 13029-7004

Piston-Engine L, 0.5
(Superseded to 13029-7001)

Note: Obtain parts from your local Kawasaki dealer.

$86.99

$

Usually ships in 2-5 days

0

13031

Kawasaki 13031-7001

Crankshaft-Comp

Note: Obtain parts from your local Kawasaki dealer.

$

$

Not available

13251

Kawasaki 13251-7003

Rod-ASM-Connecting

Note: Obtain parts from your local Kawasaki dealer.

$58.99

$

In Stock, only 3 left!

0

13251A

Kawasaki 13251-7004

Rod-ASM-Connecting
(Superseded to 13251-7001)

Note: Obtain parts from your local Kawasaki dealer.

$58.99

$

In Stock, only 2 left!

0

92033

Kawasaki 92033-7005

Ring-Snap

Note: Obtain parts from your local Kawasaki dealer.

$0.99

$

In Stock, Qty 7

0

130

Toro 130G0630

Bolt-Flanged (6X30)

Note: Obtain parts from your local Kawasaki dealer.

$

$

Currently unavailable
