74401 (17-44 ZX) - Toro 44" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) CARBURETOR ASSEMBLY KAWASAKI FH500V-BS36 Parts Diagram

44" TimeCutter Zero-Turn Mower

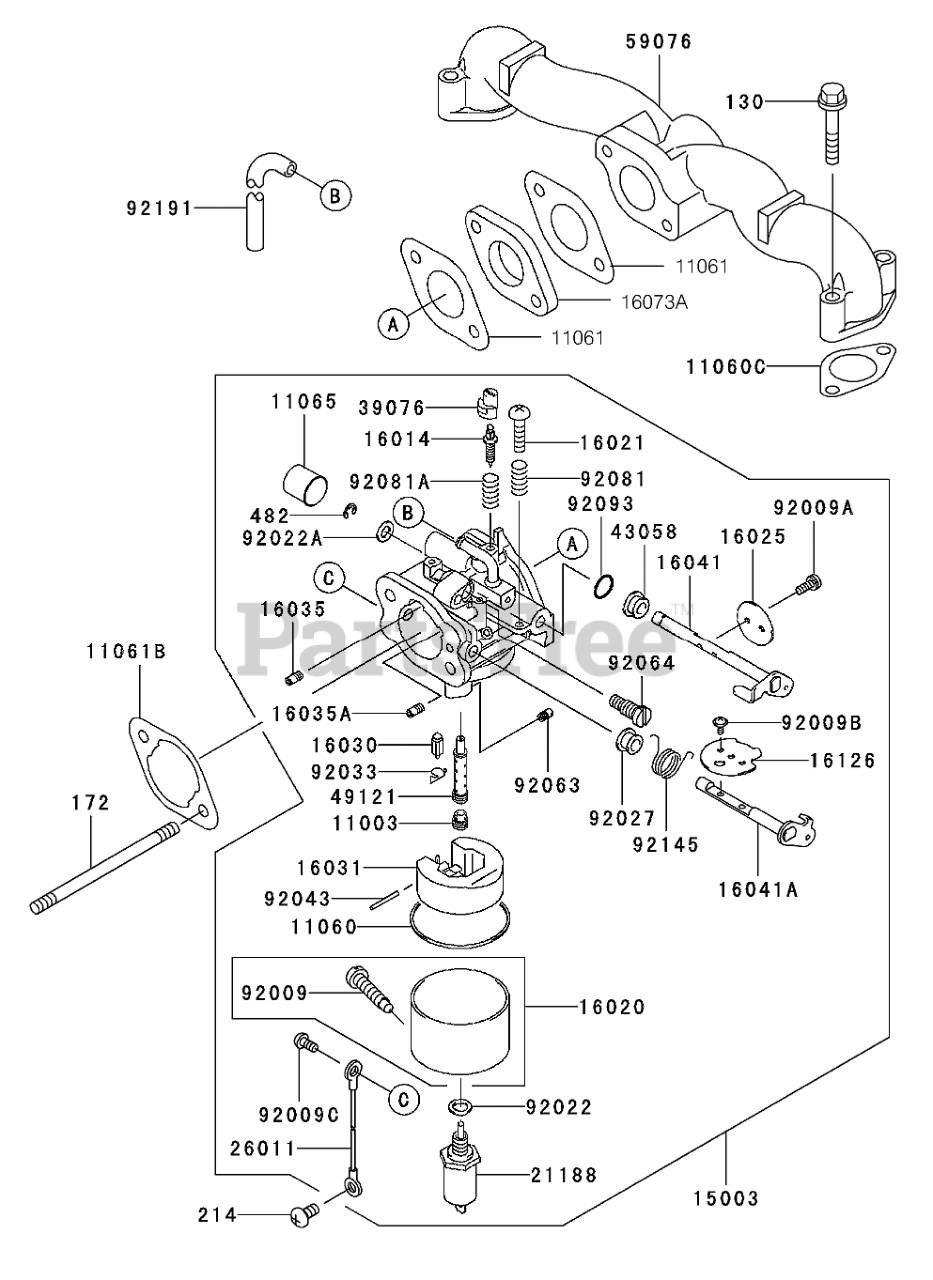

CARBURETOR ASSEMBLY KAWASAKI FH500V-BS36 Parts Diagram

  • Title
11003

Kawasaki 11003-2105

Seat-Valve

Note: Obtain parts from www.kawpowerepc.com

$13.99

$

In Stock, only 4 left!

0

11060

Kawasaki 11060-2406

Gasket, Chamber

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

11060C

Kawasaki 11060-7005

Gasket, Manifold
(Superseded to 11061-7019)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7004

GASKET-INSULATOR
(Superseded to 11060-7003)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7018

GASKET-CLEANER, AIR
(Superseded to 11060-7004)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-2061

Cap

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 1 left!

0

15003

Kawasaki 15003-7037

Carburetor-ASM

Note: Obtain parts from www.kawpowerepc.com

$268.99

$

Usually ships in 2-5 days

0

16014

Kawasaki 16014-2080

Screw-Pilot Air

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

16020

Kawasaki 16020-2141

Chamber-Float

Note: Obtain parts from www.kawpowerepc.com

$50.99

$

In Stock, only 1 left!

0

16021

Kawasaki 16021-2060

Screw-Throttlestop

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

Usually ships in 2-5 days

0

16025

Kawasaki 16025-2195

Valve-Throttle, #130

Note: Obtain parts from www.kawpowerepc.com

$11.99

$

Usually ships in 2-5 days

0

16030

Kawasaki 16030-2067

Valve-Float
(Superseded to 16030-2068)

Note: Obtain parts from www.kawpowerepc.com

$23.99

$

In Stock, Qty 8

0

16031

Kawasaki 16031-2066

Float

Note: Obtain parts from www.kawpowerepc.com

$29.99

$

In Stock, Qty 8

0

16035

Kawasaki 16035-2077

Jet-Air, #0.8

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

16035A

Kawasaki 16035-2081

Jet-Air, #2.0

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

16041

Kawasaki 16041-2253

Shaft-Carburetor, Throttle

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

16041A

Kawasaki 16041-7006

Shaft-Carburetor

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

16073A

Kawasaki 16073-7007

Insulator
(Superseded to 16073-7001)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

16126

Kawasaki 16126-7008

Valve

Note: Obtain parts from www.kawpowerepc.com

$7.99

$

In Stock, only 1 left!

0

21188

Kawasaki 21188-2011

Solenoid

Note: Obtain parts from www.kawpowerepc.com

$183.99

$

In Stock, only 1 left!

0

26011

Kawasaki 26011-2281

Wire-Lead

Note: Obtain parts from www.kawpowerepc.com

$6.49

$

Usually ships in 2-5 days

0

39076

Kawasaki 39076-2053

Limiter

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, only 1 left!

0

43058

Kawasaki 43058-3716

Ring

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 49121-2231

Nozzle-Main #112B

Note: Obtain parts from www.kawpowerepc.com

$34.99

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-7001

Manifold-Intake
(Superseded to 59076-7017)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92009

Kawasaki 92009-2015

Screw
(Superseded to 315470-6133A)

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2024

Screw
(Superseded to 92009-2378)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

Usually ships in 2-5 days

0

92009B

Kawasaki 92009-2081

Screw
(Superseded to 92009-2026)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, only 1 left!

0

92009C

Kawasaki 92009-2400

Screw

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2231

Washer

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 13

0

92022A

Kawasaki 92022-2239

Washer

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

Usually ships in 2-5 days

0

92027

Kawasaki 92027-2025

Collar

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-2067

Ring-Snap

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, only 3 left!

0

92043

Kawasaki 92043-2226

Pin

Note: Obtain parts from www.kawpowerepc.com

$7.49

$

In Stock, only 1 left!

0

92063

Kawasaki 92063-2380

Jet-Main, #106.3

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 92064-2127

Jet-Pilot, #42.5

Note: Obtain parts from www.kawpowerepc.com

$12.99

$

Usually ships in 2-5 days

0

92081

Kawasaki 92081-2009

Spring

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, only 3 left!

0

92081A

Kawasaki 92081-2256

Spring

Note: Obtain parts from www.kawpowerepc.com

$7.99

$

In Stock, only 1 left!

0

92093

Kawasaki 92093-2002

Seal

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 5

0

92145

Kawasaki 92145-2061

Spring

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, only 2 left!

0

92191

Kawasaki 92191-7016

Tube

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, only 2 left!

0

130

Kawasaki 130B0635

Bolt-Flanged (6X35)
(Superseded to 130AA0635)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 12

0

172

Kawasaki 172G0685

Bolt-Stud
(Superseded to 172BA0685)

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

Usually ships in 2-5 days

0

214

Kawasaki 214B0510

SCREW-PAN (5X10)
(Superseded to 214AA0510)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 13

0

482

Kawasaki 482L4000

Circlip-Type-E
(Superseded to 482EA4000)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 10

0
