74401 (17-44 ZX) - Toro 44" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) 44IN DECK ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

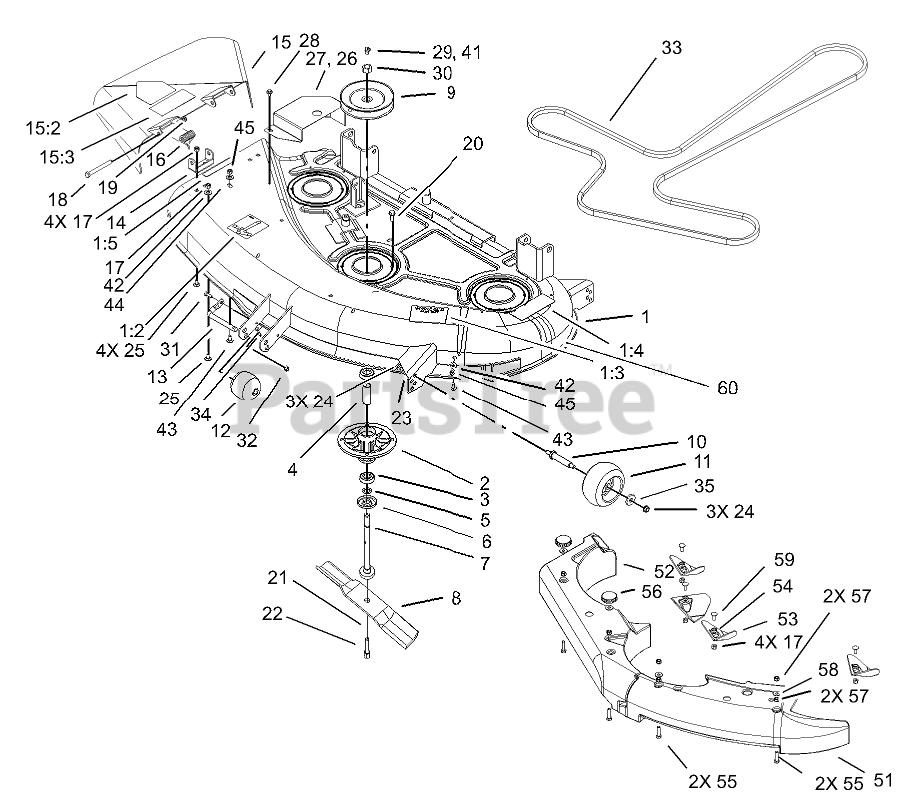

44IN DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 105-6967

44 INCH DECK ASM

$

$

Not available

1:2

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 1 left!

0

1:3

Toro 99-8939

DECAL-ANTI SCALP

$28.99

$

Usually ships in 3-6 days

0

1:4

Toro 93-7317

DECAL-DANGER

$

$

Not available

1:5

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

2

Toro 88-4510

HOUSING-SPINDLE

$106.99

$

In Stock, Qty 7

0

3

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

4

Toro 94-7959

SPACER - BEARING

$42.99

$

Usually ships in 3-6 days

0

5

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 12

0

6

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

7

Toro 94-7547

SHAFT-CENTER, SPINDLE

$107.99

$

Usually ships in 3-6 days

0

8

Toro 92-7952-03

BLADE-RECYCLER

$37.99

$

In Stock, only 1 left!

0

9

Toro 105-6973

Pulley ASM

$124.99

$

In Stock, only 1 left!

0

10

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0

11

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

12

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

13

Toro 118960-03

Shaft-Roller

$43.99

$

In Stock, only 3 left!

0

14

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

15

Toro 98-5049

DEFLECTOR ASM

$

$

Not available

15:2

Toro 93-7317

DECAL-DANGER

$

$

Not available

15:3

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

16

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

19

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

20

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

21

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

22

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

23

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

26

Toro 105-6975-01

Cover-Belt, LH

$

$

Not available

27

Toro 105-6974-01

Cover-Belt, RH

$

$

Not available

28

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

29

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

30

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

31

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

33

Toro 105-6977

BELT V

$227.99

$

Usually ships in 3-6 days

0

34

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

35

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

41

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0

42

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

43

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

44

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

45

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

51

Toro 93-7652

BAFFLE-LH

$356.99

$

Usually ships in 3-6 days

0

52

Toro 93-7651

BAFFLE-RH

$356.99

$

Usually ships in 3-6 days

0

53

Toro 84-5760

PLATE-KICKER

$15.99

$

Usually ships in 3-6 days

0

54

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

55

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

56

Toro 94-5583

KNOB

$13.99

$

In Stock, only 2 left!

0

57

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

58

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

59

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

60

Toro 106-6408

DECAL

$

$

Not available
