74399 (Z 5020) - Toro 50" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) STARTER ASSEMBLY KOHLER SV720-0032 Parts Diagram

50" TimeCutter Zero-Turn Mower

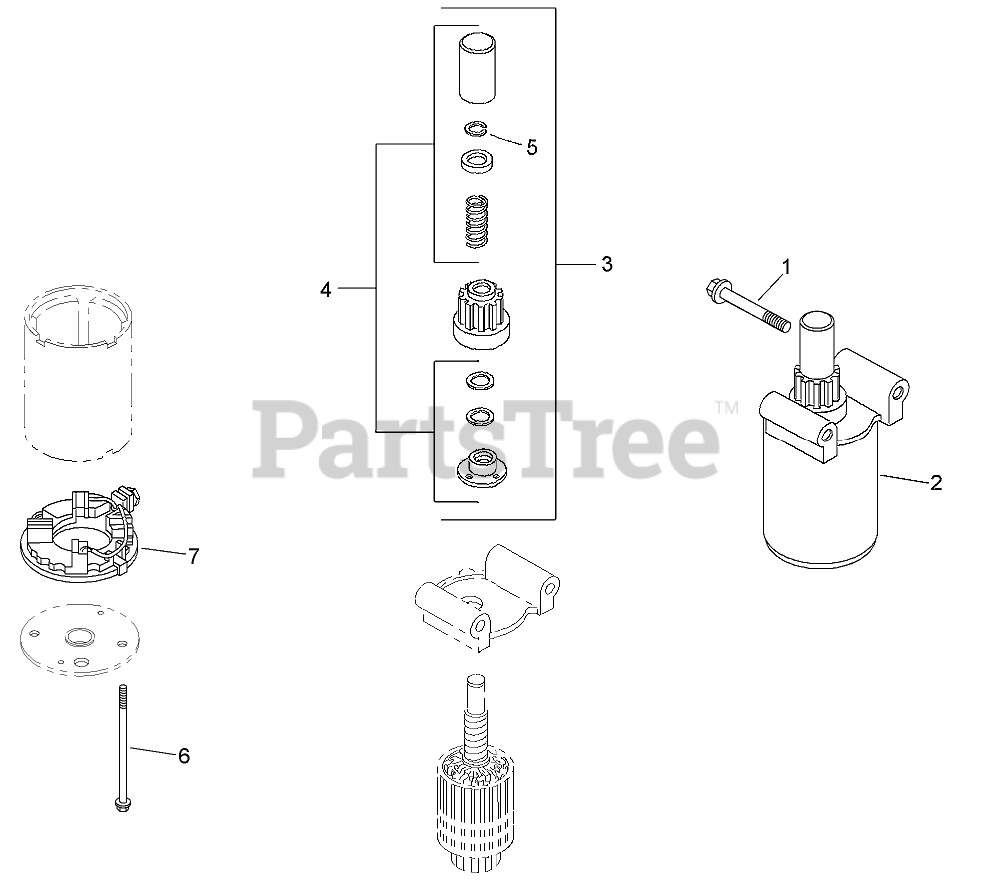

STARTER ASSEMBLY KOHLER SV720-0032 Parts Diagram

  • Title
1

Kohler M-839080-S

SCREW-FLG (M8X1.25X80)
(Superseded to M-851080-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

2

Kohler 32 098 01-S

Starter ASM (INCLUDES 3-7)
(Superseded to 32 098 03-S)

Note: Obtain parts from www.kohlerplus.com

$228.99

$

In Stock, Qty 19

0

3

Kohler 12 755 39-S

Drive Kit (INCLUDES 4, 5)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 12 755 38-S

Drive Parts Kit (INCLUDES 5)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 32 141 01-S

RING-RETAINING

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 4 left!

0

6

Kohler 32 211 01-S

BOLT-THRU

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

7

Kohler 12 243 04-S

COMMUTATOR-CAP, END

Note: Obtain parts from www.kohlerplus.com

$

$

Not available
