74399 (Z 5020) - Toro 50" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

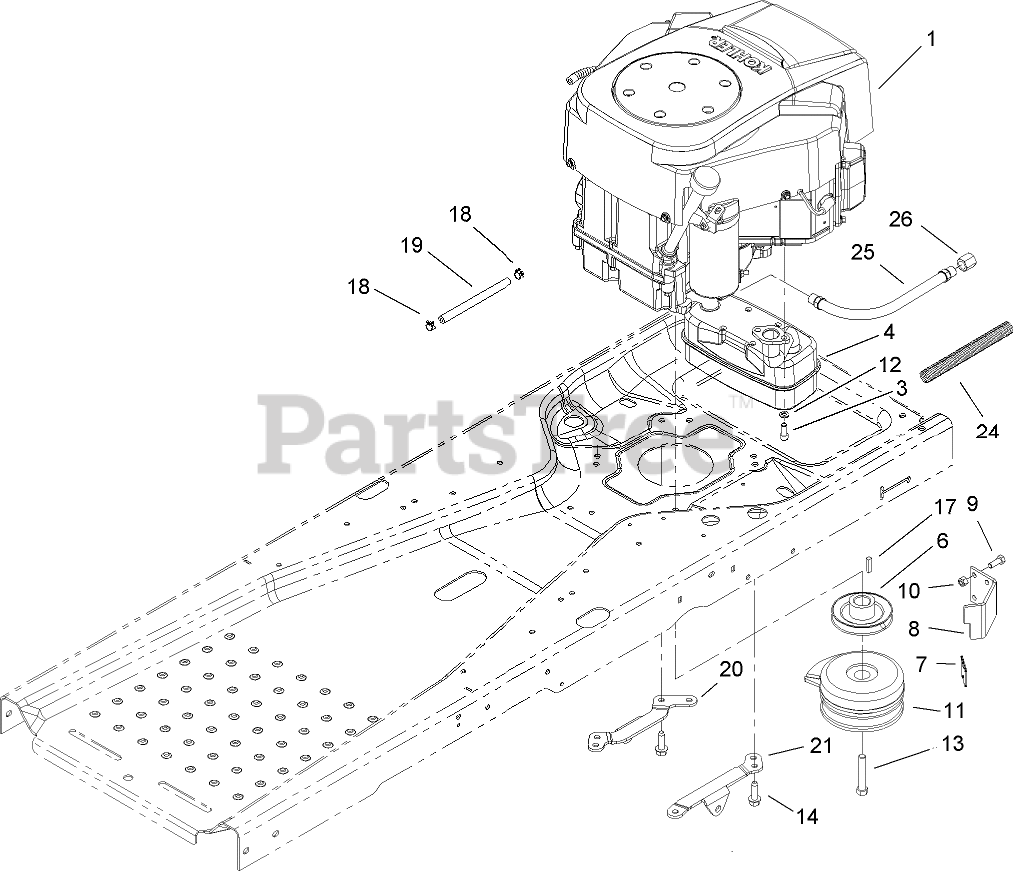

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, SV720-0032

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, SV720-0032

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

4

Toro 108-7875

MUFFLER
(Superseded to 109-8951)

$217.99

$

In Stock, only 1 left!

0

6

Toro 110-6758

PULLEY-ENGINE
(Superseded to 114-1622)

$135.99

$

Usually ships in 3-6 days

0

7

Toro 112-3974

BUMPER
(Superseded to 112-4033)

$7.99

$

In Stock, only 3 left!

0

8

Toro 110-6896

STOP-CLUTCH

$12.99

$

Usually ships in 3-6 days

0

9

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 110-6766

CLUTCH-ELECTRIC, PTO

$573.99

$

Usually ships in 3-6 days

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

14

Toro 32144-109

SCREW-TAPTITE

$4.99

$

In Stock, Qty 7

0

17

Toro 5-7280

KEY

$5.99

$

In Stock, only 1 left!

0

18

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

19

Toro 107-0589

HOSE-FUEL

$7.49

$

In Stock, Qty 5

0

20

Toro 110-6798

SUPPORT-HYDRO, RH

$29.99

$

In Stock, only 3 left!

0

21

Toro 110-6799

SUPPORT-HYDRO, LH

$29.99

$

In Stock, Qty 11

0

24

Toro 112-9849

TUBING-CONVOLUTED

$3.99

$

Usually ships in 3-6 days

0

25

Toro 82-4201

HYD HOSE ASM

$

$

Not available

26

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days
