74395 (ZS 5000 TF) - Toro 50" TimeCutter Zero-Turn Mower (SN: 313000001 - 313999999) (2013) 50 INCH DECK, BELT AND MULCH BLADE ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

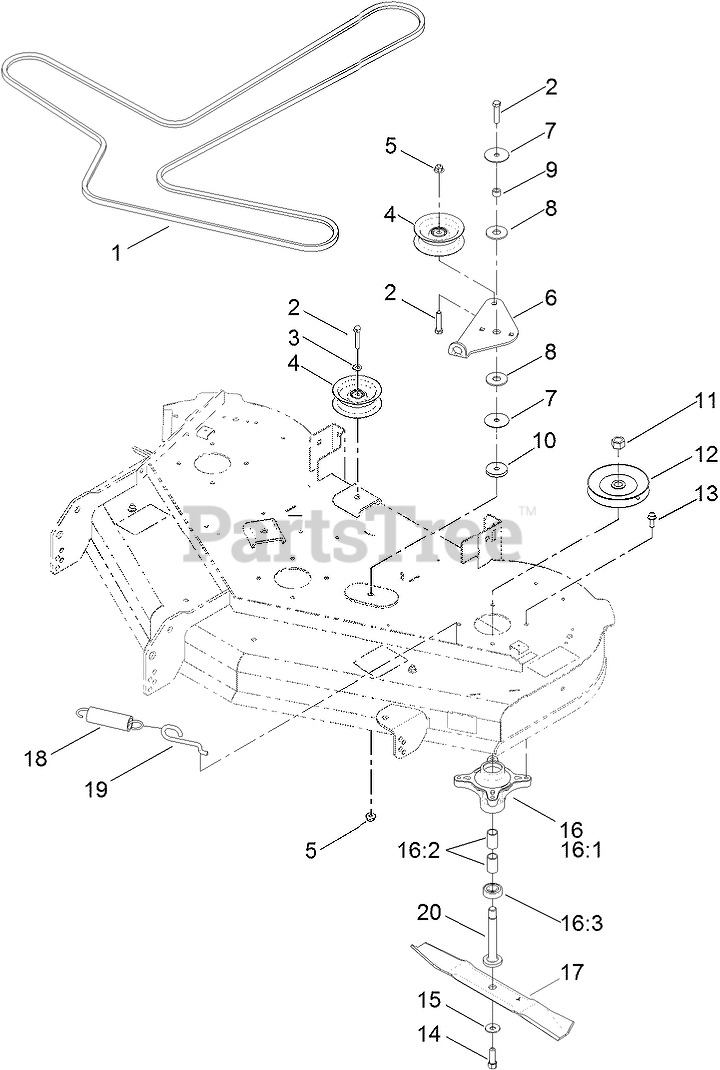

50 INCH DECK, BELT AND MULCH BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 119-8820

V-BELT
(Superseded to 119-8820-SL)

$62.99

$

Usually ships in 3-6 days

0

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

4

Toro 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 114-8540

ARM-IDLER

$21.99

$

In Stock, only 1 left!

0

7

Toro 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

8

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

9

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 5

0

10

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

11

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

12

Toro 125-5575

PULLEY

$62.99

$

In Stock, Qty 20+

0

13

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

15

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Toro 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$78.99

$

Usually ships in 3-6 days

0

16:1

Toro 117-7267

SPINDLE
(Superseded to 139-3214)

$78.99

$

Usually ships in 3-6 days

0

16:2

Toro 120-7935

SPACER

$2.99

$

In Stock, Qty 9

0

16:3

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

17

Toro 115-5062-03

BLADE-MULCH, 17.50 INCH

$34.99

$

In Stock, only 3 left!

0

18

Toro 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, only 2 left!

0

19

Toro 112-3973

HOOK-RETURN, SPRING
(Superseded to 138-7266)

$5.49

$

In Stock, only 1 left!

0

20

Toro 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 15

0
