74391 (Z 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) FUEL SYSTEM ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

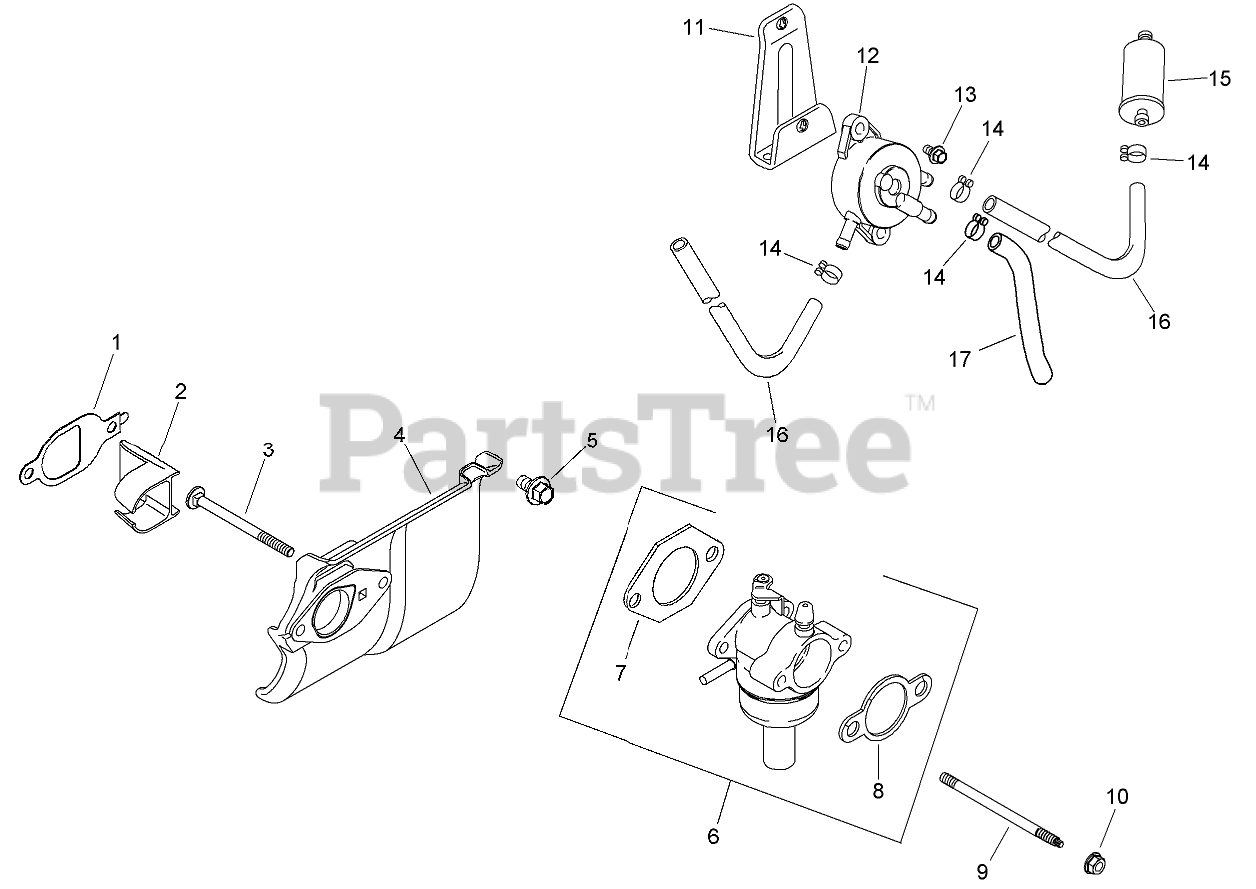

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Kohler 20 041 18-S

GASKET-DEFLECTOR, HEAT

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, Qty 13

0

2

Kohler 20 332 01-S

INSERT-PORT, INTAKE

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 10

0

3

Kohler 20 072 07-S

STUD-CARBURETOR
(Superseded to 20 072 09-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 9

0

4

Kohler 20 265 07-S

DEFLECTOR-HEAT
(Superseded to 20 265 09-S)

Note: Obtain parts from www.kohlerplus.com

$29.99

$

Usually ships in 2-5 days

0

5

Kohler M-651020-S

Screw-Flange, Hex (M6x1.0x20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

6

Kohler 20 853 14-S

Carburetor ASM (Includes Gaskets)
(Superseded to 20 853 33-S)

Note: Obtain parts from www.kohlerplus.com

$176.99

$

In Stock, only 1 left!

0

7

Kohler 12 041 01-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 14

0

8

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 5

0

9

Kohler 20 072 05-S

Stud-Mounting, Carburetor (M6X1.0X100)
(Superseded to 20 072 10-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 9

0

10

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

11

Kohler 20 126 02-S

BRACKET-MOUNTING, FUEL PUMP

Note: Obtain parts from www.kohlerplus.com

$8.99

$

Usually ships in 2-5 days

0

12

Kohler 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 18

0

13

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

14

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 3 left!

0

15

Kohler 25 050 22-S

FILTER-FUEL

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, Qty 20+

0

16

Kohler 25 111 34-S

LINE-FUEL (24.0 CUT TO LENGTH)
(Superseded to 25 111 81-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 4 left!

0

17

Kohler 52 353 20-S

Line-Fuel (10 Inch)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Not illustrated

$3.99

$

In Stock, Qty 13

0

Kohler 25 454 05-S

TIE

Note: Not illustrated

$2.49

$

In Stock, only 2 left!

0

Kohler 25 454 05-S

TIE

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Kohler 25 431 02-S

SLEEVE-ABRASION, ANTI

Note: Not illustrated

$20.99

$

Usually ships in 2-5 days

0

Kohler 25 431 02-S

SLEEVE-ABRASION, ANTI

Note: Obtain parts from www.kohlerplus.com

$20.99

$

Usually ships in 2-5 days

0

Kohler 12 755 110-S

Choke Shaft Kit

Note: Obtain parts from www.kohlerplus.com

$14.99

$

Usually ships in 2-5 days

0

Kohler 12 755 110-S

Choke Shaft Kit

Note: Not illustrated

$14.99

$

Usually ships in 2-5 days

0

Kohler 12 757 02-S

Float Repair Kit

Note: Not illustrated

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 02-S

Float Repair Kit

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, Qty 7

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Not illustrated

$35.99

$

In Stock, Qty 7

0

Kohler 12 757 33-S

Solenoid Repair Kit

Note: Not illustrated

$135.99

$

In Stock, only 1 left!

0

Kohler 12 757 33-S

Solenoid Repair Kit

Note: Obtain parts from www.kohlerplus.com

$135.99

$

In Stock, only 1 left!

0

Kohler 12 757 37-S

Bowl Replacement Repair Kit

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, only 4 left!

0

Kohler 12 757 37-S

Bowl Replacement Repair Kit

Note: Not illustrated

$16.99

$

In Stock, only 4 left!

0

Kohler 20 755 06-S

High Altitude Kit (5, 000 ft)

Note: Not illustrated

$17.99

$

Usually ships in 2-5 days

0

Kohler 20 755 06-S

High Altitude Kit (5, 000 ft)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

Usually ships in 2-5 days

0

Kohler 20 755 07-S

High Altitude Kit (10, 000 ft)

Note: Obtain parts from www.kohlerplus.com

$19.99

$

Usually ships in 2-5 days

0

Kohler 20 755 07-S

High Altitude Kit (10, 000 ft)

Note: Not illustrated

$19.99

$

Usually ships in 2-5 days

0
