74391 (Z 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) DECK LIFT AND SEAT SUPPORT ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

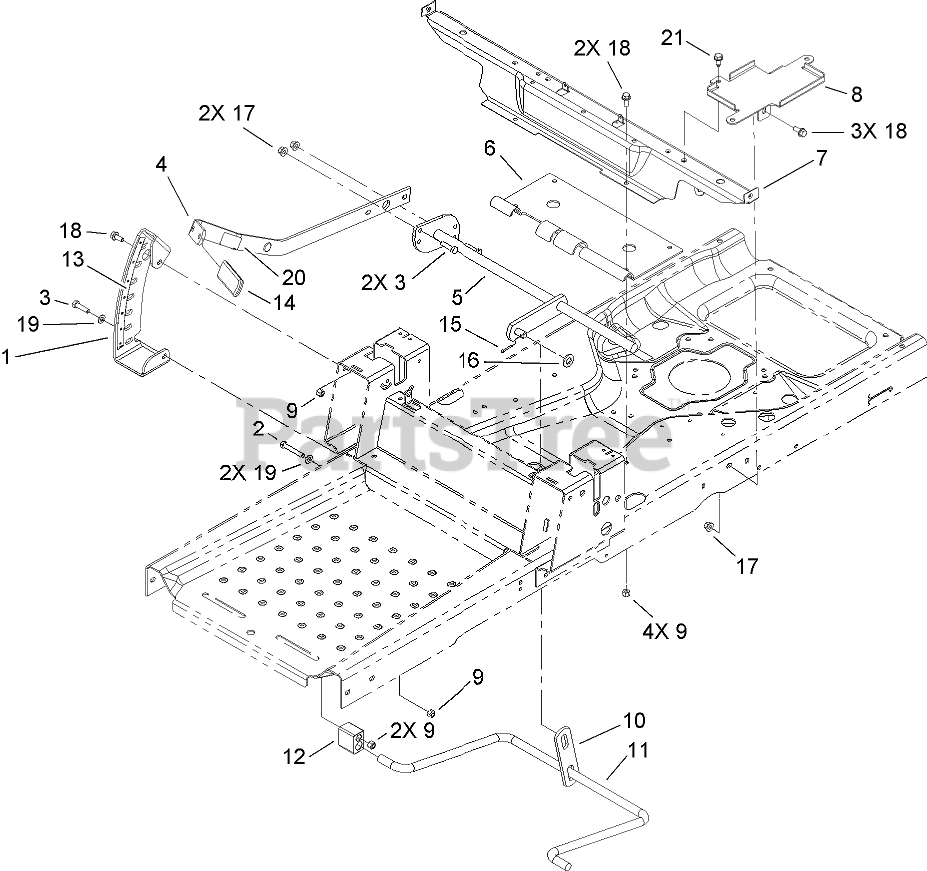

DECK LIFT AND SEAT SUPPORT ASSEMBLY Parts Diagram

1

Toro 112-4027-03

SECTOR-HOC

$34.99

$

Usually ships in 3-6 days

0

2

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

4

Toro 112-3960-03

LIFT ARM ASM

$55.99

$

Usually ships in 3-6 days

0

5

Toro 108-7841-03

LIFT LEVER ASM

$

$

Not available

6

Toro 110-6800-03

PLATE-LIFT

$

$

Not available

7

Toro 110-6805-03

BRACKET-SEAT/PODS

$104.99

$

Usually ships in 3-6 days

0

8

Toro 110-1937-03

TRAY-BATTERY

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 108-7840

LINK-LIFT
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 16

0

11

Toro 108-7839

ARM-LIFT, REAR
(Superseded to 138-7234)

$35.99

$

In Stock, Qty 10

0

12

Toro 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, Qty 19

0

13

Toro 110-6824

DECAL-HOC

$

$

Not available

14

Toro 105-3450

GRIP-LEVER, LIFT

$9.49

$

In Stock, only 3 left!

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

18

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 106-8743

DECAL-HOC

$2.99

$

Usually ships in 3-6 days

0

21

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0
