74389 (ZS 4200 S) - Toro 42" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) DECK LIFT ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

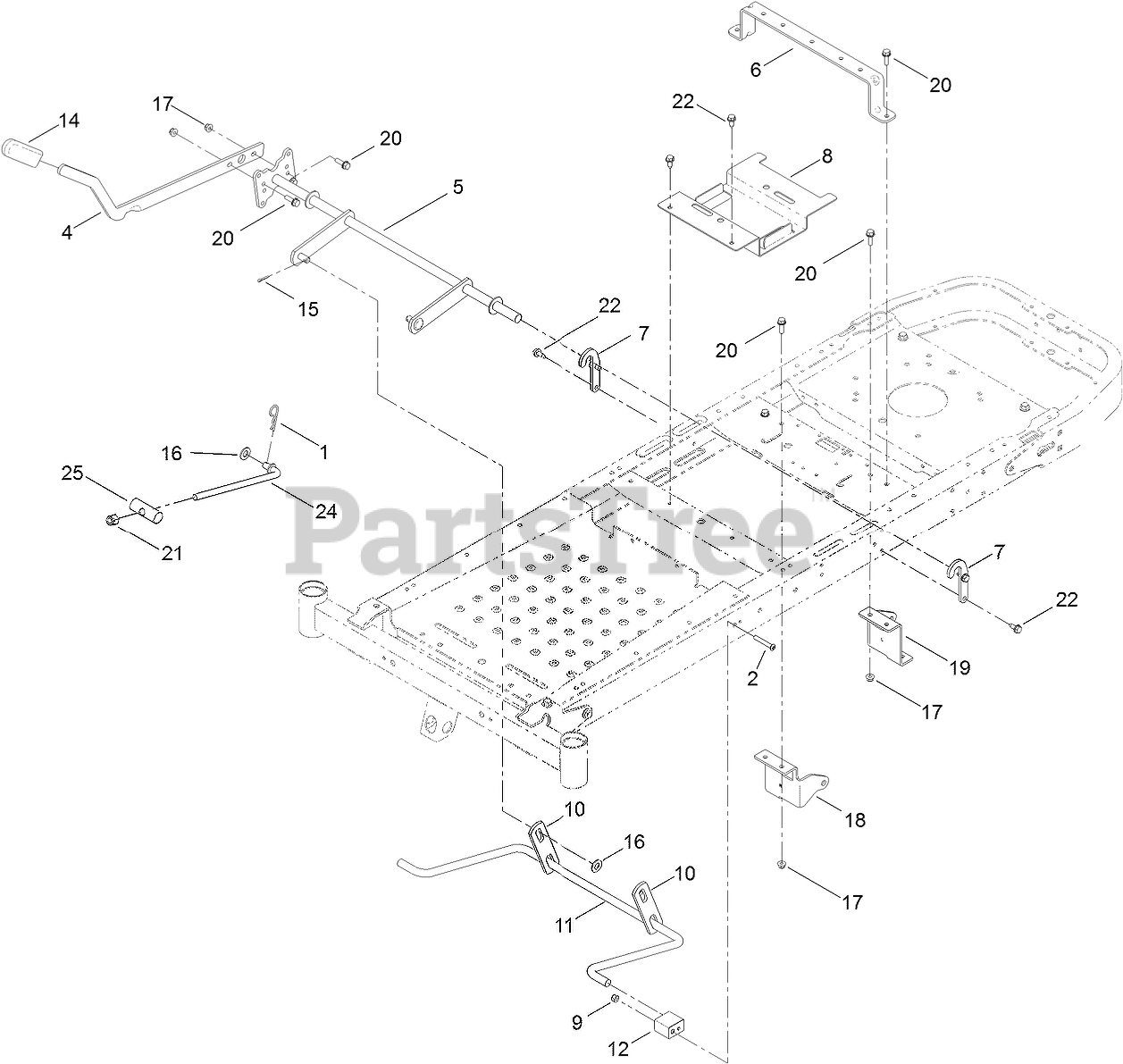

DECK LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

2

Toro 120-5499

SCREW-HSBH

$2.99

$

In Stock, Qty 17

0

4

Toro 119-3427-03

LEVER-LIFT

$25.99

$

Usually ships in 3-6 days

0

5

Toro 117-7346-03

LIFT-DECK, NARROW
(Superseded to 132-6872-03)

$53.99

$

Usually ships in 3-6 days

0

6

Toro 119-3435-03

BRACE-SEAT, REAR (NARROW)

$21.99

$

Usually ships in 3-6 days

0

7

Toro 119-8875

BRACKET-LIFT
(Superseded to 138-7233)

$6.49

$

In Stock, only 3 left!

0

8

Toro 119-3406-03

BRACKET-BATTERY
(Superseded to 135-0507-03)

$27.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 108-7840

LINK-LIFT
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 8

0

11

Toro 108-7839

ARM-LIFT, REAR
(Superseded to 138-7234)

$35.99

$

Usually ships in 3-6 days

0

12

Toro 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, only 2 left!

0

14

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Toro 119-8861-01

MOUNT-HYDRO, FRONT (RH)

$19.99

$

Usually ships in 3-6 days

0

19

Toro 119-8862-01

MOUNT-HYDRO, FRONT (LH)
(Superseded to 139-3211-01)

$14.99

$

In Stock, only 1 left!

0

20

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

21

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 104-8047

ROD-TRUNION
(Superseded to 131-3945)

$43.99

$

In Stock, only 2 left!

0

25

Toro 119-8810

PIN-PIVOT

$17.99

$

In Stock, only 2 left!

0
