74389 (ZS 4200 S) - Toro 42" TimeCutter Zero-Turn Mower (SN: 313000001 - 313999999) (2013) 42 INCH DECK ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

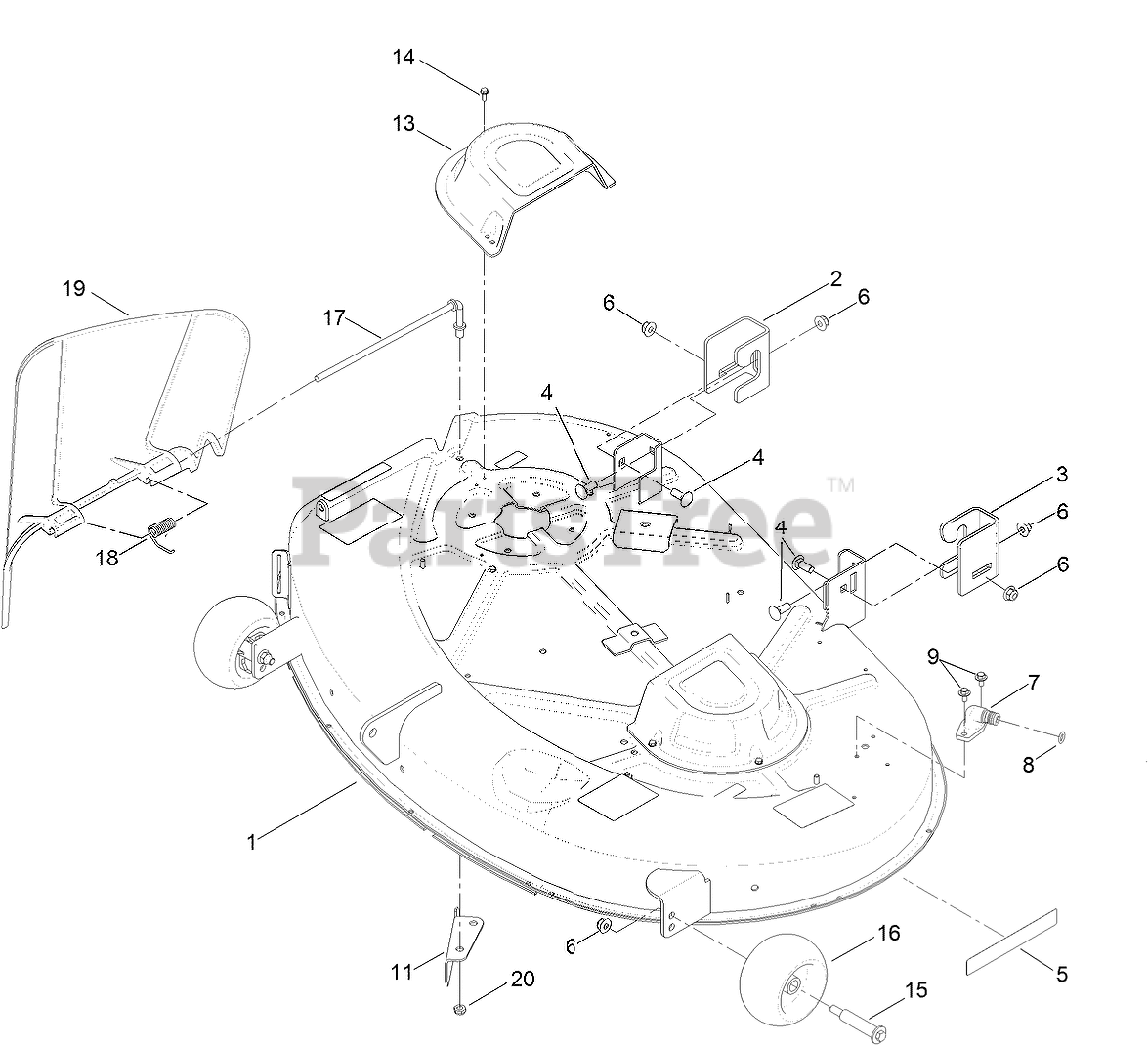

42 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 119-8840

42 INCH DECK AND DECAL ASM

$1003.99

$

Usually ships in 3-6 days

0

2

Toro 119-3494

BRACKET-HANGER, RH
(Superseded to 131-4138)

$13.99

$

In Stock, only 2 left!

0

3

Toro 119-3496

BRACKET-HANGER, LH

$12.99

$

In Stock, Qty 10

0

4

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

5

Toro 119-2368

DECAL-RECYCLER

$6.49

$

In Stock, only 2 left!

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

8

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

9

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

11

Toro 112-3983-03

BAFFLE-CUTOFF

$26.99

$

Usually ships in 3-6 days

0

13

Toro 108-7889

COVER-BELT

$34.99

$

In Stock, only 2 left!

0

14

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

15

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

16

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

17

Toro 112-4026

ROD-PIVOT

$19.99

$

In Stock, Qty 5

0

18

Toro 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 7

0

19

Toro 112-3951

DEFLECTOR

$62.99

$

In Stock, Qty 20+

0

20

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0
