74388 (ZS 3200 S) - Toro 32" TimeCutter Zero-Turn Mower (SN: 312000001 - 312999999) (2012) BODY STYLING AND FUEL POD ASSEMBLY Parts Diagram

32" TimeCutter Zero-Turn Mower

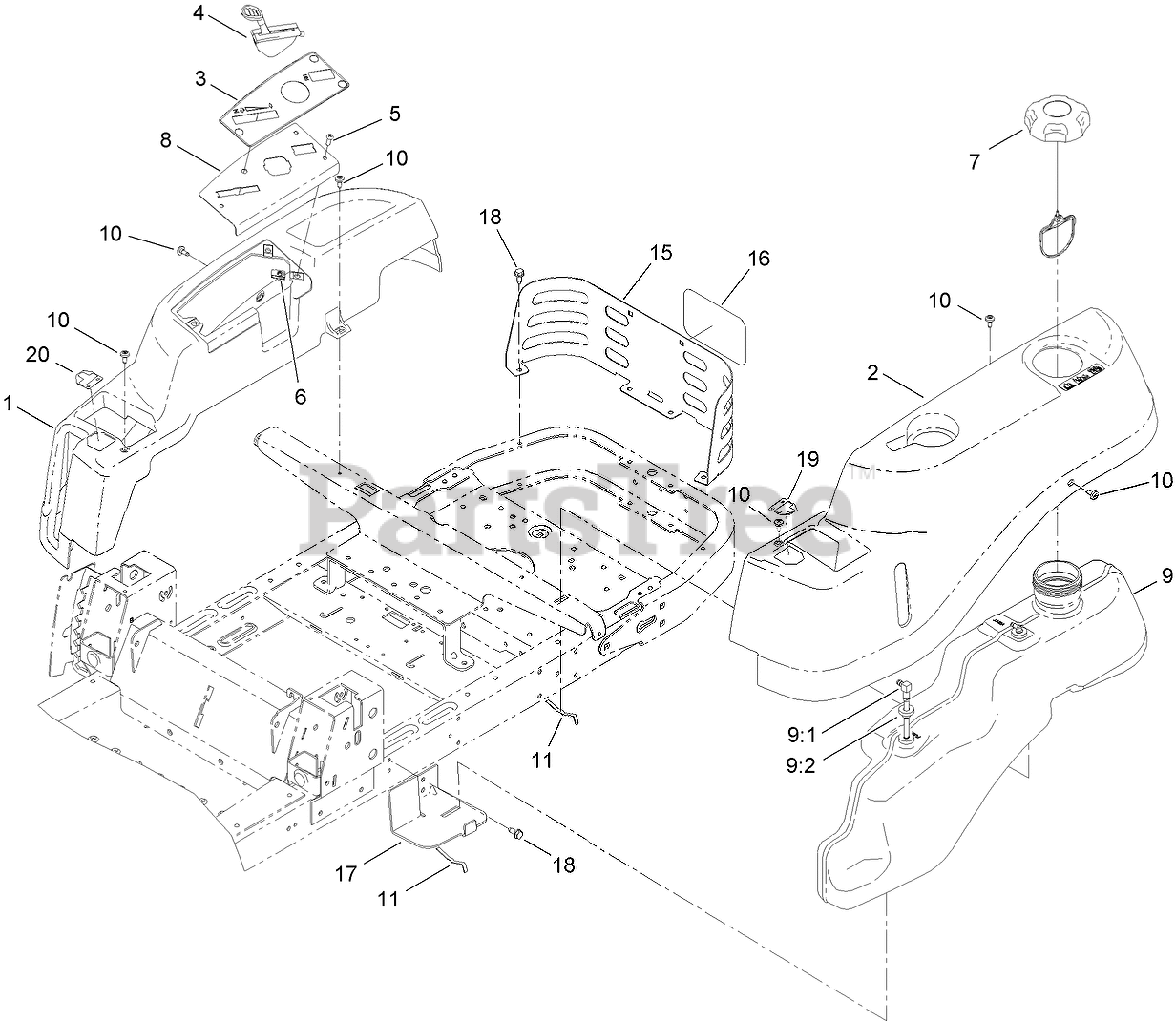

BODY STYLING AND FUEL POD ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3335

POD-RH

$75.99

$

Usually ships in 3-6 days

0

2

Toro 119-3334

POD-LH
(Superseded to 137-7008)

$75.99

$

In Stock, only 1 left!

0

3

Toro 121-0771

DECAL-PANEL, CONTROL

$11.99

$

Usually ships in 3-6 days

0

4

Toro 121-0767

CABLE-THROTTLE AND CHOKE

$54.99

$

Usually ships in 3-6 days

0

5

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

7

Toro 120-5461

CAP-FUEL, RATCHETING
(Superseded to 137-4119)

$26.99

$

In Stock, only 1 left!

0

8

Toro 119-3378-03

PLATE-CONTROL

$9.49

$

Usually ships in 3-6 days

0

9

Toro 119-3324

FUEL TANK ASM

$313.99

$

In Stock, only 3 left!

0

9:1

Toro 121-0793

CONNECTOR-ELBOW, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

9:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

10

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 13

0

11

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

15

Toro 119-8855-03

GUARD-REAR

$50.99

$

Usually ships in 3-6 days

0

16

Toro 105-8278

DECAL

$10.99

$

In Stock, only 2 left!

0

17

Toro 119-3476-03

SUPPORT-TANK, FRONT

$13.99

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 119-8814

DECAL-CONTROL LEVER, LH

$2.99

$

In Stock, only 1 left!

0

20

Toro 119-8815

DECAL-CONTROL LEVER, RH

$2.99

$

In Stock, only 2 left!

0
