74387 (ZS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) ENGINE AND EXHAUST ASSEMBLY Parts Diagram
50" TimeCutter Zero-Turn Mower

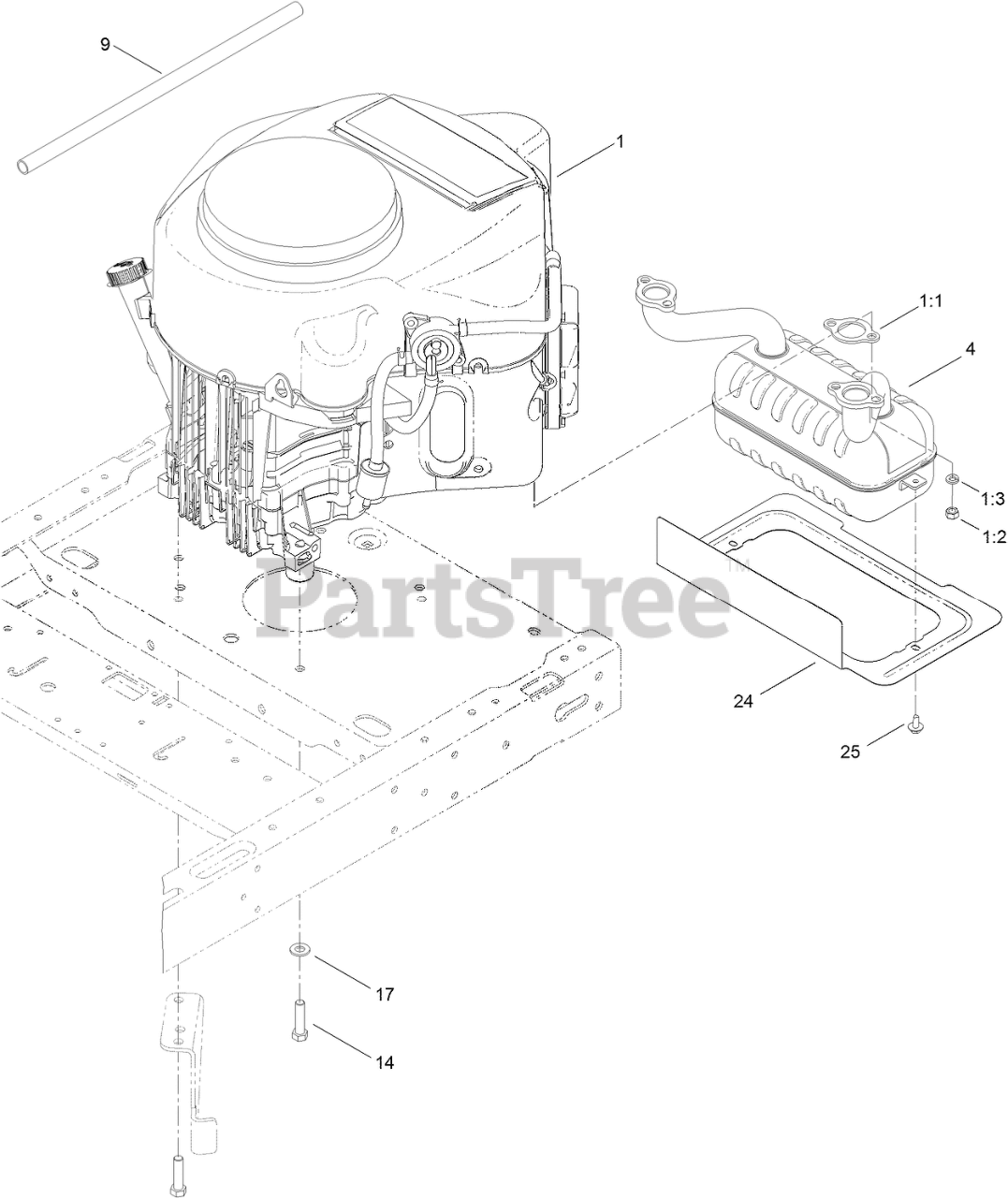

ENGINE AND EXHAUST ASSEMBLY Parts Diagram
1
ENGINE KAWASAKI, FR691V-S50-R
Note: Not serviced separately
$
$
Not available
1
ENGINE KAWASAKI, FR691V-S50-R
Note: Obtain parts from www.kawpowerepc.com
$
$
Not available
Toro 1-653313
GASKET-EXHAUST
$4.99
$
Usually ships in 3-6 days
Toro 114-3549
NUT
$1.99
$
In Stock, Qty 20+
Toro 114-3550
WASHER-LOCK
$1.49
$
In Stock, Qty 6
Toro 117-7256
MUFFLER-KAWASAKI
$224.99
$
In Stock, only 1 left!
Toro 106-7022
TUBE-DRAIN, OIL
$9.49
$
In Stock, only 1 left!
Toro 323-50
BOLT-HH
$1.49
$
In Stock, Qty 17
Toro 3256-24
WASHER-FLAT
$0.99
$
In Stock, Qty 15
Toro 121-2973-03
SHIELD-HEAT
$34.99
$
Usually ships in 3-6 days
Toro 46-8560
SCREW-HHFTF
$1.99
$
In Stock, only 4 left!
