74386 (ZS 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 311000001 - 311999999) (2011) ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

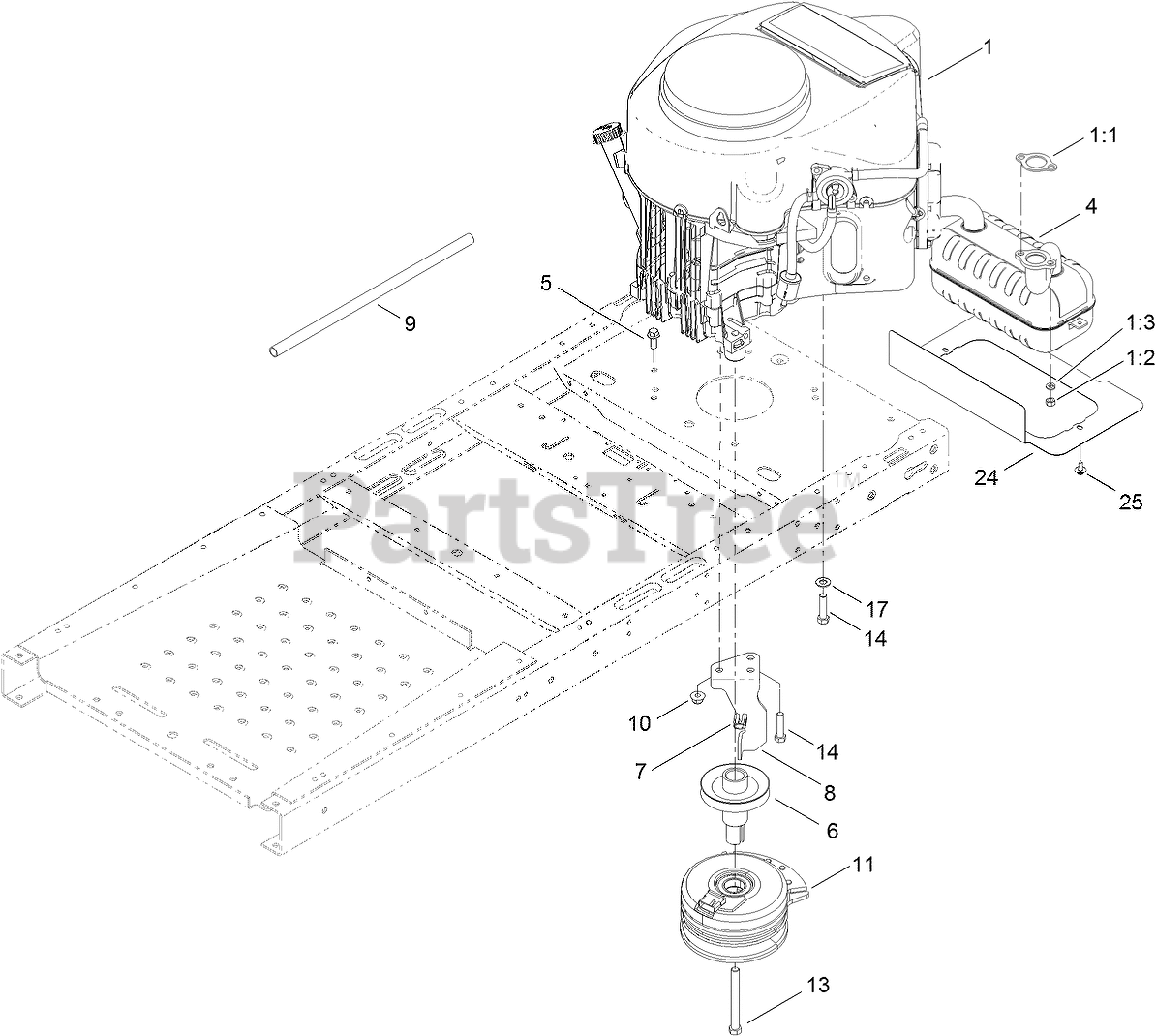

ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FR600V

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FR600V

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Toro 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

1:2

Toro 114-3549

NUT

$1.99

$

In Stock, Qty 7

0

1:3

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

4

Toro 116-2450

MUFFLER-KAWASAKI

$274.99

$

Usually ships in 3-6 days

0

5

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

6

Toro 119-3318

PULLEY-ENGINE

$63.99

$

In Stock, only 1 left!

0

7

Toro 120-2217

ISOLATOR-CLUTCH

$2.99

$

In Stock, Qty 9

0

8

Toro 119-8884

STOP-CLUTCH

$

$

Not available

9

Toro 106-7022

TUBE-DRAIN, OIL

$8.99

$

In Stock, only 1 left!

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 117-7468

CLUTCH-ELECTRIC

$534.99

$

Usually ships in 3-6 days

0

13

Toro 3212-16

SCREW-HH

$19.99

$

In Stock, Qty 12

0

14

Toro 323-50

BOLT-HH

$1.49

$

In Stock, Qty 19

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 119-8976-03

SHIELD-HEAT
(Superseded to 121-2973-03)

$33.99

$

In Stock, only 2 left!

0

25

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0
