74385 (ZS 3200) - Toro 32" TimeCutter Zero-Turn Mower (SN: 312000001 - 312999999) (2012) ENGINE AND EXHAUST ASSEMBLY Parts Diagram

32" TimeCutter Zero-Turn Mower

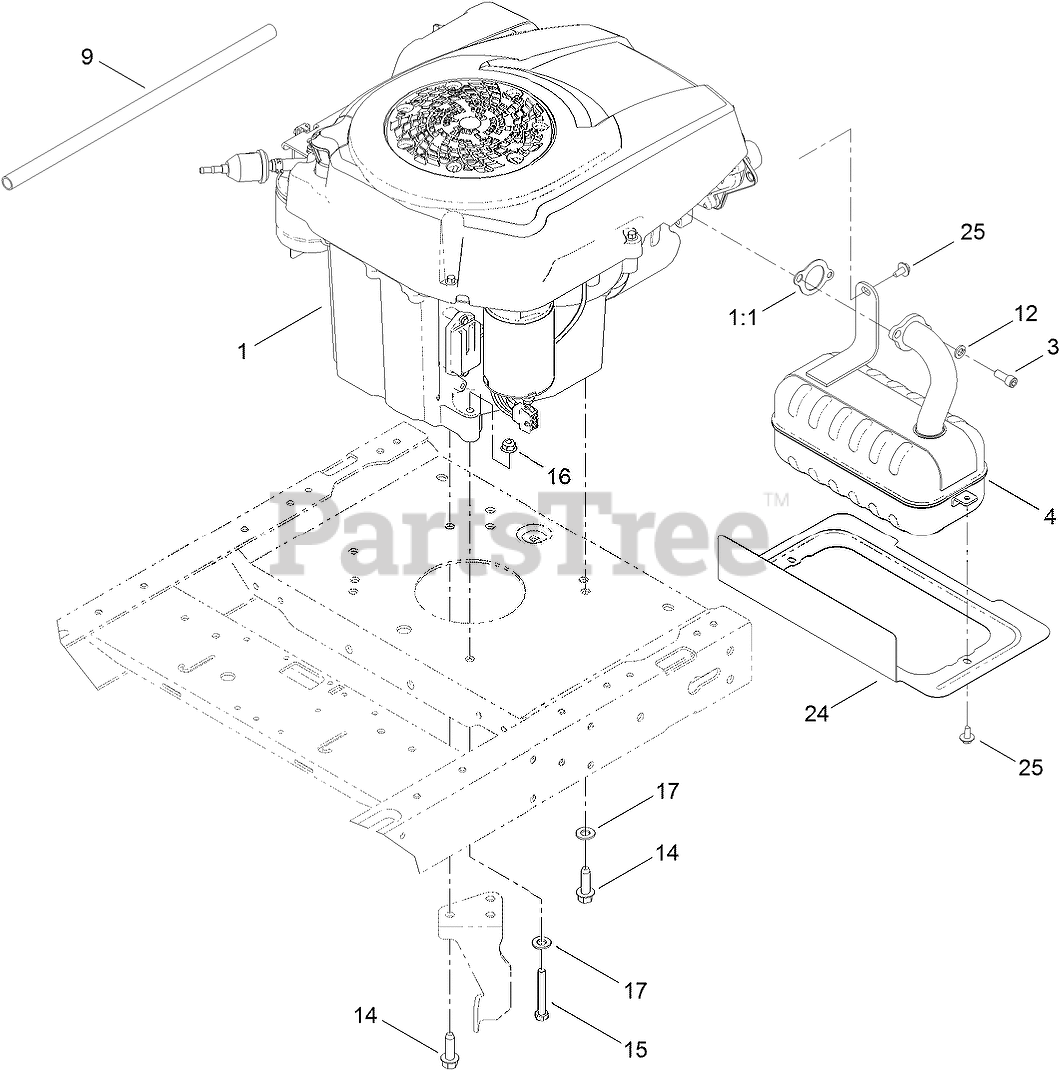

ENGINE AND EXHAUST ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, SV470-3222

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, SV470-3222

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Toro 110-6696

GASKET-EXHAUST

$4.99

$

In Stock, Qty 10

0

3

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

4

Toro 117-7312

MUFFLER-KOHLER

$252.99

$

In Stock, only 1 left!

0

9

Toro 106-7022

TUBE-DRAIN, OIL

$8.99

$

In Stock, only 1 left!

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 32144-109

SCREW-TAPTITE

$4.99

$

In Stock, Qty 7

0

15

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 121-2973-03

SHIELD-HEAT

$33.99

$

In Stock, only 2 left!

0

25

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0
