74381 (Z 4202) - Toro 42" TimeCutter Zero-Turn Mower (SN: 310000001 - 310999999) (2010) HYDRO TRACTION DRIVE ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

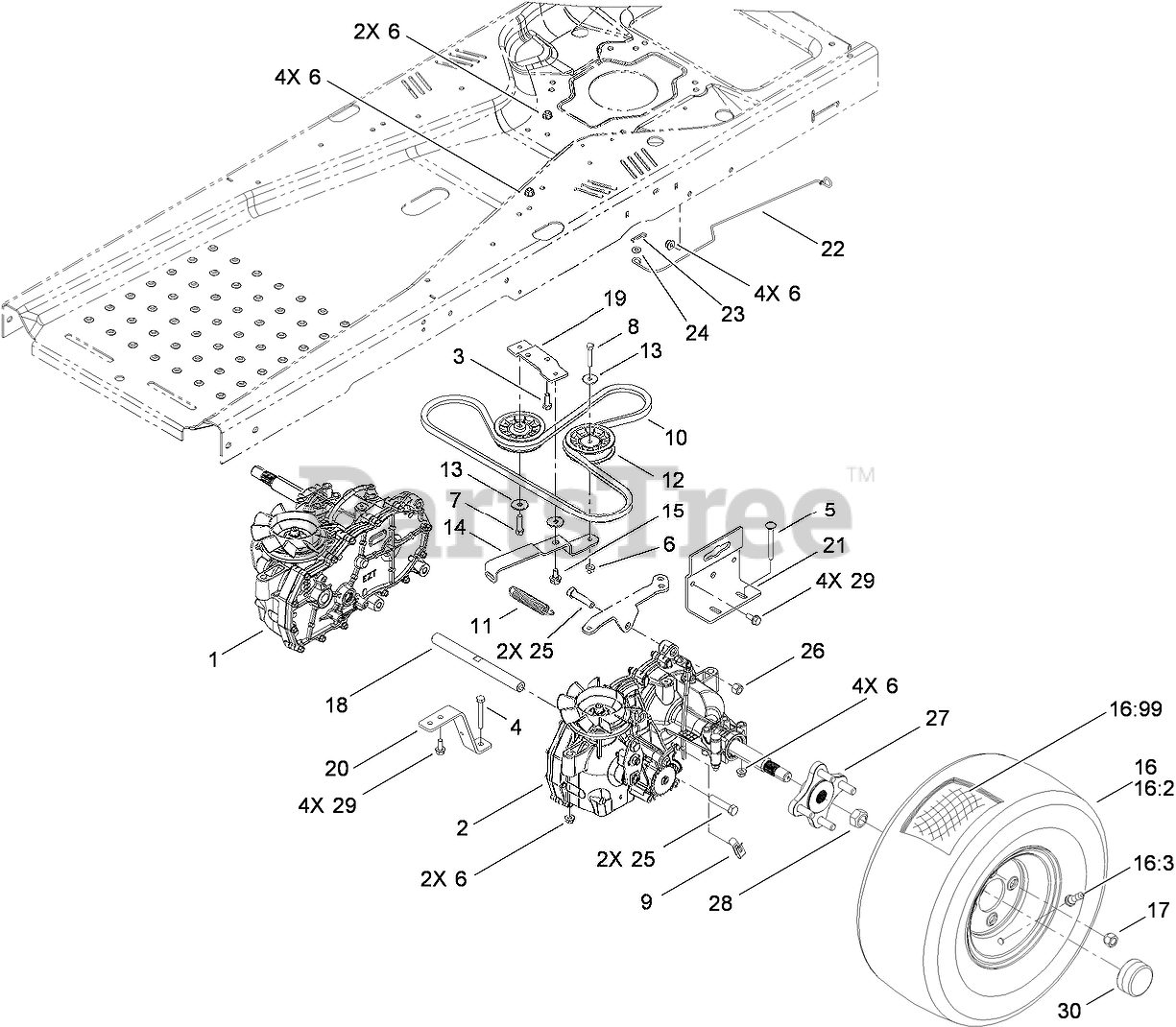

HYDRO TRACTION DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 110-6771

HYDRO-RH
(Superseded to 120-5501)

$1916.99

$

Usually ships in 3-6 days

0

2

Toro 110-6770

HYDRO-LH
(Superseded to 120-5500)

$1890.99

$

Usually ships in 3-6 days

0

3

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

5

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 5

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

8

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 110-6677

CLIP-SPRING

$2.99

$

In Stock, only 2 left!

0

10

Toro 110-6774

V-BELT

$34.99

$

In Stock, Qty 7

0

11

Toro 63-1590

SPRING-IDLER

$20.99

$

In Stock, only 1 left!

0

12

Toro 110-6775

PULLEY-IDLER

$35.99

$

In Stock, Qty 5

0

13

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

14

Toro 110-1925

ARM-IDLER

$25.99

$

In Stock, only 1 left!

0

15

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

16

Toro 110-6881

WHEEL AND TIRE ASM

$271.99

$

In Stock, only 1 left!

0

16:2

Toro 110-6885

TIRE
(Superseded to 131-3678)

$134.99

$

Usually ships in 3-6 days

0

16:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

16:99

Toro 107-2491

TUBE-TIRE

$80.99

$

In Stock, only 1 left!

0

17

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 110-6807

SHAFT-CROSS

$51.99

$

In Stock, only 4 left!

0

19

Toro 110-1926

PLATE-PIVOT

$23.99

$

In Stock, only 1 left!

0

20

Toro 110-6806-03

STRAP-TORQUE

$18.99

$

In Stock, only 1 left!

0

21

Toro 110-6878-03

SUPPORT-HYDRO

$

$

Not available

22

Toro 110-6787

ROD-BYPASS

$47.99

$

In Stock, only 2 left!

0

23

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 324-8

SCREW-HH

$5.99

$

In Stock, Qty 18

0

26

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 112-3979

HUB ASM

$

$

Not available

28

Toro 112-3982

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

29

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

30

Toro 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0
