74381 (Z 4202) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000001 - 290000210) (2009) ENGINE CONTROL ASSEMBLY KOHLER SV710-0031 Parts Diagram

42" TimeCutter Zero-Turn Mower

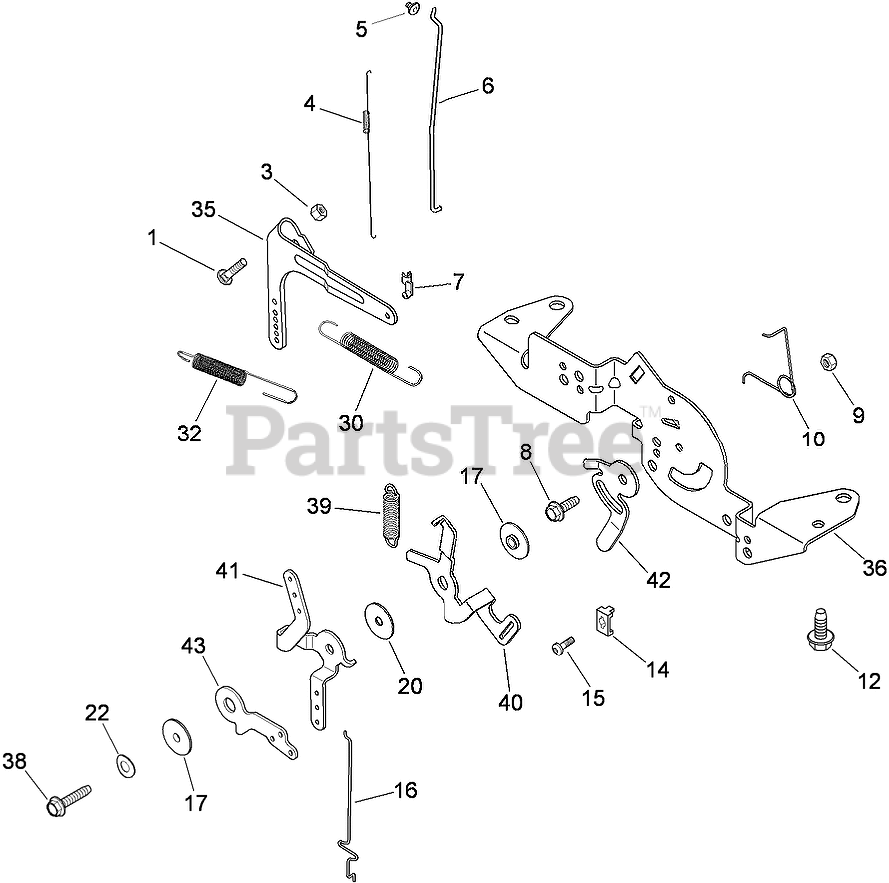

ENGINE CONTROL ASSEMBLY KOHLER SV710-0031 Parts Diagram

  • Title

1

Kohler 24 211 03-S

BOLT-SQ NECK, RD HD (M6X1.0X25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 15

0

3

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 6

0

4

Kohler 24 089 01-S

SPRING-LINKAGE

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 7

0

5

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 17

0

6

Kohler 24 079 04-S

LINKAGE-THROTTLE

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 4 left!

0

7

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 1 left!

0

8

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

9

Kohler M-547050-S

NUT-LOCK (M5X.8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

10

Kohler 24 089 03-S

SPRING-RETURN, CHOKE

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 12

0

12

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

14

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 5

0

15

Kohler 24 086 43-S

SCREW-LBD, THD FRM (M5X0.8X16)
(Superseded to 25 086 405-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

16

Kohler 24 079 22-S

LINKAGE-CHOKE

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, Qty 7

0

17

Kohler 24 112 27-S

CONTROL SPACER ASM

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

20

Kohler 24 468 01-S

WASHER-FLAT (5.5MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

22

Kohler 41 468 03-S

WASHER-SPRING (1/4)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

30

Kohler 24 089 55-S

SPRING-GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

32

Kohler 24 089 56-S

SPRING-GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$13.99

$

Usually ships in 2-5 days

0

35

Kohler 24 090 51-S

LEVER-GOVERNOR
(Superseded to 24 090 69-S)

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, only 1 left!

0

36

Kohler 24 126 172-S

BRACKET-CONTROL
(Superseded to 32 126 18-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, only 2 left!

0

38

Kohler 25 086 151-S

SCREW-THREAD FORMING (M5x0.8x25mm)
(Superseded to 25 086 472-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

39

Kohler 32 089 03-S

SPRING-CONTROL, SPEED

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

40

Kohler 32 090 07-S

LEVER-SPRING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

41

Kohler 32 090 08-S

LEVER-CONTROL, SPEED
(Superseded to 32 090 26-S)

Note: Obtain parts from www.kohlerplus.com

$1.99

$

In Stock, only 4 left!

0

42

Kohler 32 090 09-S

LEVER-SETTING, SPEED

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

43

Kohler 32 090 10-S

LEVER-CHOKE
(Superseded to 32 090 12-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available
