74381 (Z 4202) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000001 - 290000210) (2009) CRANKCASE ASSEMBLY KOHLER SV710-0031 Parts Diagram

42" TimeCutter Zero-Turn Mower

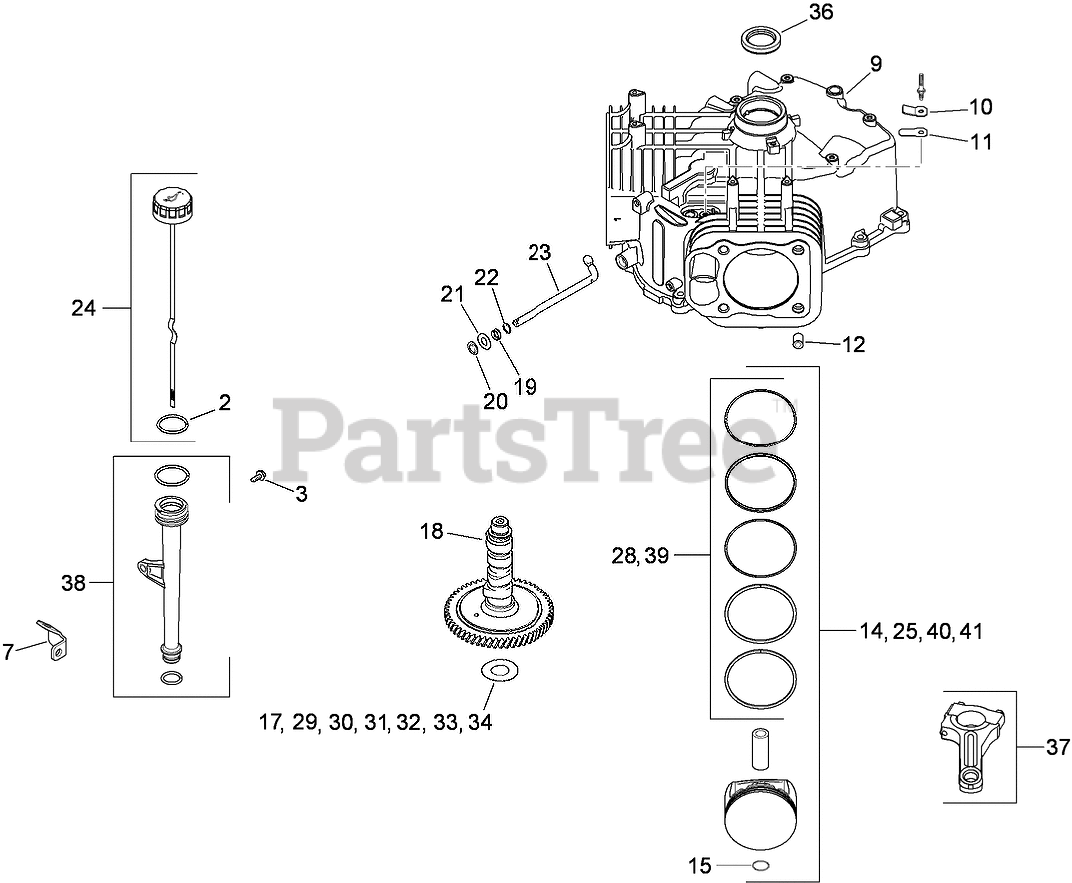

CRANKCASE ASSEMBLY KOHLER SV710-0031 Parts Diagram

  • Title

2

Kohler 25 153 02-S

O-RING (DIPSTICK)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

3

Kohler M-545013-S

SCREW-FLG, THD FRM (M5X0.8X13)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

7

Kohler 24 126 19-S

BRACKET-TUBE, OIL FILL
(Superseded to 24 126 246-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

9

Kohler 32 522 03

SV710-740 SHORTBLOCK
(Superseded to 32 522 07)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 24 018 04-S

RETAINER-REED, BREATHER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

11

Kohler 12 402 02-S

REED-BREATHER

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 8

0

12

Kohler 24 380 13-S

Pin-Locating
(Superseded to 24 380 16-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

14

Kohler 25 874 01-S

PISTON W/RING SET (STD) (INCLUDES 15, 39)
(Superseded to 25 874 13-S)

Note: Obtain parts from www.kohlerplus.com

$270.99

$

In Stock, only 2 left!

0

15

Kohler 24 018 01-S

RETAINER-PIN, PISTON

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

17

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

18

Kohler 32 012 01-S

CAMSHAFT KIT (INCLUDES 25 357 14-S)

Note: Obtain parts from www.kohlerplus.com

$136.99

$

Usually ships in 2-5 days

0

19

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 6

0

20

Kohler 24 018 09-S

RETAINER-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

21

Kohler M-931010-S

WASHER-FLAT (9MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

22

Kohler 24 468 15-S

WASHER-FLAT (11/32)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

23

Kohler 24 144 38-S

SHAFT-CROSS, GOVERNOR
(Superseded to 24 144 39-S)

Note: Obtain parts from www.kohlerplus.com

$41.99

$

Usually ships in 2-5 days

0

24

Kohler 24 038 04-S

Dipstick ASM (INCLUDES 2)

Note: Obtain parts from www.kohlerplus.com

$19.99

$

In Stock, only 1 left!

0

25

Kohler 25 874 03-S

PISTON W/RING SET (.25)
(Superseded to 25 874 16-S)

Note: Obtain parts from www.kohlerplus.com

$261.99

$

In Stock, only 1 left!

0

28

Kohler 24 108 16-S

PISTON RING SET (.25)

Note: Obtain parts from www.kohlerplus.com

$103.99

$

In Stock, only 2 left!

0

29

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

30

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

31

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

32

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

33

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

34

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

36

Kohler 24 032 19-S

SEAL-OIL (HELIX LIP)

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 20+

0

37

Kohler 24 067 24-S

ROD-CONNECTING (STD)
(Superseded to 25 067 04-S)

Note: Obtain parts from www.kohlerplus.com

$59.99

$

In Stock, only 4 left!

0

38

Kohler 25 123 07-S

DIPSTICK TUBE ASM

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, only 1 left!

0

39

Kohler 24 108 14-S

PISTON RING SET (STD)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

40

Kohler 32 874 09-S

PISTON W/RING SET (.08) (USE 24 874 27-S KIT)
(Superseded to 25 874 07-S)

Note: Obtain parts from www.kohlerplus.com

$261.99

$

Usually ships in 2-5 days

0

41

Kohler 24 874 27-S

PISTON W/RING SET (.08) (USE 25 874 02-S KIT)
(Superseded to 25 874 07-S)

Note: Obtain parts from www.kohlerplus.com

$261.99

$

Usually ships in 2-5 days

0

Kohler 25 357 14-S

LUBRICANT-CAMSHAFT

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

Kohler 25 357 14-S

LUBRICANT-CAMSHAFT

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0
