74381 (Z 4202) - Toro 42" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) IGNITION AND ELECTRICAL ASSEMBLY KOHLER SV710-0027 Parts Diagram

42" TimeCutter Zero-Turn Mower

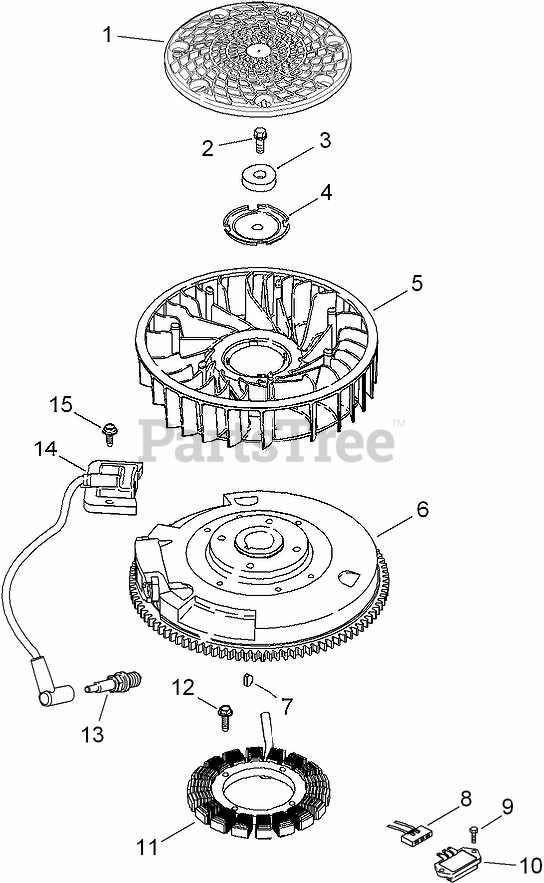

IGNITION AND ELECTRICAL ASSEMBLY KOHLER SV710-0027 Parts Diagram

  • Title

1

Kohler 32 162 03-S

SCREEN-GRASS

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 7

0

2

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 12

0

3

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

4

Kohler 20 146 05-S

PLATE-MOUNTING, FAN

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 11

0

5

Kohler 32 157 01-S

Fan

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

Kohler 32 025 16-S

FLYWHEEL ASM (SV710/SV730)
(Superseded to 32 025 22-S)

Note: Obtain parts from www.kohlerplus.com

$347.99

$

In Stock, only 1 left!

0

7

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 6

0

8

Kohler 25 155 41-S

CONNECTOR (3 CONTACT)

Note: Obtain parts from www.kohlerplus.com

$24.99

$

In Stock, only 1 left!

0

9

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 41 403 10-S

RECTIFIER/REGULATOR
(Superseded to 25 403 37-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 237878-S

15 AMP STATOR KIT (INCLUDES 25 452 01-S)

Note: Obtain parts from www.kohlerplus.com

$149.99

$

In Stock, Qty 8

0

12

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

13

Kohler 25 132 14-S

SPARK PLUG (R F I)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

Usually ships in 2-5 days

0

14

Kohler 24 584 45-S

MODULE-IGNITION (C D I FIXED)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

15

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

Kohler 25 454 03-S

TIE-WIRE

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 454 03-S

TIE-WIRE

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 454 05-S

TIE

Note: Not illustrated

$2.49

$

In Stock, only 2 left!

0

Kohler 25 454 05-S

TIE

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

Kohler 32 176 14-S

WIRE HARNESS KIT

Note: Not illustrated

$

$

Not available

Kohler 32 176 14-S

WIRE HARNESS KIT

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 25 452 01-S

Terminal

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 1 left!

0

Kohler 25 452 01-S

Terminal

Note: Not illustrated

$5.49

$

In Stock, only 1 left!

0
