74381 (Z 4202) - Toro 42" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) FUEL SYSTEM ASSEMBLY KOHLER SV710-0027 Parts Diagram

42" TimeCutter Zero-Turn Mower

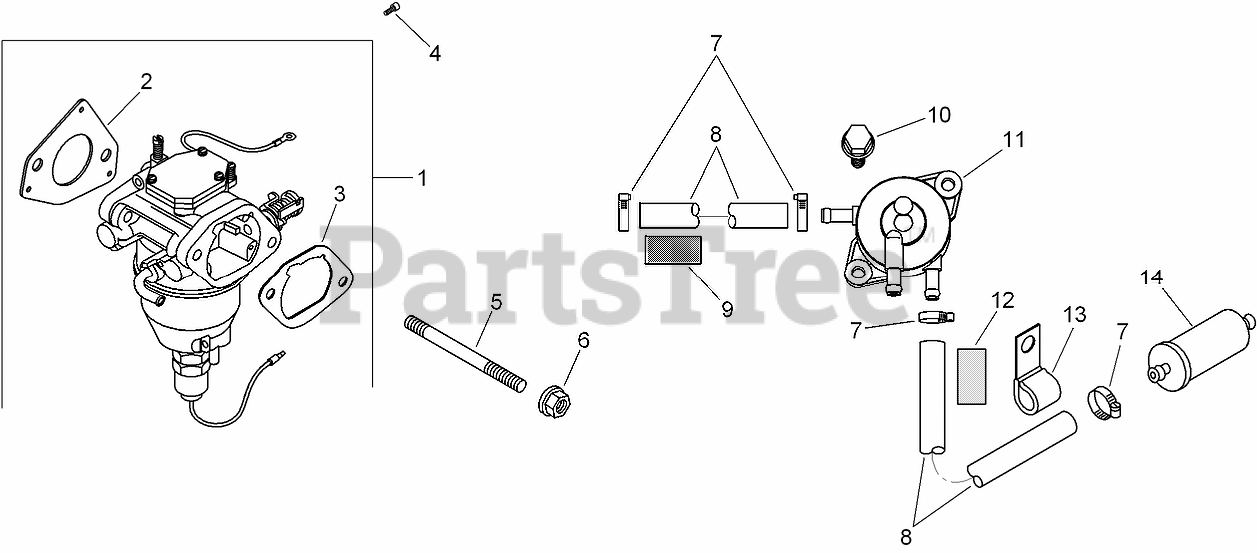

FUEL SYSTEM ASSEMBLY KOHLER SV710-0027 Parts Diagram

  • Title

1

Kohler 32 853 11-S

CARBURETOR KIT-19mm KEIHIN (INCLUDES 2, 3)

Note: Obtain parts from www.kohlerplus.com

$359.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 8

0

3

Kohler 24 041 52-S

GASKET-CARBURETOR
(Superseded to 24 041 91-S)

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 7

0

4

Kohler 24 086 05-S

Screw-Stop, Throttle

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

5

Kohler M-629105-S

STUD (M6X1.0X106)
(Superseded to 25 072 25-S)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 2 left!

0

6

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

7

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 3 left!

0

8

Kohler 25 111 34-S

LINE-FUEL (24.0 CUT TO LENGTH)
(Superseded to 25 111 81-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 4 left!

0

9

Kohler 25 431 10-S

SLEEVE-ABRASION, ANTI
(Superseded to 25 431 12-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, only 1 left!

0

10

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 18

0

12

Kohler 25 431 14-S

SLEEVE-ABRASION, ANTI
(Superseded to 25 431 12-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, only 1 left!

0

13

Kohler 47 154 01-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 4 left!

0

14

Kohler 25 050 22-S

FILTER-FUEL

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, Qty 20+

0

Kohler 24 757 36-S

CHOKE REPAIR/SERVICE KIT

Note: Not illustrated

$116.99

$

In Stock, only 1 left!

0

Kohler 24 757 36-S

CHOKE REPAIR/SERVICE KIT

Note: Obtain parts from www.kohlerplus.com

$116.99

$

In Stock, only 1 left!

0

Kohler 24 757 38-S

GASKET REPAIR/SERVICE KIT

Note: Not illustrated

$32.99

$

In Stock, only 1 left!

0

Kohler 24 757 38-S

GASKET REPAIR/SERVICE KIT

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, only 1 left!

0

Kohler 24 757 44-S

FLOAT REPAIR KIT

Note: Not illustrated

$94.99

$

In Stock, only 1 left!

0

Kohler 24 757 44-S

FLOAT REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$94.99

$

In Stock, only 1 left!

0

Kohler 24 757 45-S

SOLENOID VALVE REPAIR KIT

Note: Not illustrated

$246.99

$

In Stock, only 1 left!

0

Kohler 24 757 45-S

SOLENOID VALVE REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$246.99

$

In Stock, only 1 left!

0

Kohler 24 757 46-S

Overhaul Kit w/Gaskets

Note: Not illustrated

$137.99

$

In Stock, only 1 left!

0

Kohler 24 757 46-S

Overhaul Kit w/Gaskets

Note: Obtain parts from www.kohlerplus.com

$137.99

$

In Stock, only 1 left!

0
