74380 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 310000001 - 310999999) (2010) SEAT ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

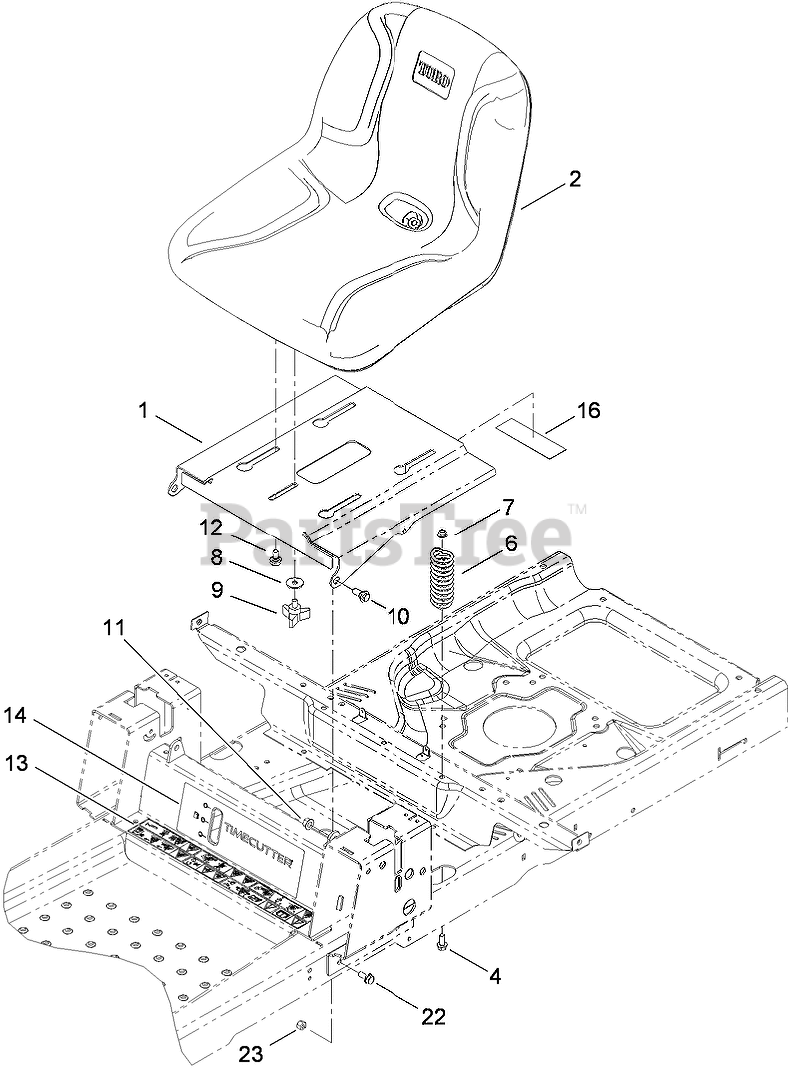

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 115-2465-03

BASE-SEAT

$122.99

$

In Stock, only 1 left!

0

2

Toro 117-1225

SEAT-15 INCH
(Superseded to 117-1226)

$

$

Not available

4

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

6

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

9

Toro 92-9674

KNOB

$14.99

$

In Stock, only 4 left!

0

10

Toro 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, Qty 12

0

11

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, Qty 13

0

13

Toro 115-2469

DECAL-DANGER

$38.99

$

Usually ships in 3-6 days

0

14

Toro 115-2450

DECAL

$23.99

$

Usually ships in 3-6 days

0

16

Toro 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0

22

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
