74380 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000326 - 290999999) (2009) STARTER ASSEMBLY KOHLER SV590-0213 Parts Diagram

42" TimeCutter Zero-Turn Mower

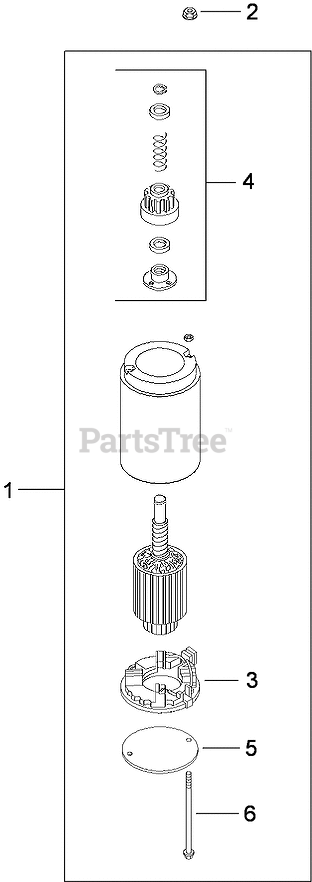

STARTER ASSEMBLY KOHLER SV590-0213 Parts Diagram

  • Title
1

Kohler 20 098 05-S

STARTER ASM (SERVICE WITH REF 3-6)
(Superseded to 20 098 11-S)

Note: Obtain parts from www.kohlerplus.com

$110.99

$

In Stock, only 3 left!

0

2

Kohler 25 100 31-S

Nut-Flange, Hex Serrated (10-24)
(Superseded to 25 100 56-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 10

0

3

Kohler 12 221 02-S

Brush Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 20 755 12-S

DRIVE KIT (J E)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 20 227 01-S

CAP-END, DRIVE (J E)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

Kohler 20 211 02-S

BOLT-THRU

Note: Obtain parts from www.kohlerplus.com

$

$

Not available
