74380 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000326 - 290999999) (2009) 42 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

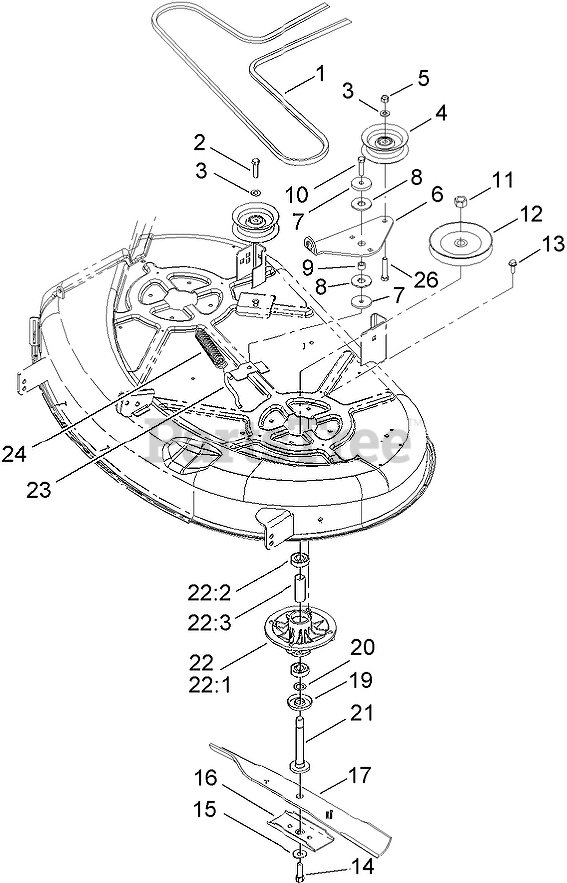

42 INCH DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 110-6871

V-BELT

$87.99

$

In Stock, Qty 7

0

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

4

Toro 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

6

Toro 114-8540

ARM-IDLER

$21.99

$

In Stock, only 1 left!

0

7

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

8

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

9

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 5

0

10

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

12

Toro 110-6864

PULLEY
(Superseded to 139-2433)

$37.99

$

In Stock, Qty 20+

0

13

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

15

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Toro 106-2248-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 18

0

17

Toro 106-2247-03

BLADE

$31.99

$

In Stock, Qty 11

0

19

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

20

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 12

0

21

Toro 117-1192

SHAFT-SPINDLE

$47.99

$

In Stock, Qty 6

0

22

SPINDLE ASM

Note: Not serviced separately

$

$

Not available

22:1

Toro 88-4510

HOUSING-SPINDLE

$106.99

$

In Stock, Qty 7

0

22:2

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

22:3

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 15

0

23

Toro 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 8

0

24

Toro 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

26

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
