74380 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) FRAME ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

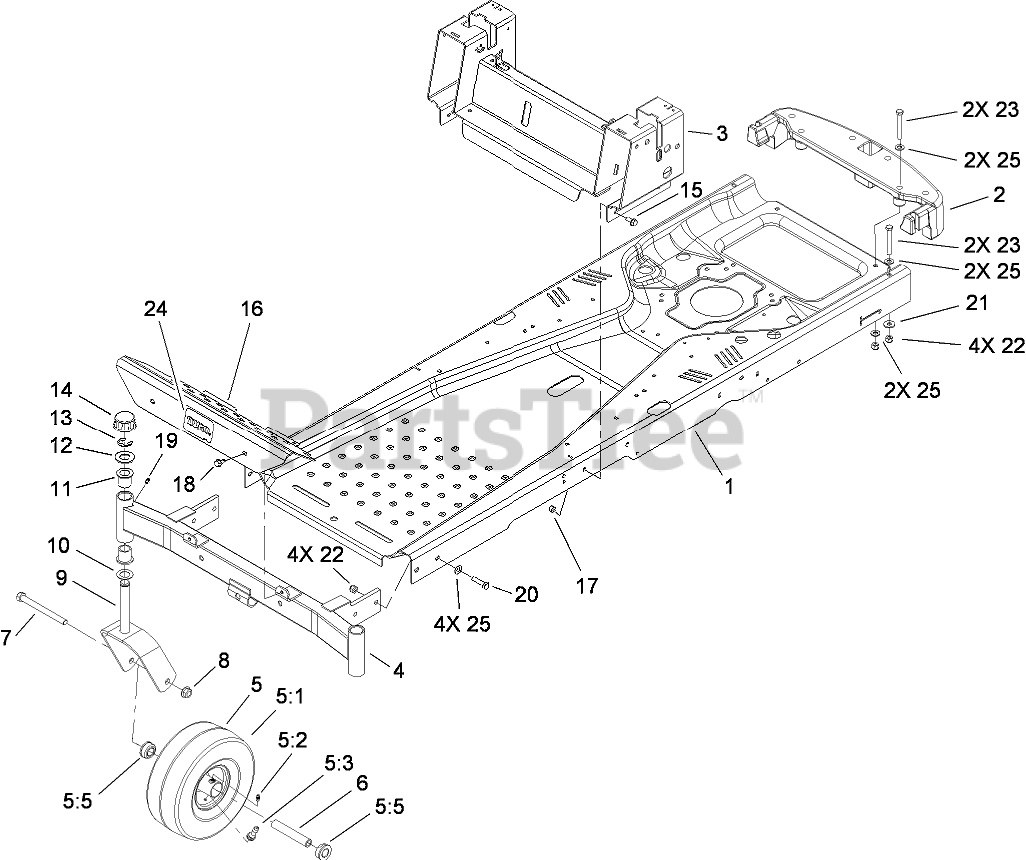

FRAME ASSEMBLY Parts Diagram

  • Title

$878.99

$

Usually ships in 3-6 days

0

2

Toro 110-6899-03

BUMPER-REAR

$231.99

$

Usually ships in 3-6 days

0

3

Toro 115-2468-03

SEAT AND CONTROL ASM
(Superseded to 115-5041-03)

$

$

Not available

4

Toro 108-7882-01

FRONT AXLE ASM

$

$

Not available

5

Toro 105-3471

FRONT WHEEL AND TIRE ASM

$79.99

$

In Stock, only 2 left!

0

5:1

$82.99

$

In Stock, only 1 left!

0

5:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

5:5

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

5:99

Toro 93-4244

TUBE-INNER (W/VALVE)

Note: Not illustrated

$16.99

$

In Stock, only 2 left!

0

6

Toro 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 10

0

7

Toro 325-22

SCREW-HH

$8.49

$

In Stock, Qty 7

0

8

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

9

Toro 108-7851-01

CASTER FORK ASM

$71.99

$

In Stock, only 4 left!

0

10

Toro 110-6767

WASHER-THRUST

$1.99

$

In Stock, Qty 8

0

11

Toro 1-303514

BEARING-FLANGED

$12.99

$

In Stock, only 1 left!

0

12

Toro 104-8076

WASHER

$5.49

$

In Stock, Qty 10

0

13

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

14

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 6

0

15

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

16

Toro 108-7855-03

FOOTREST

$

$

Not available

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

19

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

23

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

24

Toro 99-2385

DECAL

$4.99

$

In Stock, only 2 left!

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0
