74376 (Z 5035) - Toro 50" TimeCutter Zero-Turn Mower (SN: 310000001 - 310999999) (2010) ENGINE & CLUTCH ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

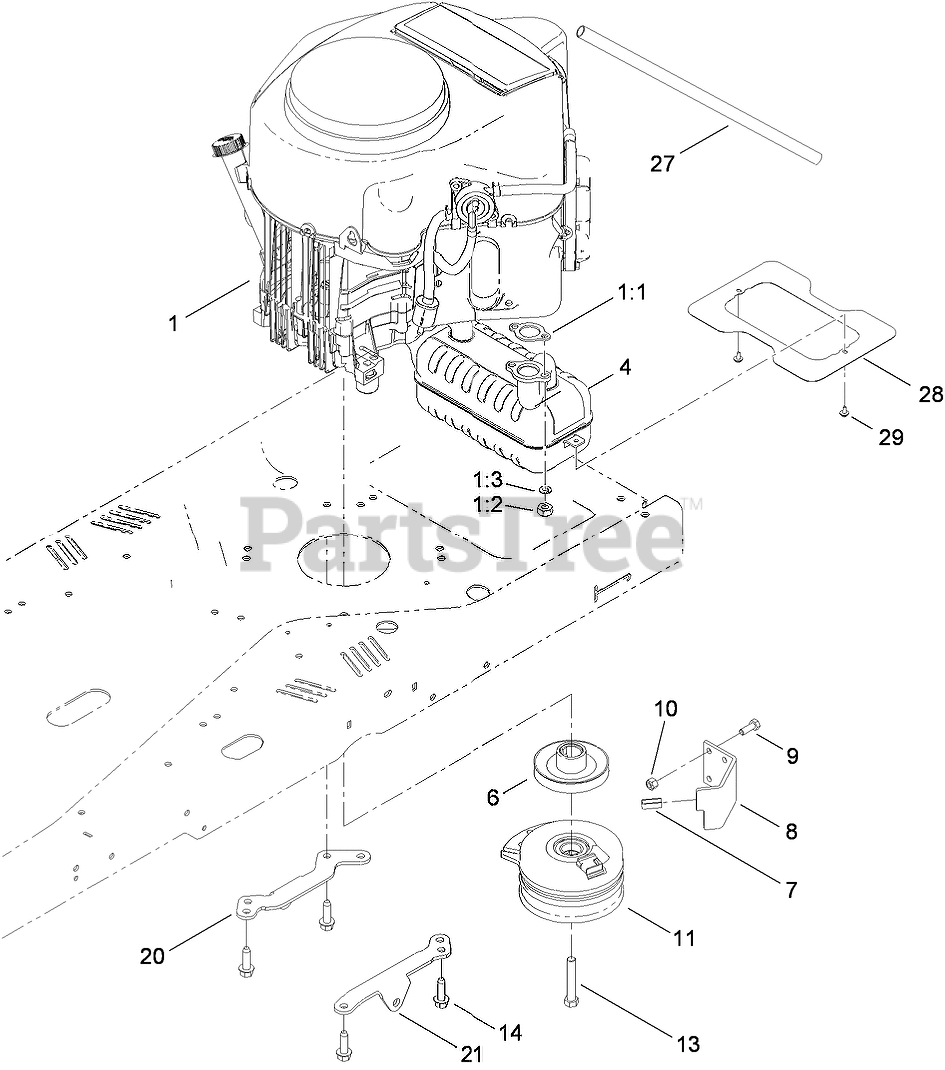

ENGINE & CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FR691V-AS07-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FR691V-AS07-R

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Toro 112-9820

GASKET-EXHAUST
(Superseded to 1-653313)

$4.99

$

Usually ships in 3-6 days

0

1:2

Toro 112-9834

NUT

$

$

Not available

1:3

Toro 112-9835

WASHER-LOCK
(Superseded to 115-6626)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 117-7256

MUFFLER-KAWASAKI

$224.99

$

In Stock, only 1 left!

0

6

Toro 114-1622

PULLEY-ENGINE

$135.99

$

Usually ships in 3-6 days

0

7

Toro 112-4033

BUMPER-PAD

$7.99

$

In Stock, only 3 left!

0

8

Toro 110-6896

STOP-CLUTCH

$12.99

$

Usually ships in 3-6 days

0

9

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 110-6766

CLUTCH-ELECTRIC, PTO

$573.99

$

Usually ships in 3-6 days

0

13

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

14

Toro 323-50

BOLT-HH

$1.49

$

In Stock, Qty 17

0

20

Toro 110-6798

SUPPORT-HYDRO, RH

$29.99

$

In Stock, only 3 left!

0

21

Toro 110-6799

SUPPORT-HYDRO, LH

$29.99

$

In Stock, Qty 11

0

27

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

In Stock, only 1 left!

0

28

Toro 114-8544-03

SHIELD-HEAT

$19.99

$

In Stock, only 4 left!

0

29

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0
