74375 (Z 5060) - Toro 50" TimeCutter Zero-Turn Mower (SN: 290000200 - 290999999) (2009) DECK LIFT AND SEAT SUPPORT ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

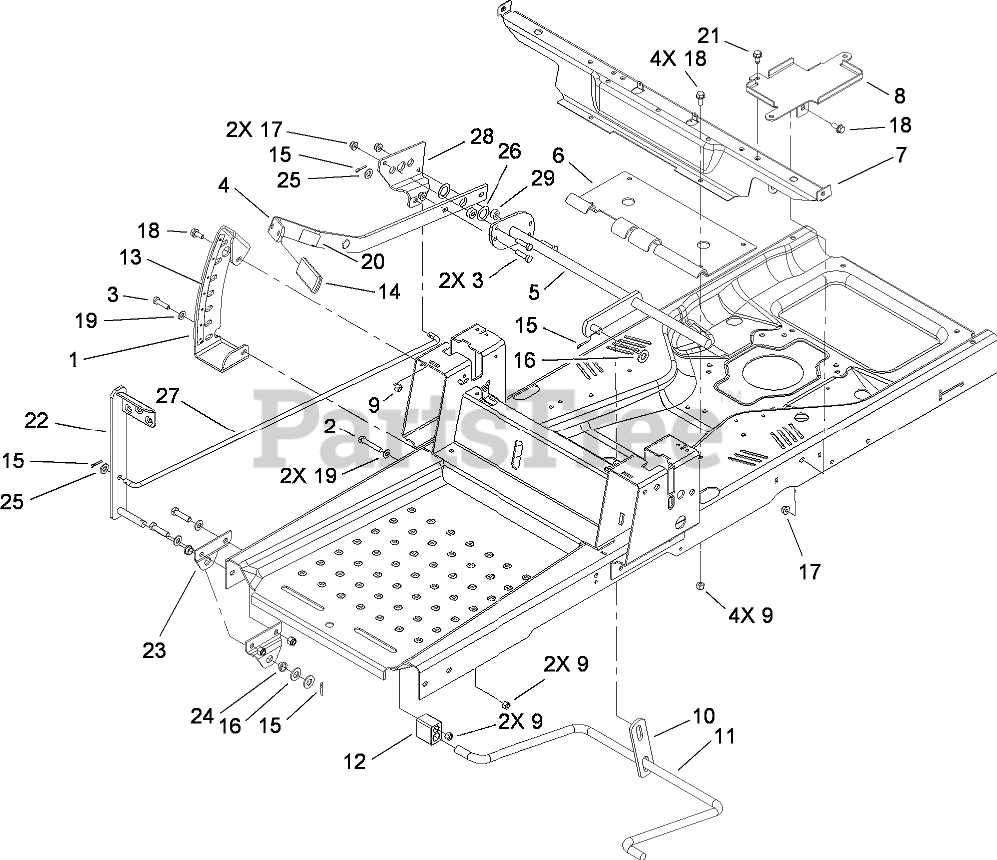

DECK LIFT AND SEAT SUPPORT ASSEMBLY Parts Diagram

  • Title
1

Toro 112-4027-03

SECTOR-HOC

$34.99

$

Usually ships in 3-6 days

0

2

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

3

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Toro 112-3960-03

LIFT ARM ASM

$55.99

$

Usually ships in 3-6 days

0

5

Toro 108-7841-03

LIFT LEVER ASM

$

$

Not available

6

Toro 110-6800-03

PLATE-LIFT

$

$

Not available

7

Toro 110-6805-03

BRACKET-SEAT/PODS

$104.99

$

Usually ships in 3-6 days

0

8

Toro 110-1937-03

TRAY-BATTERY

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 108-7840

LINK-LIFT
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 8

0

11

Toro 108-7839

ARM-LIFT, REAR
(Superseded to 138-7234)

$35.99

$

Usually ships in 3-6 days

0

12

Toro 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, only 2 left!

0

13

Toro 112-9802

DECAL-HOC

$

$

Not available

14

Toro 105-3450

GRIP-LEVER, LIFT

$9.49

$

In Stock, only 3 left!

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 106-8743

DECAL-HOC

$2.99

$

Usually ships in 3-6 days

0

21

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

22

Toro 112-4018-03

PEDAL ASM

$

$

Not available

23

Toro 112-3954-03

BRACKET-FOOTLIFT

$

$

Not available

24

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

26

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

27

Toro 112-3958

ROD-LIFT

$41.99

$

Usually ships in 3-6 days

0

28

Toro 112-3959

PLATE-FOOTLIFT

$

$

Not available

29

Toro 112-3961

SPACER

$12.99

$

Usually ships in 3-6 days

0
