74375 (Z 5060) - Toro 50" TimeCutter Zero-Turn Mower (SN: 290000001 - 290000199) (2009) ELECTRICAL ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

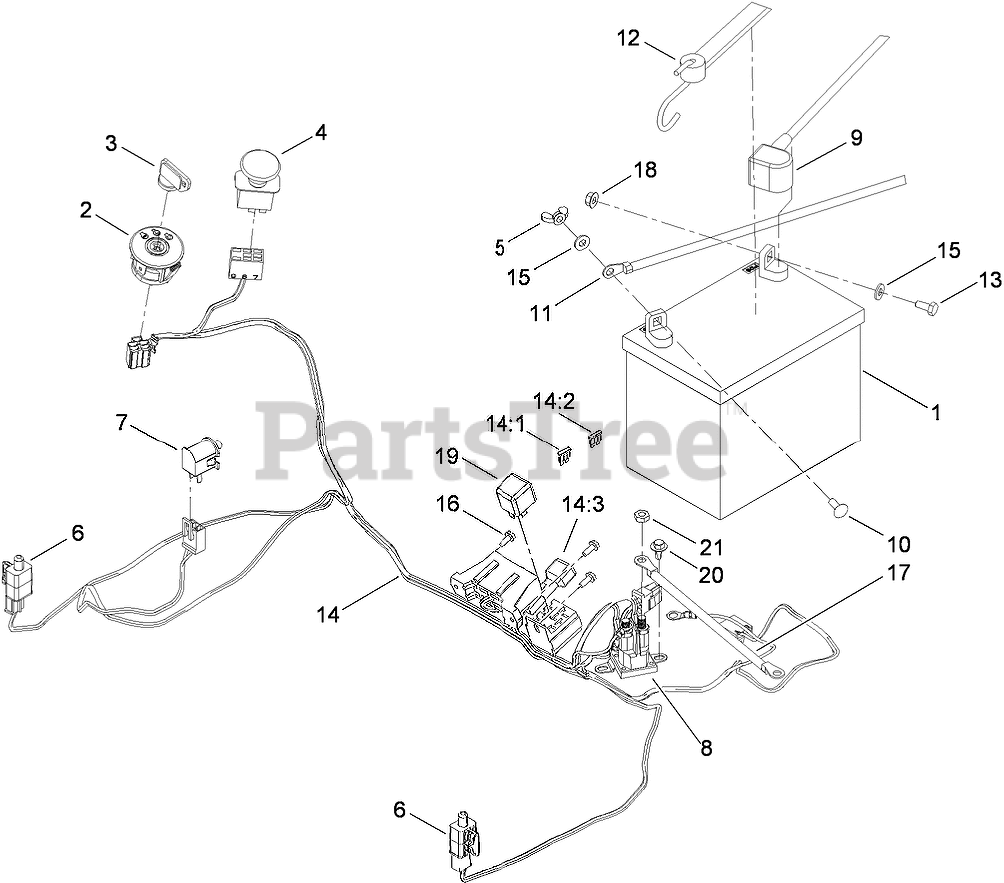

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2493

BATTERY
(Superseded to 105-1692)

$

$

Not available

2

Toro 110-6764

SWITCH-IGNITION

$28.99

$

In Stock, only 2 left!

0

3

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

4

Toro 93-9998

SWITCH-PTO

$45.99

$

In Stock, only 1 left!

0

5

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

6

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 11

0

7

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

8

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 17

0

9

Toro 110-6794

CABLE-BATTERY, RED

$33.99

$

In Stock, only 1 left!

0

10

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 110-6793

CABLE-BATTERY, BLACK

$29.99

$

Usually ships in 3-6 days

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 117-1276

HARNESS-WIRING
(Superseded to 117-1216)

$284.99

$

In Stock, only 1 left!

0

14:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

14:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

14:3

Toro 100-4918

DIODE

$21.99

$

In Stock, only 1 left!

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

17

Toro 110-6792

CABLE-BATTERY, RED

$33.99

$

Usually ships in 3-6 days

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

19

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

20

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

21

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0
