74375 (Z 5060) - Toro 50" TimeCutter Zero-Turn Mower (SN: 290000001 - 290000199) (2009) CONTROL ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

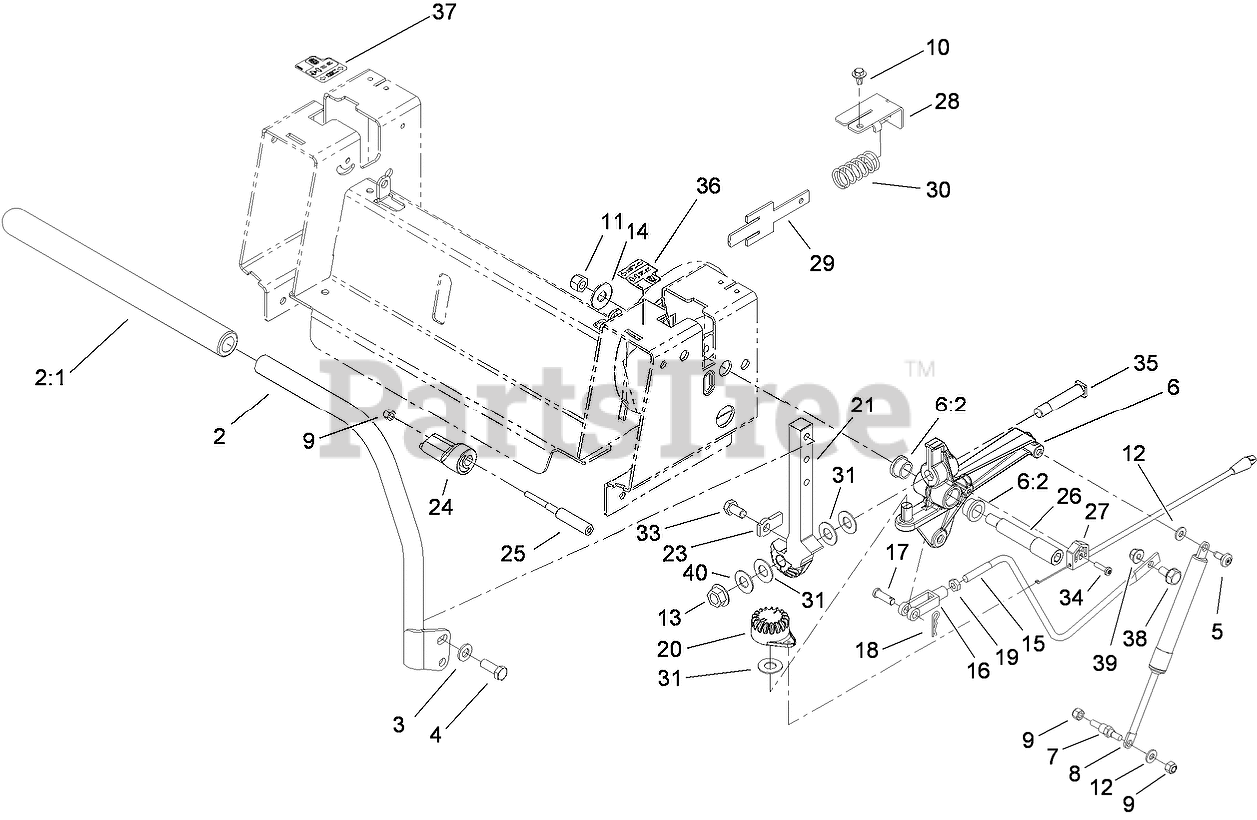

CONTROL ASSEMBLY Parts Diagram

  • Title

1:1

Toro 108-6187

GRIP

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0

1

Toro 110-6814

RH HANDLE ASM
(Superseded to 117-5339)

Note: Not illustrated

$80.99

$

Usually ships in 3-6 days

0

2

Toro 110-6815

LH HANDLE ASM

$79.99

$

Usually ships in 3-6 days

0

2:1

Toro 108-6187

GRIP

$23.99

$

Usually ships in 3-6 days

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 13

0

6

Toro 110-6828

ACTIVATOR ARM ASM

$57.99

$

In Stock, only 1 left!

0

6:2

Toro 105-3455

BUSHING

$3.49

$

In Stock, only 4 left!

0

7

Toro 110-6810

STUD-DAMPER
(Superseded to 138-7215)

$2.99

$

In Stock, only 2 left!

0

8

Toro 103-2913

Damper-Control, Motion
(Superseded to 109-2339)

$82.99

$

In Stock, Qty 7

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

11

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

14

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

15

Toro 110-6693

LINK-HYDRO

$17.99

$

Usually ships in 3-6 days

0

16

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

17

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

18

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

19

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

20

Toro 110-6845

GEAR-CONTROL

$

$

Not available

21

Toro 110-6783-03

ARM-ACTUATOR, LH
(Superseded to 110-6783-05)

$73.99

$

In Stock, only 2 left!

0

22

Toro 110-6782-03

ARM-ACTUATOR, RH
(Superseded to 110-6782-05)

Note: Not illustrated

$73.99

$

In Stock, only 1 left!

0

23

Toro 115-5023

TAB-STOP

$5.49

$

Usually ships in 3-6 days

0

24

Toro 110-6873

ECCENTRIC

$5.49

$

Usually ships in 3-6 days

0

25

Toro 110-6874

SCREW-ECCENTRIC

$9.49

$

Usually ships in 3-6 days

0

26

Toro 110-6875

BOLT-SHOULDER

$28.99

$

Usually ships in 3-6 days

0

27

Toro 110-6858

CABLE-BRAKE, PARKING

$14.99

$

In Stock, only 1 left!

0

28

Toro 110-6751

BRACKET-RETURN

$6.99

$

Usually ships in 3-6 days

0

29

Toro 110-6750

PLATE-RETURN

$6.99

$

Usually ships in 3-6 days

0

30

Toro 110-6752

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

31

Toro 110-6894

WASHER-PIVOT

$1.49

$

In Stock, only 1 left!

0

33

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

34

Toro 110-0863

SCREW-TORX

$2.99

$

In Stock, only 1 left!

0

35

Toro 110-6784

BOLT-SHOULDER

$

$

Not available

36

Toro 112-9750

DECAL-CONTROL LEVER, LH

$4.99

$

Usually ships in 3-6 days

0

37

Toro 112-9751

DECAL-CONTROL LEVER, RH

$4.99

$

Usually ships in 3-6 days

0

38

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

39

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Toro 112-9771

WASHER-TEFLON

$2.99

$

In Stock, Qty 18

0
