74374 (Z 5040) - Toro 50" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) STYLING AND FUEL SYSTEM ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

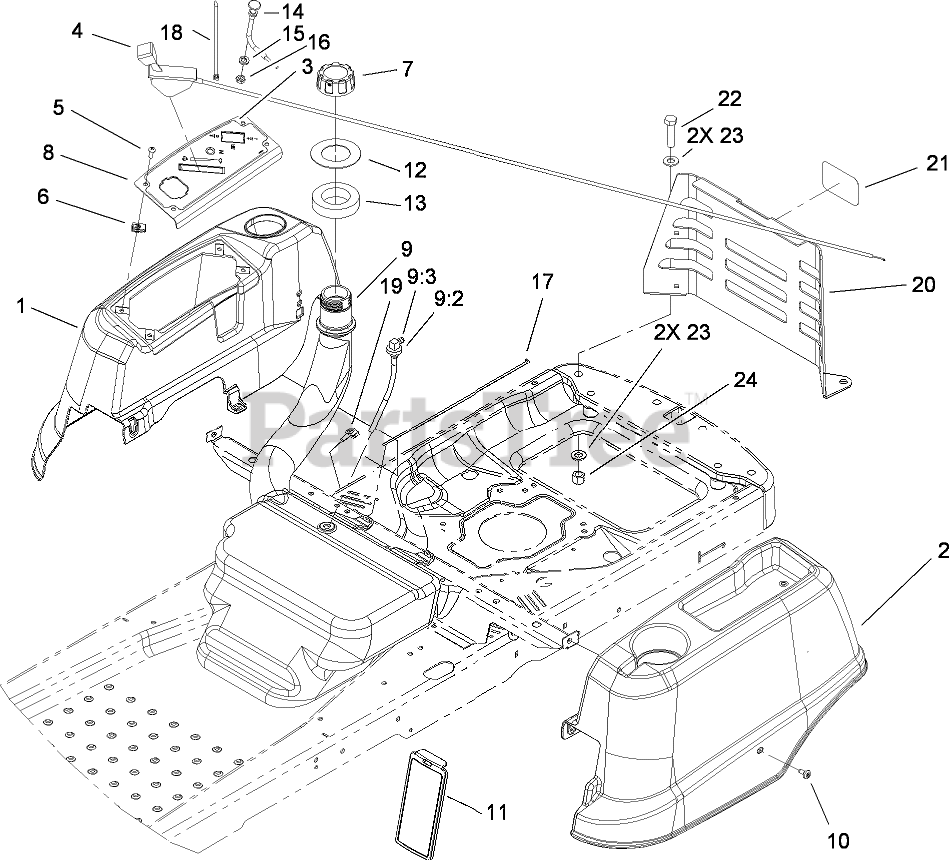

STYLING AND FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 110-1901

POD-RH
(Superseded to 117-1219)

$155.99

$

Usually ships in 3-6 days

0

2

Toro 110-1902

POD-LH
(Superseded to 117-1220)

$155.99

$

In Stock, only 1 left!

0

3

Toro 115-2501

DECAL-PANEL, CONTROL

$42.99

$

Usually ships in 3-6 days

0

4

Toro 112-9752

CABLE-THROTTLE

$41.99

$

Usually ships in 3-6 days

0

5

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

7

Toro 93-7198

CAP-GAS

$15.99

$

In Stock, only 1 left!

0

8

Toro 110-1927-03

PANEL-CONTROL

$16.99

$

Usually ships in 3-6 days

0

9

Toro 110-6890

FUEL TANK ASM

$210.99

$

In Stock, only 1 left!

0

9:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

9:3

Toro 95-3970

FITTING-90 DEGREE

$68.99

$

In Stock, only 1 left!

0

10

Toro 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 7

0

11

Toro 110-6786

COVER-CONTROL

$14.99

$

In Stock, only 1 left!

0

12

Toro 112-9760

WASHER-RUBBER

$5.49

$

In Stock, Qty 17

0

13

Toro 55-9310

SEAL-FOAM

$

$

Not available

14

Toro 112-9753

CABLE-CHOKE

$45.99

$

In Stock, Qty 18

0

15

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

16

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

17

Toro 100-9064

TIE-CABLE

$1.99

$

In Stock, Qty 5

0

18

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

19

Toro 32180-037

CLIP-HARNESS

$1.99

$

In Stock, Qty 6

0

20

Toro 110-6685-03

SUPPORT-COVER, REAR

$

$

Not available

21

Toro 99-2385

DECAL

$4.99

$

In Stock, only 2 left!

0

22

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

23

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
