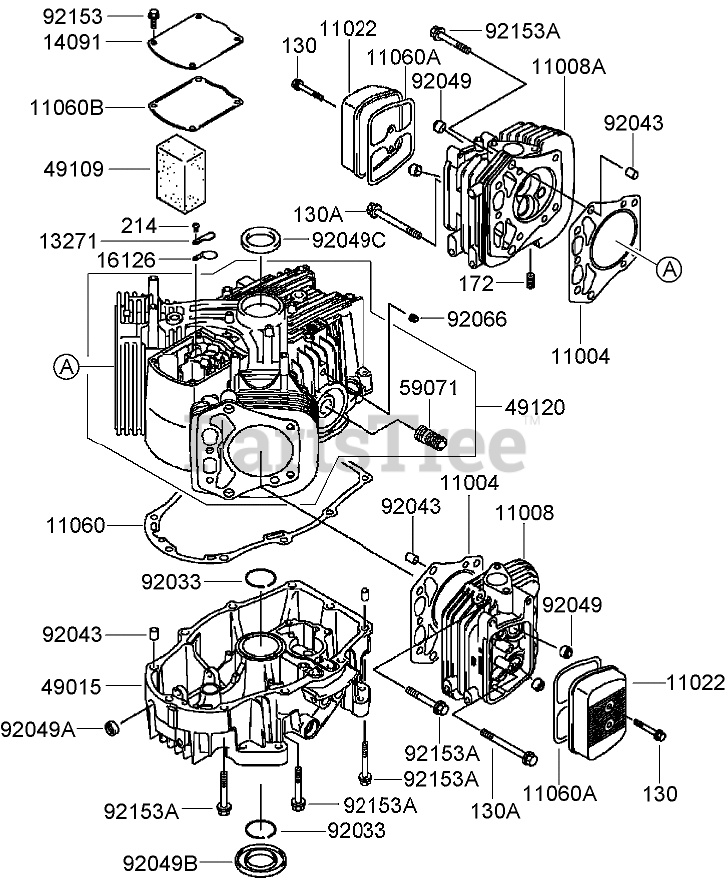

74374 (Z 5040) - Toro 50" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH641V-AS31 Parts Diagram

50" TimeCutter Zero-Turn Mower

CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH641V-AS31 Parts Diagram

  • Title

11004

Kawasaki 11004-7006

Gasket-Head
(Superseded to 11004-7004)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-7023

HEAD-CYLINDER, No.2
(Superseded to 11008-7012)

Note: Obtain parts from www.kawpowerepc.com

$278.99

$

In Stock, only 1 left!

0

11008A

Kawasaki 11008-7024

HEAD-CYLINDER, No.1
(Superseded to 11008-7013)

Note: Obtain parts from www.kawpowerepc.com

$277.99

$

Usually ships in 2-5 days

0

11022

Toro 11022-7002

Case-Rocker

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11060

Kawasaki 11060-7012

Gasket-Cover, Crankcase
(Superseded to 11061-7098)

Note: Obtain parts from www.kawpowerepc.com

$48.99

$

In Stock, Qty 19

0

11060A

Kawasaki 11060-7013

Gasket-Case, Rocker

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-7014

Gasket-Breather

Note: Obtain parts from www.kawpowerepc.com

$6.49

$

In Stock, only 4 left!

0

13271

Kawasaki 13271-7006

Plate

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 3 left!

0

14091

Kawasaki 14091-7004

Cover

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 10

0

16126

Kawasaki 16126-7001

Valve

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, only 4 left!

0

49015

Kawasaki 49015-7064

COVER-CRANKCASE
(Superseded to 49015-6260)

Note: Obtain parts from www.kawpowerepc.com

$199.99

$

Usually ships in 2-5 days

0

49109

Kawasaki 49109-7003

Element-Breather
(Superseded to 99999-7072)

Note: Obtain parts from www.kawpowerepc.com

$14.99

$

In Stock, only 2 left!

0

49120

Kawasaki 49120-7092

CRANKCASE
(Superseded to 49120-0881)

Note: Obtain parts from www.kawpowerepc.com

$563.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-2079

Joint

Note: Obtain parts from www.kawpowerepc.com

$6.49

$

In Stock, Qty 8

0

92033

Kawasaki 92033-7004

Ring-Snap

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 12

0

92043

Kawasaki 92043-7001

Pin

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 7

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7011

SEAL-OIL, S D (35X62X8 L H S)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7014

SEAL-OIL, S D (35X52X7 R H S)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7002

Plug
(Superseded to 92066-0881)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 6

0

92153

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153A

Kawasaki 92153-7054

BOLT (8X50)

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 5

0

130

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 3 left!

0

130A

Kawasaki 130CA0875

BOLT-FLANGED (8X75)
(Superseded to 130T0875)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 9

0

172

Toro 172G0818

Bolt-Stud (8X18)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

214

Kawasaki 214B0408

SCREW-PAN (4X8)
(Superseded to 214AA0408)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 5

0
