74374 (Z 5040) - Toro 50" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH641V-AS31 Parts Diagram

50" TimeCutter Zero-Turn Mower

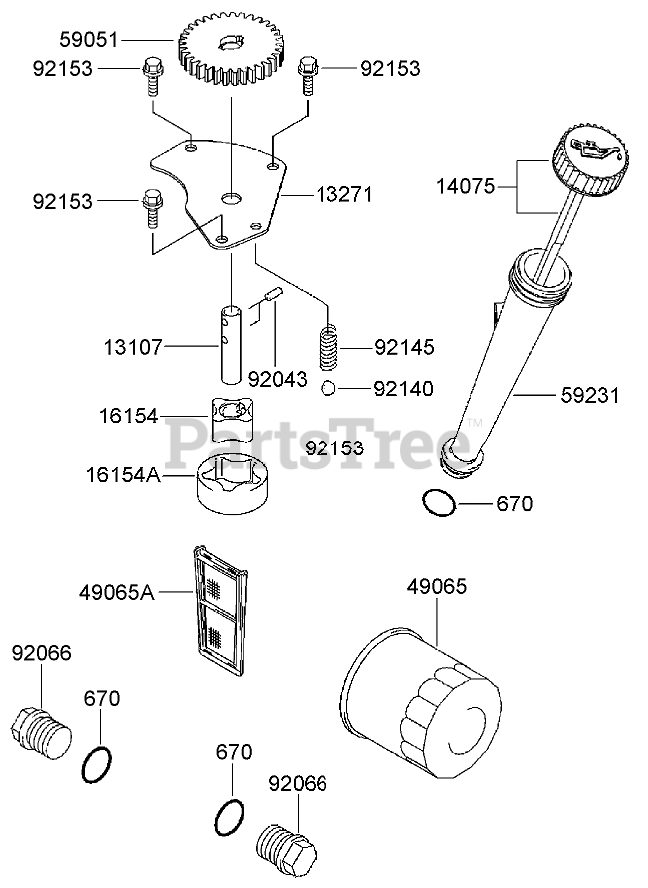

LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH641V-AS31 Parts Diagram

  • Title
13107

Kawasaki 13107-7009

Shaft
(Superseded to 13107-0749)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, only 2 left!

0

13271

Kawasaki 13271-7005

Plate

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

Usually ships in 2-5 days

0

14075

Kawasaki 14075-7008

Cap ASM
(Superseded to 14075-7002)

Note: Obtain parts from www.kawpowerepc.com

$11.99

$

In Stock, only 1 left!

0

16154

Kawasaki 16154-7007

ROTOR-PUMP (IN)

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

In Stock, Qty 6

0

16154A

Kawasaki 16154-7008

ROTOR-PUMP (OUT)

Note: Obtain parts from www.kawpowerepc.com

$19.99

$

In Stock, only 3 left!

0

49065

Toro 49065-2078

Filter-Oil
(Superseded to 49065-2071)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

49065A

Kawasaki 49065-7003

Filter-Oil

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 15

0

59051

Kawasaki 59051-7011

Gear-Spur

Note: Obtain parts from www.kawpowerepc.com

$65.99

$

In Stock, only 1 left!

0

59231

Kawasaki 59231-7006

FILLER
(Superseded to 59231-7002)

Note: Obtain parts from www.kawpowerepc.com

$7.49

$

In Stock, Qty 13

0

92043

Kawasaki 92043-7003

Pin

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92066

Kawasaki 92066-7003

Plug
(Superseded to 920660774)

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, Qty 8

0

92140

Kawasaki 92140-7003

Ball

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 11

0

92145

Kawasaki 92145-7002

Spring

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

670

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 20+

0
