74373 (Z 5030) - Toro 50" TimeCutter Zero-Turn Mower (SN: 290004013 - 290999999) (2009) HEAD, VALVE & BREATHER ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

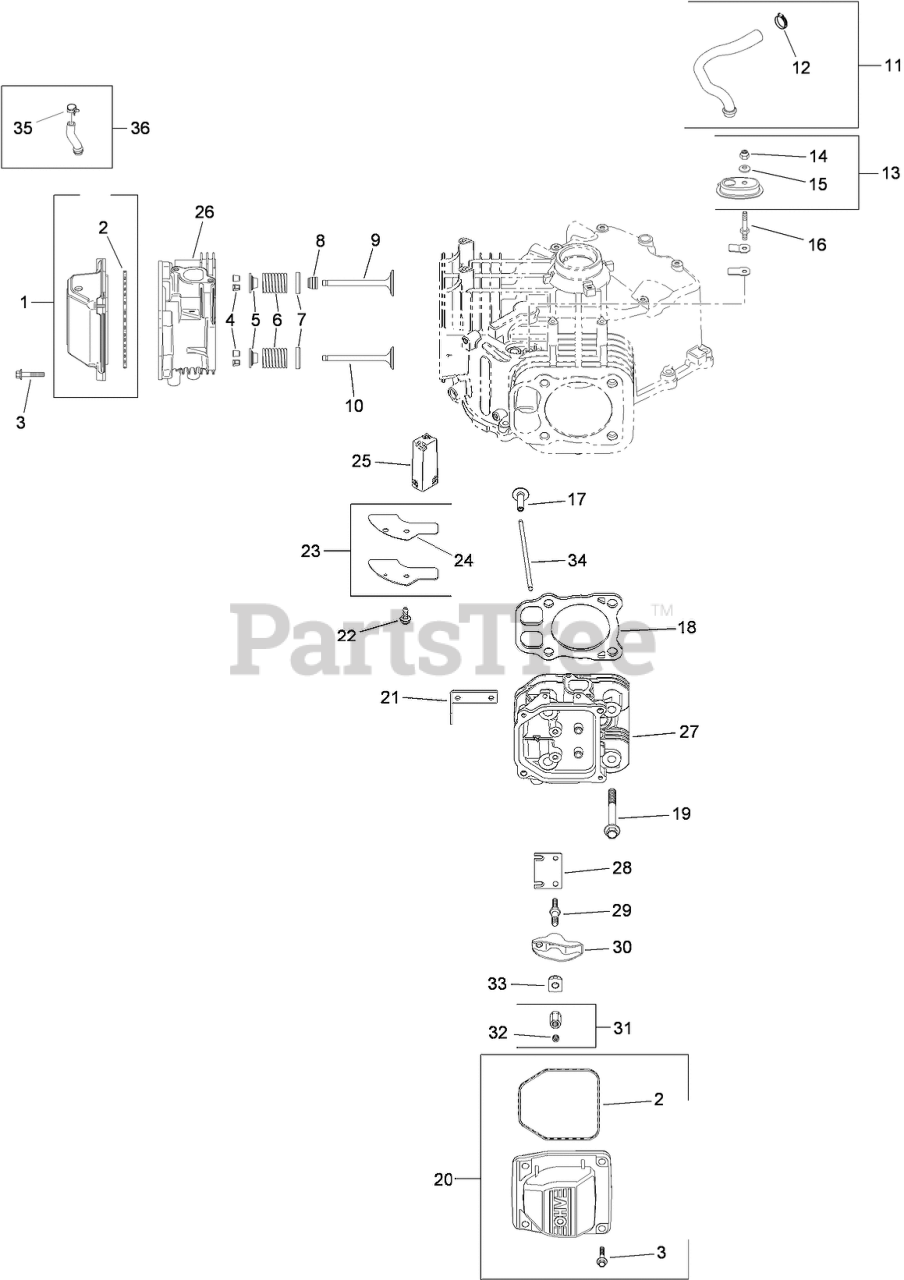

HEAD, VALVE & BREATHER ASSEMBLY Parts Diagram

  • Title

1

Kohler 32 096 06-S

BREATHER VALVE COVER KIT (INCLUDES REF 2)

Note: Obtain parts from www.kohlerplus.com

$29.99

$

In Stock, only 1 left!

0

2

Kohler 24 153 30-S

O-RING
(Superseded to 25 153 24-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

3

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 12 755 03-S

RETAINER KIT

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 2 left!

0

5

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, Qty 5

0

6

Kohler 24 089 02-S

SPRING-VALVE

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 2 left!

0

7

Kohler 235011-S

RETAINER-SPRING

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

8

Kohler 66 032 05-S

SEAL-STEM, VALVE
(Superseded to 25 032 14-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, only 2 left!

0

9

Kohler 24 017 01-S

VALVE-INTAKE (STD)

Note: Obtain parts from www.kohlerplus.com

$30.99

$

In Stock, Qty 17

0

10

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 4 left!

0

11

Kohler 32 326 06-S

BREATHER HOSE KIT (INCLUDES REF 12)

Note: Obtain parts from www.kohlerplus.com

$18.99

$

In Stock, only 1 left!

0

12

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 2 left!

0

13

Kohler 32 081 02-S

BREATHER HOUSING KIT (INCLUDES REF 14, 15)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

14

Kohler M-547050-S

NUT-LOCK (M5X.8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

15

Kohler 32 468 01-S

WASHER-SEALING

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

16

Kohler 32 072 03-S

STUD-COVER, BREATHER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

17

Kohler 32 019 02-S

TAPPET KIT

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 3 left!

0

18

Kohler 32 841 01-S

CYLINDER HEAD GASKET KIT
(Superseded to 32 841 02-S)

Note: Obtain parts from www.kohlerplus.com

$19.99

$

In Stock, Qty 20+

0

19

Kohler 12 086 16-S

SCREW-FLANGE (M10X1.5X90)
(Superseded to 62 086 08-S)

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 5

0

20

Kohler 24 755 141-S

PLAIN ROCKER COVER KIT (INCLUDES REF 2, 3)

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, only 2 left!

0

21

Kohler 25 445 01-S

STRAP-LIFTING
(Superseded to 25 445 03-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

22

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 15

0

23

Kohler 32 096 04-S

BREATHER COVER KIT (INCLUDES REF 24)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

24

Kohler 32 041 01-S

GASKET-COVER, BREATHER

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

25

Kohler 32 050 01-S

FILTER-BREATHER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 2 left!

0

26

Kohler 32 318 13-S

CYLINDER HEAD NO.1 ASM
(Superseded to 32 818 01-S)

Note: Obtain parts from www.kohlerplus.com

$198.99

$

Usually ships in 2-5 days

0

27

Kohler 32 318 14-S

CYLINDER HEAD NO.2 ASM
(Superseded to 32 818 02-S)

Note: Obtain parts from www.kohlerplus.com

$198.99

$

In Stock, only 1 left!

0

28

Kohler 32 146 09-S

PLATE-GUIDE

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 5

0

29

Kohler 32 072 04-S

STUD-ROCKER

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 3 left!

0

30

Kohler 32 186 03-S

ARM-ROCKER

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

31

Kohler 32 100 05-S

HEX NUT ASM (INCLUDES REF 32)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 7

0

32

Kohler 25 086 168-S

SCREW-SET

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

33

Kohler 25 599 01-S

PIVOT-ARM, ROCKER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 2 left!

0

34

Kohler 32 411 04-S

ROD-PUSH

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 9

0

35

Kohler 32 326 07-S

FUEL PUMP HOSE W/CLAMP KIT (INCLUDES REF 36)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 6

0

36

Kohler 25 237 01-S

CLAMP-HOSE

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

Kohler 24 041 49-S

GASKET-EXHAUST
(Superseded to 25 041 17-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0

Kohler 24 041 49-S

GASKET-EXHAUST
(Superseded to 25 041 17-S)

Note: Not illustrated

$2.99

$

In Stock, Qty 20+

0

Kohler 24 153 27-S

O-RING

Note: Not illustrated

$3.99

$

In Stock, Qty 8

0

Kohler 24 153 27-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 8

0

Kohler 32 755 03-S

CYLINDER HEAD HARDWARE KIT

Note: Not illustrated

$69.99

$

In Stock, only 1 left!

0

Kohler 32 755 03-S

CYLINDER HEAD HARDWARE KIT

Note: Obtain parts from www.kohlerplus.com

$69.99

$

In Stock, only 1 left!

0
