74373 (Z 5030) - Toro 50" TimeCutter Zero-Turn Mower (SN: 290004013 - 290999999) (2009) FRAME & CASTOR WHEEL ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

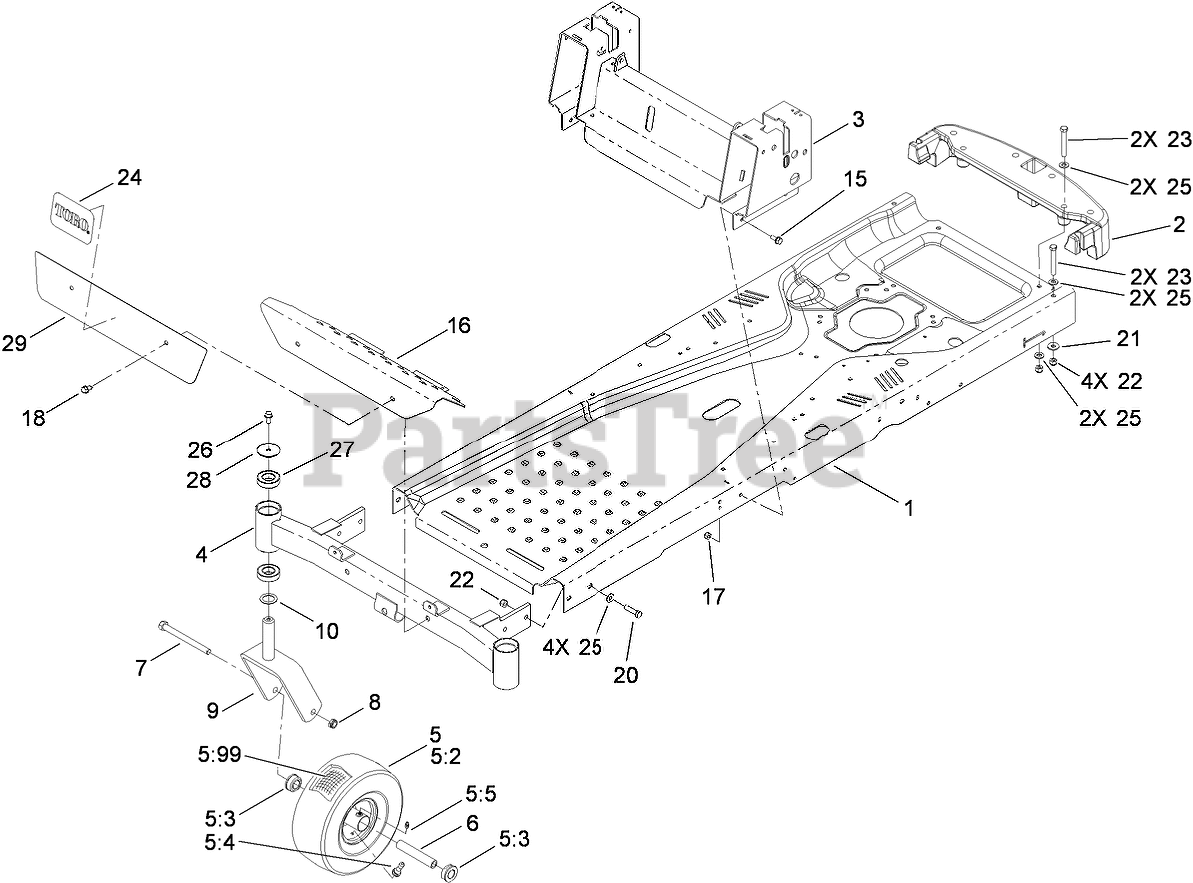

FRAME & CASTOR WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 115-2464-01

FRAME

$878.99

$

Usually ships in 3-6 days

0

2

Toro 110-6899-03

BUMPER-REAR

$231.99

$

Usually ships in 3-6 days

0

3

Toro 115-5041-03

SEAT PIVOT/CONTROL ASM

$

$

Not available

4

Toro 117-1160-01

FRONT AXLE ASM

$

$

Not available

5

Toro 115-2554

TIRE and Wheel ASM (Kenda)

$209.99

$

In Stock, Qty 8

0

5:2

Toro 115-2557

TIRE-SMOOTH

$95.99

$

Usually ships in 3-6 days

0

5:3

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

5:4

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 12

0

5:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5:99

Toro 117-1234

TUBE-INNER

$31.99

$

In Stock, only 4 left!

0

6

Toro 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 20+

0

7

Toro 325-22

SCREW-HH

$8.49

$

In Stock, Qty 13

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 110-6634-01

CASTER FORK ASM

$102.99

$

Usually ships in 3-6 days

0

10

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 12

0

15

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

16

Toro 108-7855-03

FOOTREST

$

$

Not available

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

24

Toro 105-8278

DECAL

$11.99

$

In Stock, only 1 left!

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

27

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

28

Toro 109-3724

WASHER

$3.49

$

In Stock, only 2 left!

0

29

Toro 117-1237-03

PLATE-FOOTREST

$

$

Not available
