74373 (Z 5030) - Toro 50" TimeCutter Zero-Turn Mower (SN: 290000001 - 290004012) (2009) OIL PAN & LUBRICATION ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

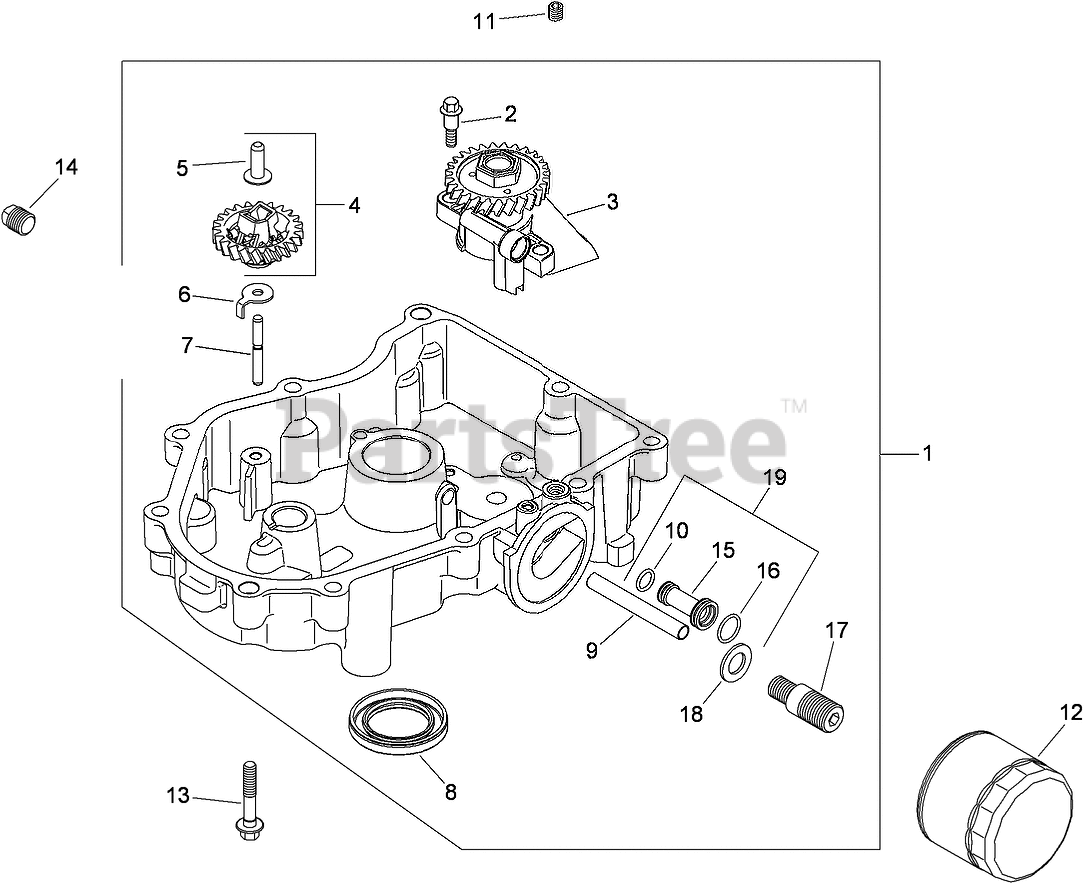

OIL PAN & LUBRICATION ASSEMBLY Parts Diagram

  • Title
1

Kohler 32 199 14-S

GOVERNOR GEAR W/PIN KIT (INCLUDES REF 2-10, 15-19)
(Superseded to 32 199 20-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 32 086 01-S

SCREW-SHOULDER, THD FRM (M6x1.0x26.5)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

3

Kohler 32 393 10-S

OIL PUMP ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 24 043 12-S

GOVERNOR GEAR W/PIN KIT (INCLUDES REF 5)

Note: Obtain parts from www.kohlerplus.com

$68.99

$

In Stock, Qty 12

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 9

0

6

Kohler 24 448 02-S

TAB-LOCKING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

8

Kohler 25 032 06-S

SEAL-OIL

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

9

Kohler 32 123 01-S

TUBE-FEED, OIL (FILTER TO PAN)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 24 153 01-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

11

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

12

Kohler 12 050 01-S

FILTER-OIL

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 20+

0

13

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

14

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

15

Kohler 32 123 06-S

TUBE-FEED, OIL

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

16

Kohler 32 153 05-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

17

Kohler 32 136 05-S

NIPPLE-FILTER, OIL

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

18

Kohler 32 468 02-S

WASHER-FLAT

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

19

Kohler 32 123 09-S

OIL FEED TUBE ASM (INCLUDES REF 10, 15, 16)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0
