74372 (Z 5020) - Toro 50" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) ENGINE CONTROL ASSEMBLY KOHLER SV720-0029 Parts Diagram

50" TimeCutter Zero-Turn Mower

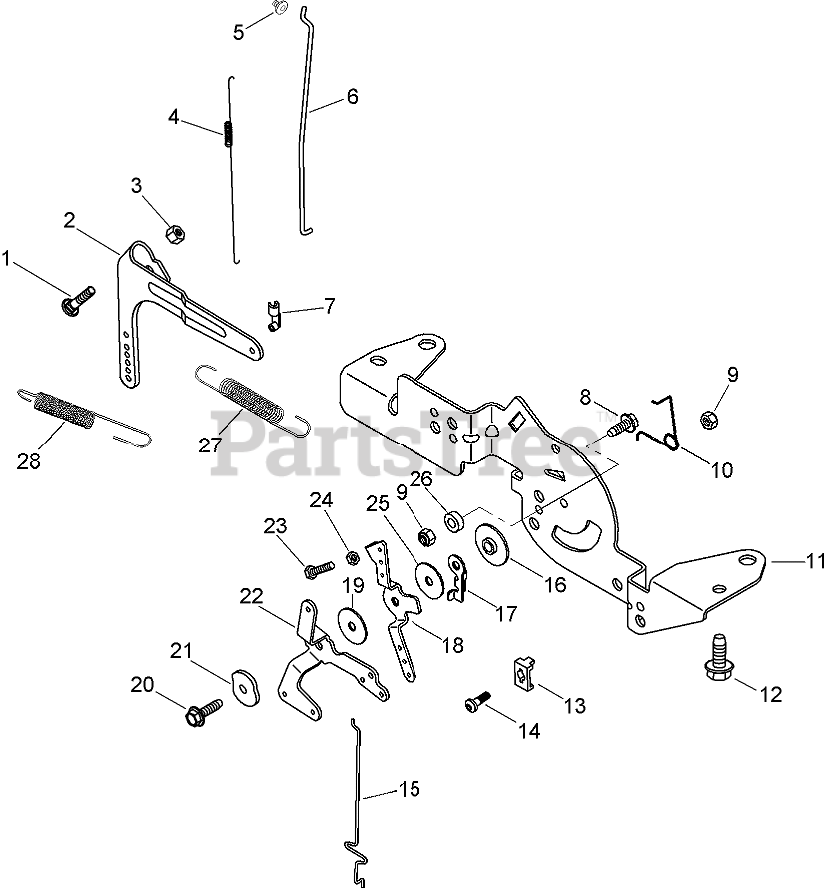

ENGINE CONTROL ASSEMBLY KOHLER SV720-0029 Parts Diagram

  • Title

1

Kohler 24 211 03-S

BOLT-SQ NECK, RD HD (M6X1.0X25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 15

0

2

Kohler 24 090 33-S

Lever-Governor
(Superseded to 24 090 69-S)

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, only 1 left!

0

3

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

4

Kohler 24 089 01-S

SPRING-LINKAGE

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 9

0

5

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 18

0

6

Kohler 24 079 04-S

LINKAGE-THROTTLE

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 5

0

7

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 2 left!

0

8

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

9

Kohler M-547050-S

NUT-LOCK (M5X.8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

10

Kohler 24 089 03-S

SPRING-RETURN, CHOKE

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 12

0

11

Kohler 24 126 161-S

BRACKET-CONTROL
(Superseded to 24 126 72-S)

Note: Obtain parts from www.kohlerplus.com

$43.99

$

Usually ships in 2-5 days

0

12

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

13

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 5

0

14

Kohler 24 086 43-S

SCREW-LBD THD FRM (M5x0.8x16)
(Superseded to 25 086 405-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

15

Kohler 24 079 22-S

LINKAGE-CHOKE

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, Qty 7

0

16

Kohler 24 112 27-S

CONTROL SPACER ASM

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

17

Kohler 24 090 47-S

LEVER-ACTUATOR, THROTTLE

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 11

0

18

Kohler 24 090 13-S

LEVER-CONTROL, THROTTLE

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, only 1 left!

0

19

Kohler 24 468 01-S

WASHER-FLAT (5.5MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

20

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

21

Kohler 41 468 03-S

WASHER-SPRING (1/4)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

22

Kohler 24 090 05-S

LEVER-CHOKE

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 2 left!

0

23

Kohler M-403025-S

SCREW-SLOTTED HEAD (M4X0.7X25)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 1 left!

0

24

Kohler M-446030-S

NUT (M4X0.7)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

25

Kohler 24 468 20-S

WASHER-FLAT (5 MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

26

Kohler 24 112 24-S

CONTROL SPACER ASM

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

27

Kohler 24 089 55-S

SPRING-GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

28

Kohler 24 089 18-S

SPRING-GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 10

0
