74372 (Z 5020) - Toro 50" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) 50IN DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

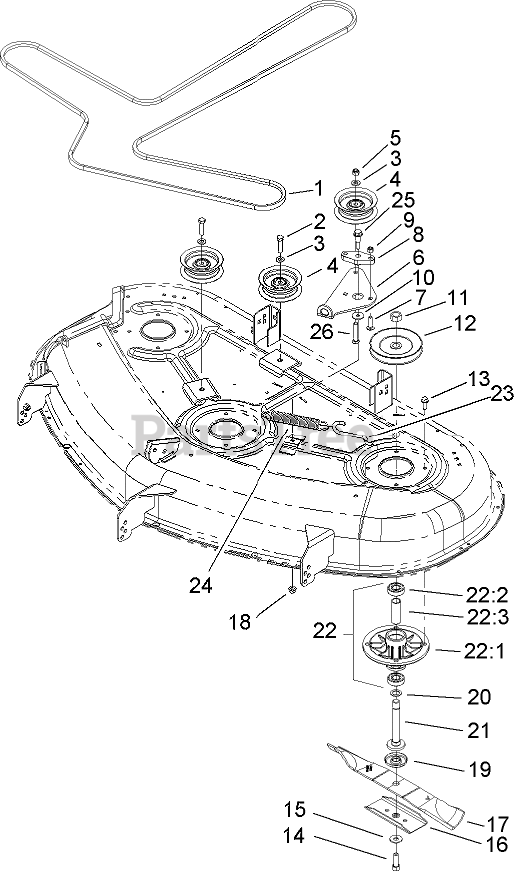

50IN DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 110-6892

V-BELT

$71.99

$

In Stock, Qty 20+

0

2

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 110-6867-03

ARM-IDLER
(Superseded to 115-2499)

$58.99

$

In Stock, Qty 6

0

7

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 108-7881

BUSHING-PIVOT
(Superseded to 115-2499)

$58.99

$

In Stock, Qty 6

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

11

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

12

Toro 110-6865

PULLEY
(Superseded to 125-5575)

$62.99

$

In Stock, Qty 19

0

13

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

15

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Toro 106-2248-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 20+

0

17

Toro 110-6837-03

BLADE-17.5 INCH, HIGH LIFT

$29.99

$

In Stock, Qty 20+

0

18

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

19

Toro 80-4360

SHIELD-BEARING

$20.99

$

In Stock, Qty 20+

0

20

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 20+

0

21

Toro 110-6866

SHAFT-SPINDLE
(Superseded to 117-1192)

$47.99

$

In Stock, Qty 20+

0

22

Spindle ASM

Note: Not serviced separately

$

$

Not available

22:1

Toro 88-4510

HOUSING-SPINDLE

$93.99

$

In Stock, Qty 20+

0

22:2

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

22:3

Toro 62-3661

SPACER

$16.99

$

In Stock, Qty 20+

0

23

Toro 112-3973

HOOK-RETURN, SPRING
(Superseded to 138-7266)

$5.49

$

In Stock, Qty 17

0

24

Toro 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, Qty 20+

0

25

Toro 110-6897

BOLT-SHOULDER
(Superseded to 115-2499)

$58.99

$

In Stock, Qty 6

0

26

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
